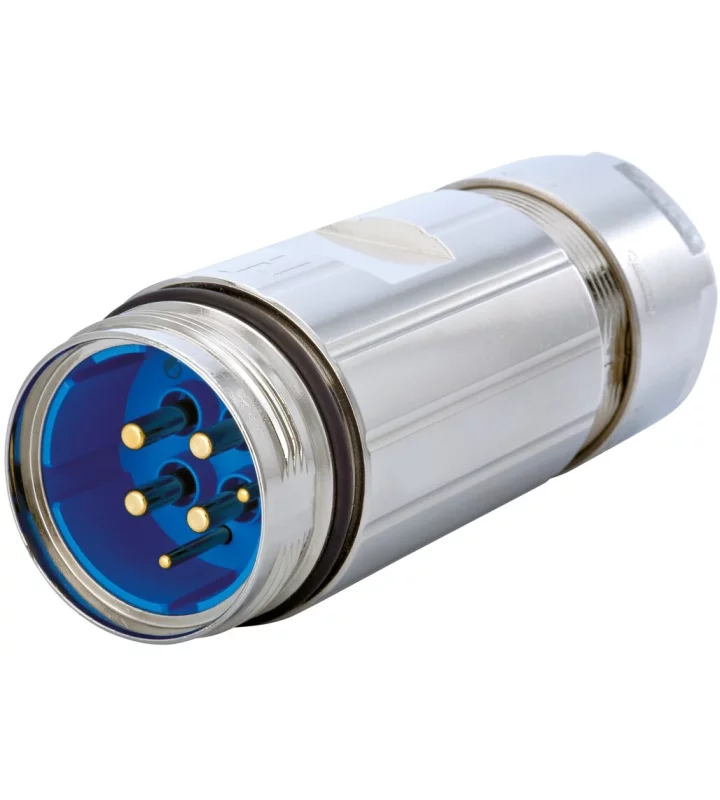

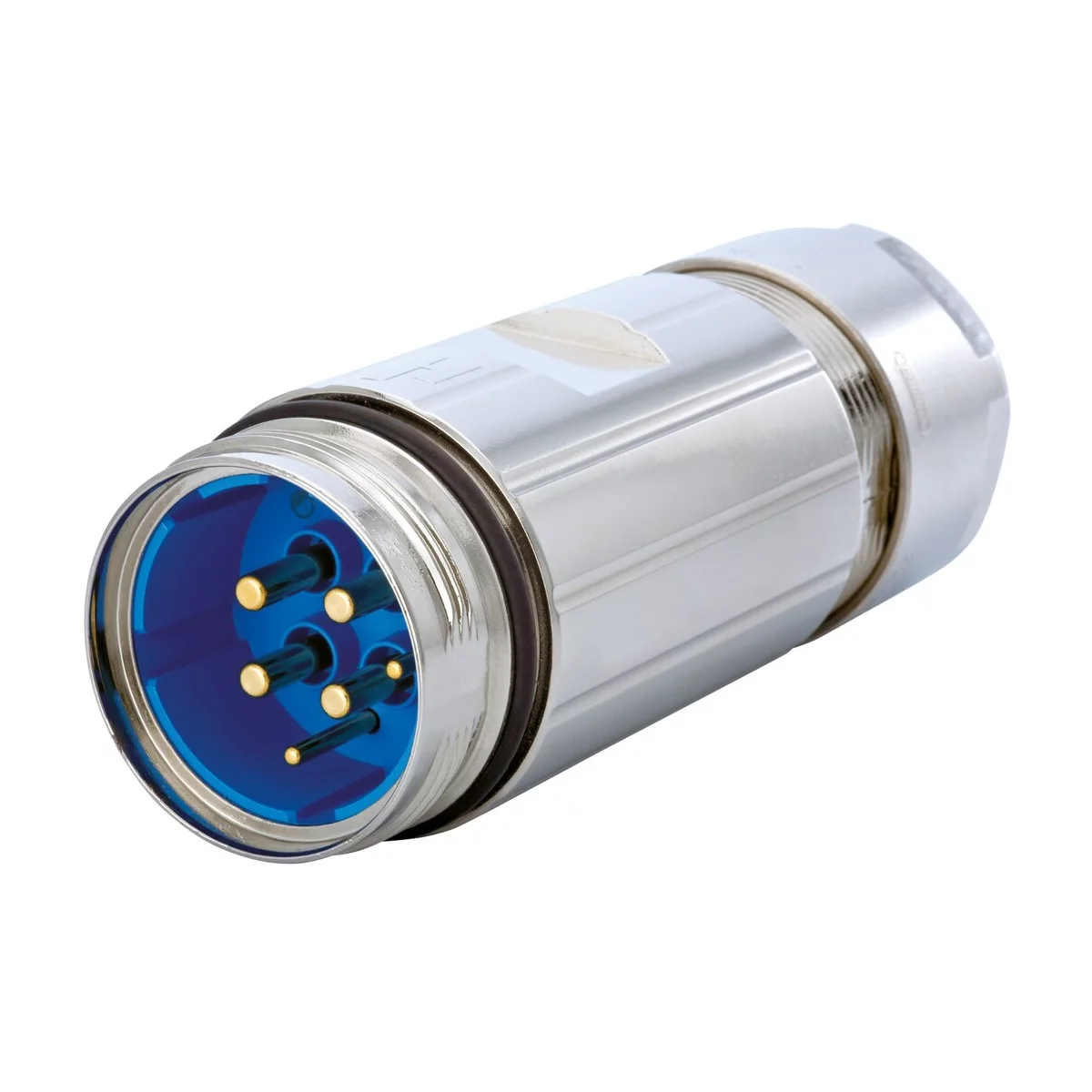

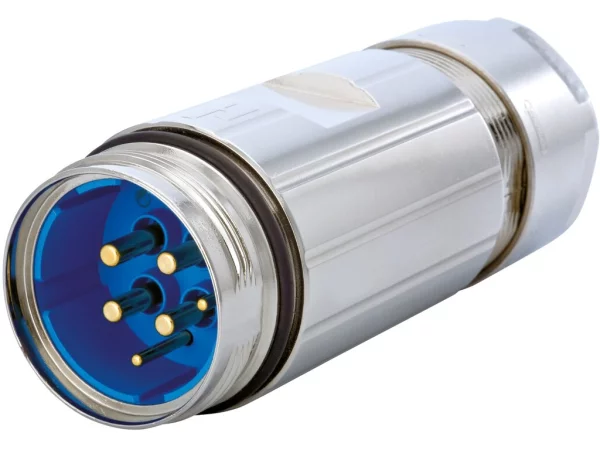

Straight Connector, Male Thread
2+3+PE, insert for pins, power
7.720.723.000
Continue assembling your connector
Add the desired contacts and accessories to fully configure your connector.
Specifications
General Characteristics
| Number of contacts | 6 mixed layout |
|---|---|
| Gender of required insert | Male |
| Connector diameter | 46 mm |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >500 |
| Terminal type | Crimp |
| Cable diameter | 17-24 mm |
| Wire section (a) | 1-4 mm |
| Wire section (b) | 1,5-16 mm |
| Crimp contacts (to be ordered separately) | 2x2mm & 4x3,6mm |
| Contact diameter (a) | 2 |
| Contact diameter (b) | 3.6 |
Electrical parameters
| Nominal current (a) | 28 A |
|---|---|
| Nominal current (b) | 55 A |
| Insulation resistance | > 10¹³ |
| Nominal voltage (degree of pollution 3) (a) | 300 V |
| Nominal voltage (degree of pollution 3) (b) | 600 V |
| Test voltage (a) | 2500 V |
| Test voltage (b) | 4000 V |
| Max. contact resistance (a) | 3 mΩ |
| Max. contact resistance (b) | 1 mΩ |
Material
| Housing material | Copper-Zinc alloy/ Die casting |
|---|---|
| Housing plating | Nickel plated |
