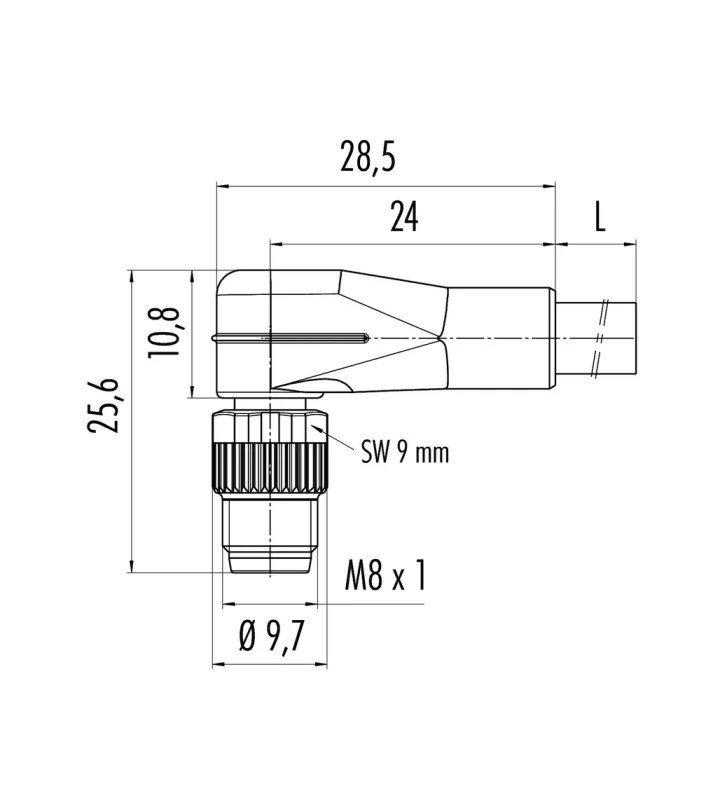

Male angled connector
Moulded, screw version, M8x1
77 3403 0000 20004 0500
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 718 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Mating cycles | >100 |
| Connector Diameter | 9.7 mm |
| Cable Length | 5 m |
| Cable diameter | 4,5 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PVC |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Variations
| Item number | Jacket material | Number of contacts | Nominal voltage | Insulation wire | Cable diameter |
|---|---|---|---|---|---|
| 77 3403 0000 20003 0500 | PVC | 3 | 60 V | PVC | 4,5 mm |
| 77 3403 0000 50003 0500 | PUR | 3 | 60 V | PVC | 4,5 mm |
| 77 3403 0000 50004 0500 | PUR | 4 | 30 V | PVC | 4,5 mm |
| 77 3403 0000 50006 0500 | PUR | 6 | 30 V | PP | 5 mm |
| 77 3403 0000 20008 0500 | PVC | 8 | 30 V | PVC | 6 mm |
| 77 3403 0000 50008 0500 | PUR | 8 | 30 V | PP | 6 mm |
