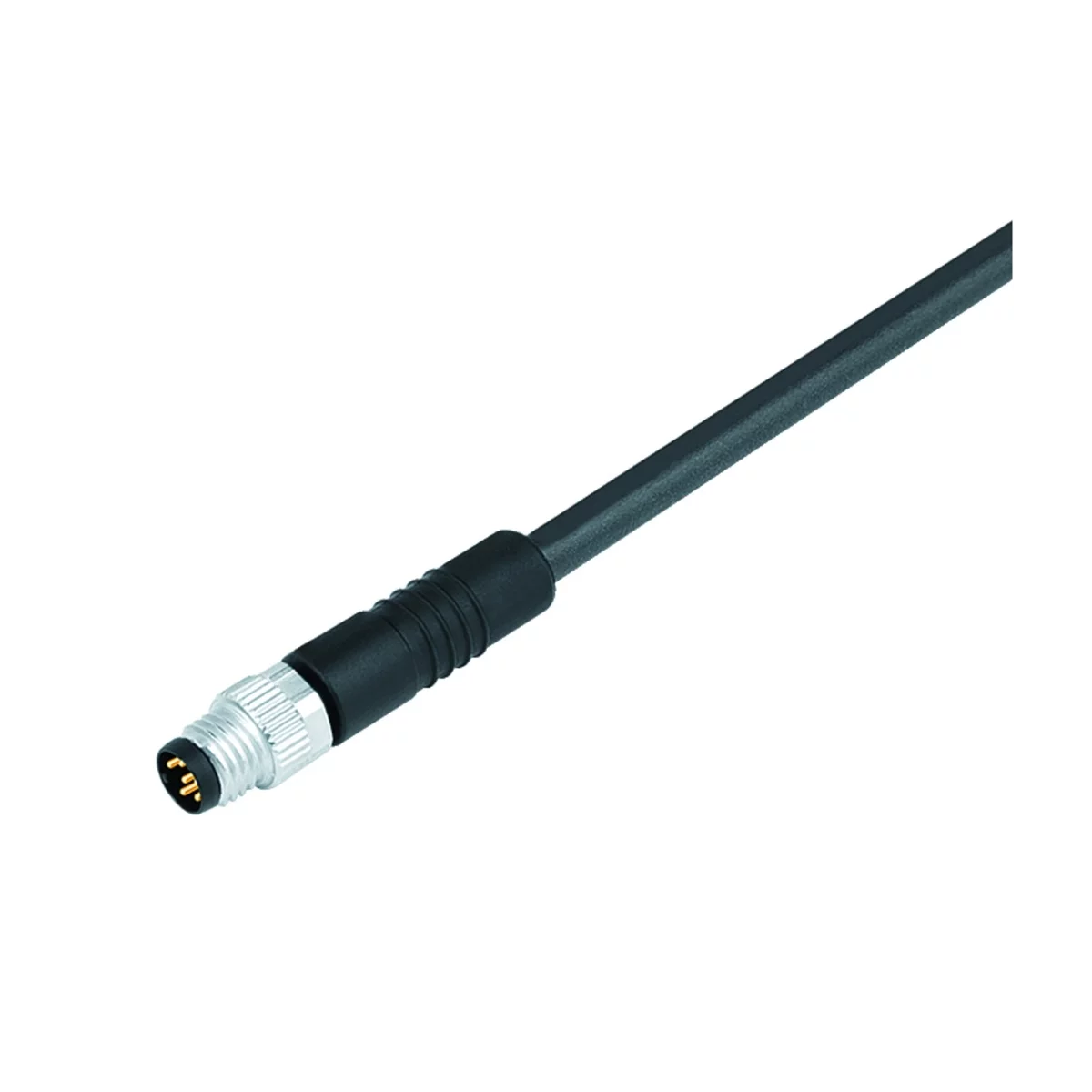

Male cable connector
Moulded, screw version, M8x1
77 3405 0000 50008 0200
Specifications
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 718 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Mating cycles | >100 |
| Connector Diameter | 9.7 mm |
| Cable Length | 2 m |
| Cable diameter | 6 mm |
| Wire gauge | 24 AWG |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 1.5 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | PP |
Variations
| Item number | Number of contacts | Material group | Nominal voltage | Impuls voltage | Pollution degree | Cable Length | Cable diameter | Wire gauge | Wire-section |
|---|---|---|---|---|---|---|---|---|---|
| 77 3405 0000 50003 0200 | 3 | II | 60 V | 1500 V | 3 | 2 m | 4,3 mm | 22 AWG | 0.34 mm² |
| 77 3405 0000 50003 0500 | 3 | II | 60 V | 1500 V | 3 | 5 m | 4,3 mm | 22 AWG | 0.34 mm² |
| 77 3405 0000 50004 0200 | 4 | II | 60 V | 1500 V | 3 | 2 m | 4,7 mm | 22 AWG | 0.34 mm² |
| 77 3405 0000 50004 0500 | 4 | II | 60 V | 1500 V | 3 | 5 m | 4,7 mm | 22 AWG | 0.34 mm² |
| 77 3405 0000 50005 0200 | 5 | II | 30 V | 800 V | 3 | 2 m | 4,7 mm | 22 AWG | 0.34 mm² |
| 77 3405 0000 50005 0500 | 5 | II | 30 V | 800 V | 3 | 5 m | 4,7 mm | 22 AWG | 0.34 mm² |
| 77 3405 0000 50006 0200 | 6 | II | 30 V | 800 V | 3 | 2 m | 5 mm | 24 AWG | 0.25 mm² |
| 77 3405 0000 50006 0500 | 6 | II | 30 V | 800 V | 3 | 5 m | 5 mm | 24 AWG | 0.25 mm² |
| 77 3405 0000 50008 0500 | 8 | II | 30 V | 800 V | 3 | 5 m | 6 mm | 24 AWG | 0.25 mm² |
| 77 3405 0000 50012 0200 | 8 | I | 30 V | 500 V | 2 | 2 m | 6 mm | 28 AWG | 0.09 mm² |
| 77 3405 0000 50012 0500 | 8 | I | 30 V | 500 V | 2 | 5 m | 6 mm | 28 AWG | 0.09 mm² |
