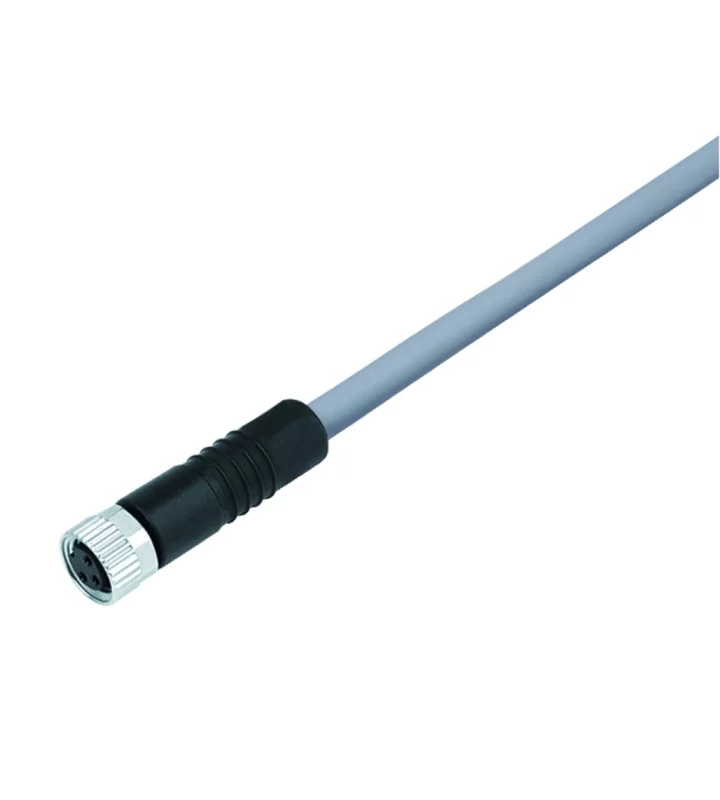

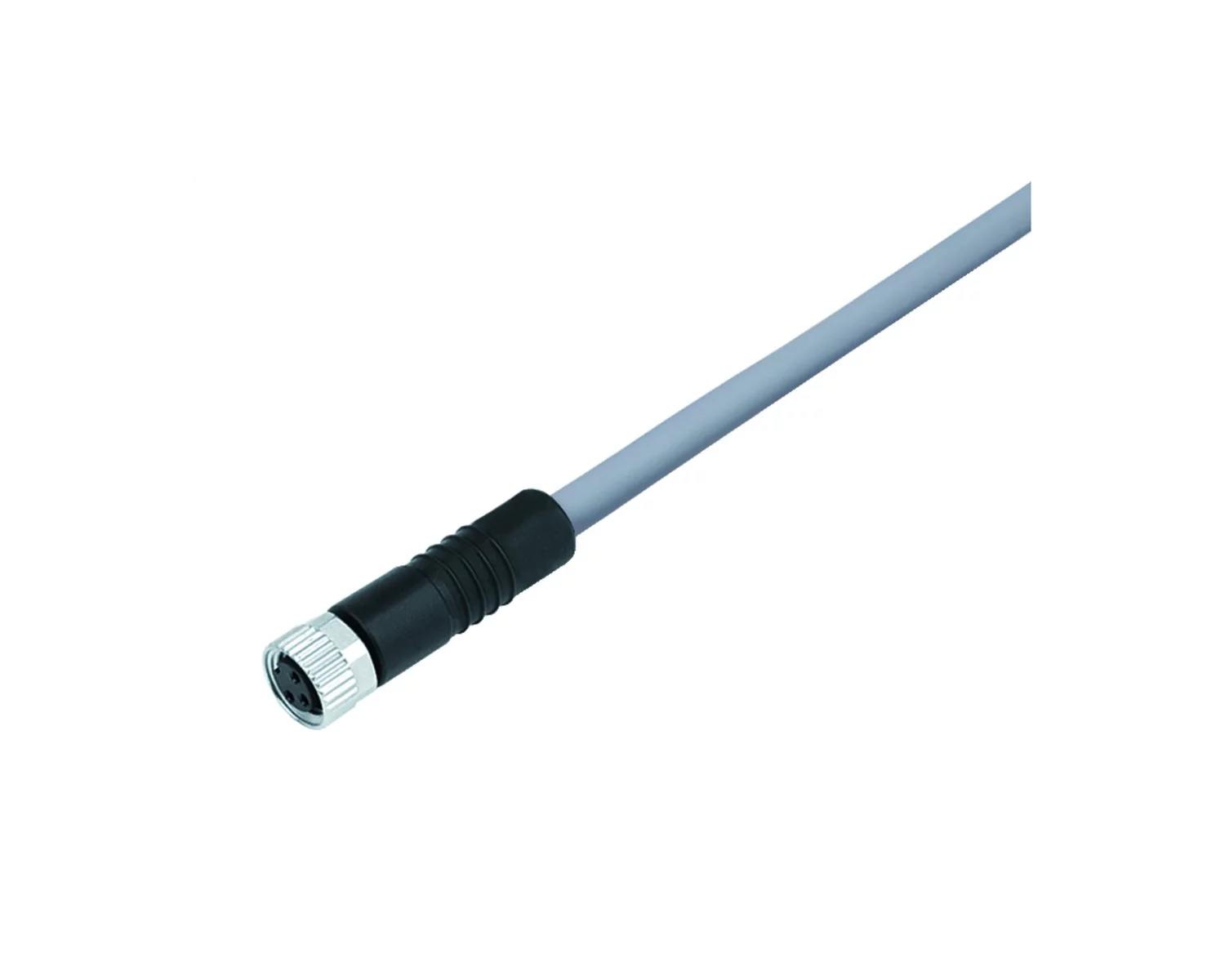

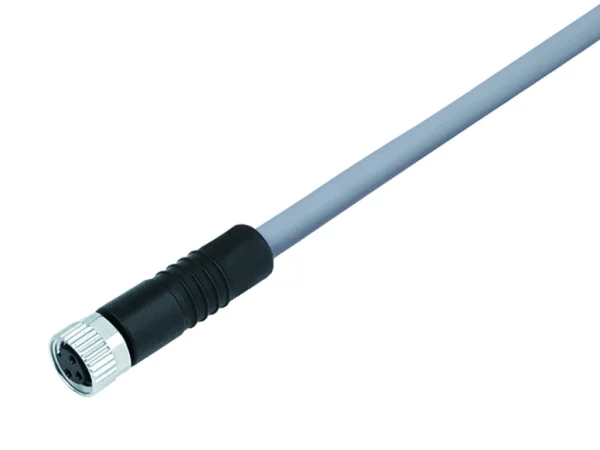

Female cable connector
Moulded, screw version, M8x1
77 3406 0000 20003 0500
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 718 |
| Gender | Female |
| Number of contacts | 3 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Mating cycles | >100 |

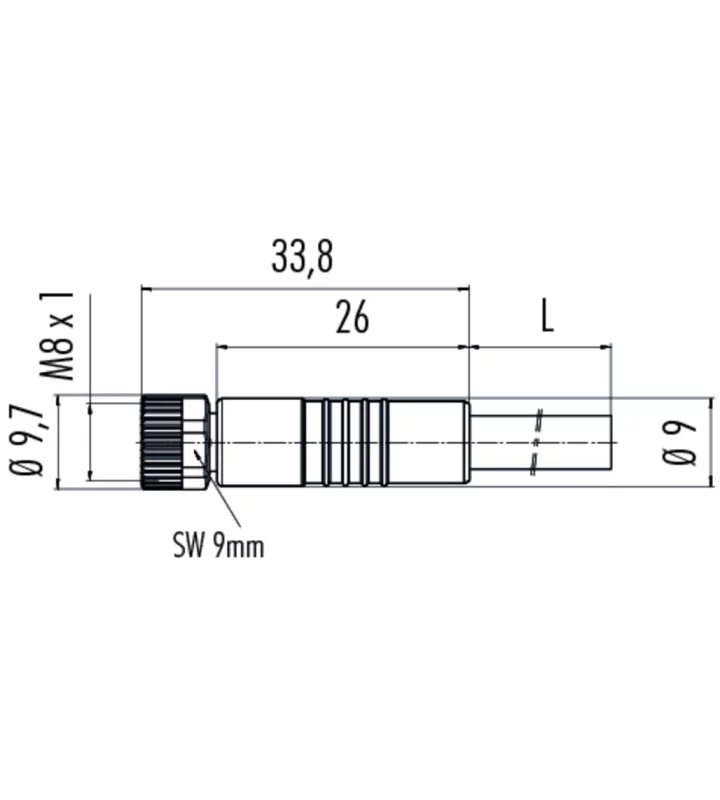

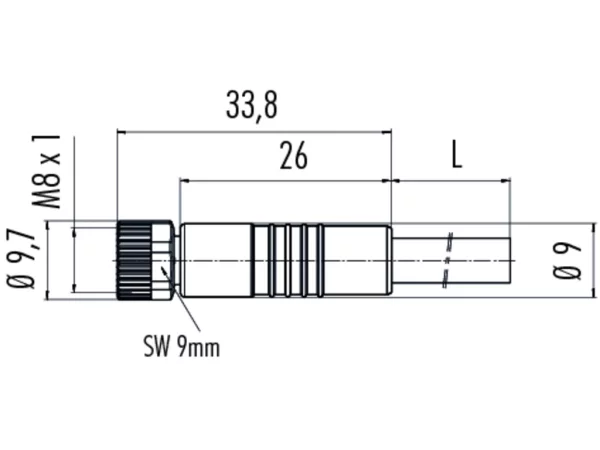

| Connector Diameter | 9.7 mm |
| Cable Length | 5 m |
| Cable diameter | 4,5 mm |
| Wire gauge | 22 AWG |
| Wire-section | 0.34 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PVC |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage | Cable Length | Cable diameter | Wire gauge | Wire-section |
|---|---|---|---|---|---|---|---|
| 77 3406 0000 20003 0200 | 3 | 60 V | 1500 V | 2 m | 4,5 mm | 22 AWG | 0.34 mm² |
| 77 3406 0000 20004 0200 | 4 | 60 V | 1500 V | 2 m | 4,8 mm | 22 AWG | 0.34 mm² |
| 77 3406 0000 20004 0500 | 4 | 60 V | 1500 V | 5 m | 4,8 mm | 22 AWG | 0.34 mm² |
| 77 3406 0000 20005 0200 | 5 | 30 V | 800 V | 2 m | 4,8 mm | 22 AWG | 0.34 mm² |
| 77 3406 0000 20005 0500 | 5 | 30 V | 800 V | 5 m | 4,8 mm | 22 AWG | 0.34 mm² |
| 77 3406 0000 20008 0200 | 8 | 30 V | 800 V | 2 m | 6 mm | 24 AWG | 0.25 mm² |
| 77 3406 0000 20008 0500 | 8 | 30 V | 800 V | 5 m | 6 mm | 24 AWG | 0.25 mm² |
