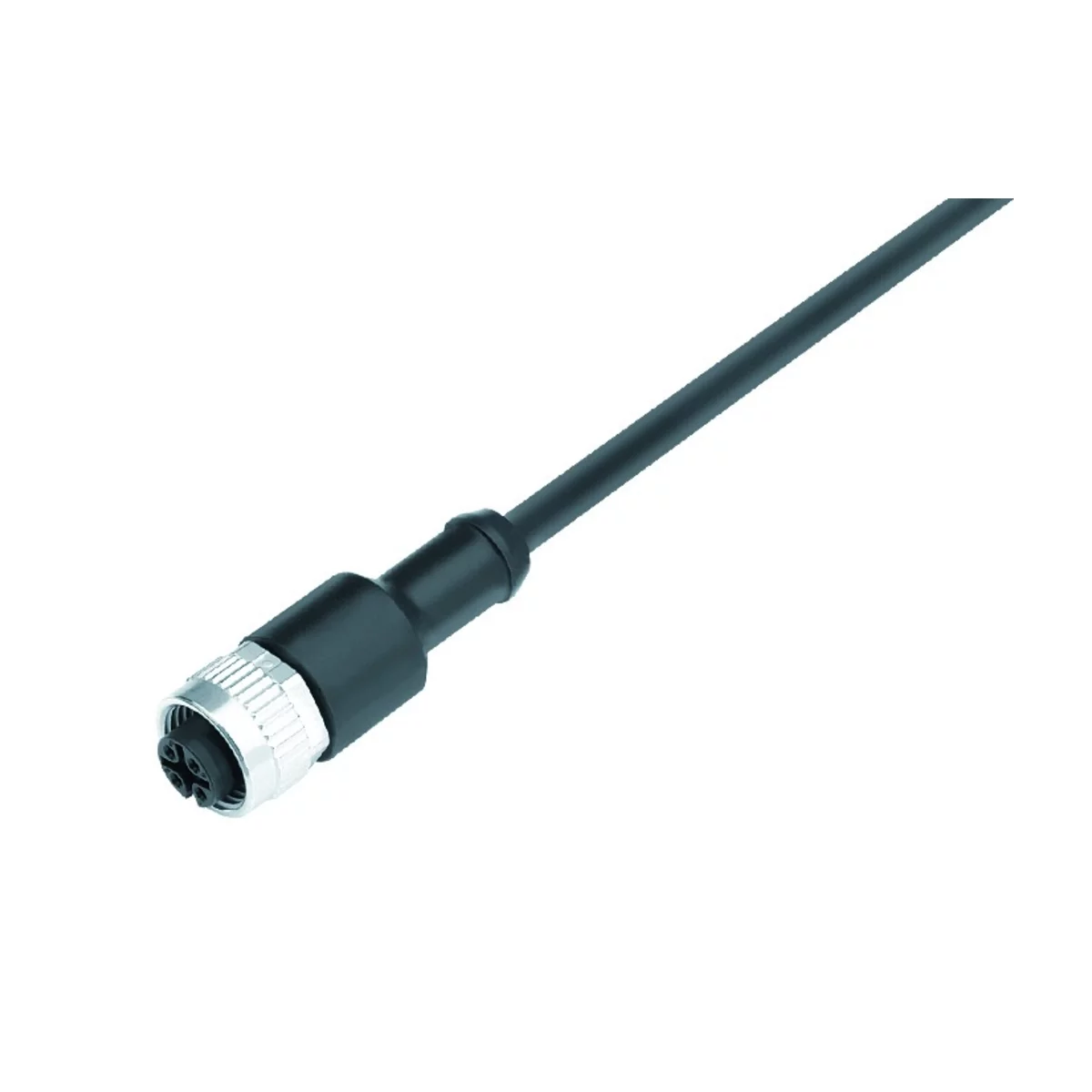

Female cable connector
Moulded
77 3430 0000 20004 0200
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 763 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |

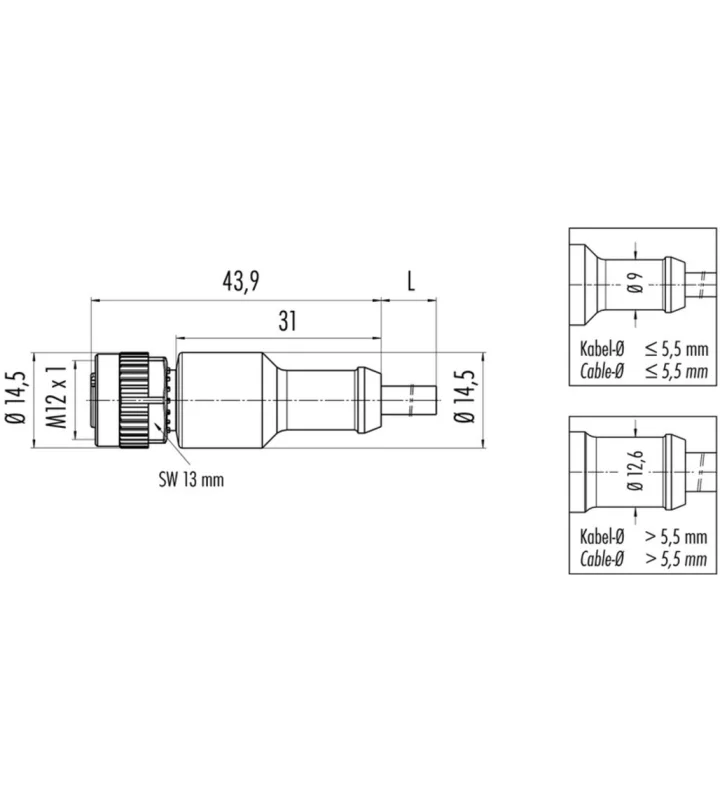

| Connector Diameter | 14.5 mm |
| Cable Length | 2 m |
| Cable diameter | 5 mm |
| Wire-section | 0.34 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PVC |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Variations
| Item number | Jacket material | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Nominal Voltage | Cable diameter | Wire-section | Remark* |
|---|---|---|---|---|---|---|---|---|---|
| 77 3430 0000 20003 0200 | PVC | 3 | 250 V | 2500 V | >200 - ≤400 V | 4,5 mm | 0.34 mm² | ||
| 77 3430 0000 50003 0200 | PUR | 3 | 250 V | 2500 V | 3 mΩ | >200 - ≤400 V | 4,5 mm | 0.34 mm² | |
| 77 3430 0000 70003 0200 | PUR | 3 | 250 V | 2500 V | 3 mΩ | >200 - ≤400 V | 4,5 mm | 0.34 mm² | |
| 77 3430 0000 50004 0200 | PUR | 4 | 250 V | 2500 V | 3 mΩ | >200 - ≤400 V | 5 mm | 0.34 mm² | |
| 77 3430 0000 20005 0200 | PVC | 5 | 125 V | 1500 V | 3 mΩ | ≤200 V | 5 mm | 0.25 mm² | |
| 77 3430 0000 50005 0200 | PUR | 5 | 125 V | 1500 V | 3 mΩ | ≤200 V | 5 mm | 0.25 mm² | |
| 77 3430 0000 50608 0200 | PUR | 8 | 60 V | 800 V | 3 mΩ | ≤200 V | 0.25 mm² | * Shielded cable, shield connected through contact 8 | |
| 77 3430 0000 50712 0200 | PUR | 12 | 30 V | 500 V | 3 mΩ | ≤200 V | 7 mm | 0.25 mm² |
