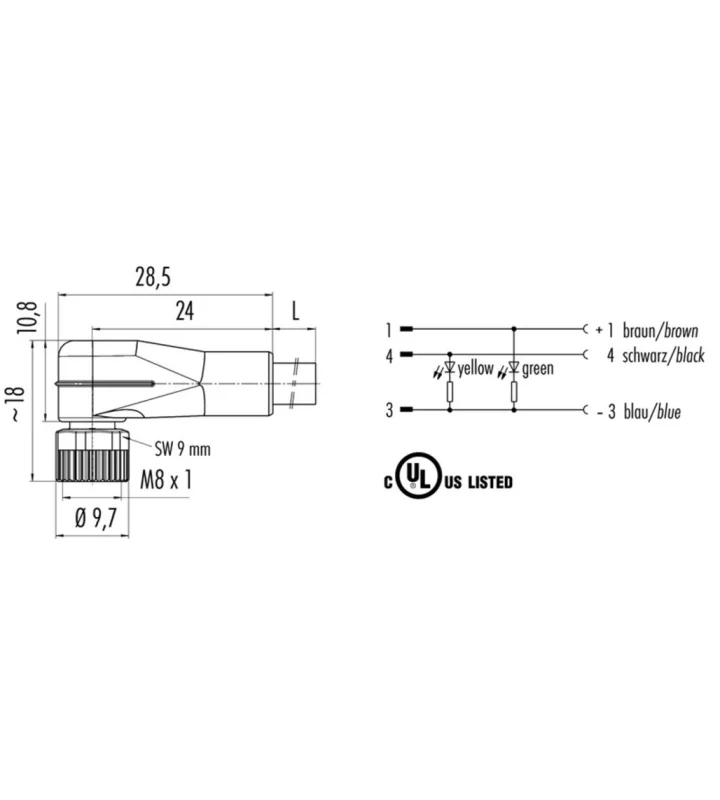

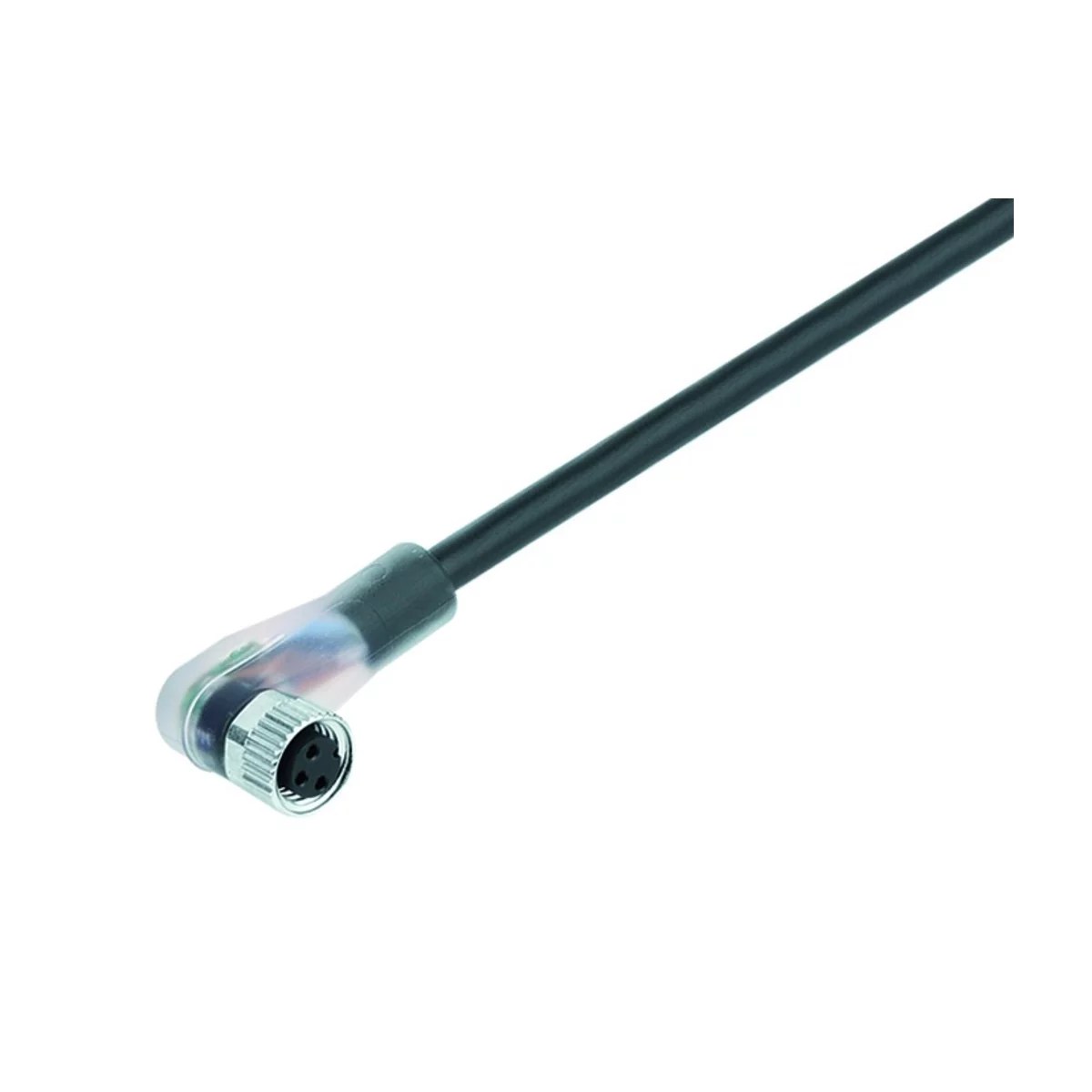

Female angled connector
Moulded, screw version, M8x1, LED
77 3608 0000 50003 0500
Specifications
General Characteristics
|
Screw size |
M8
|
|
Series |
Sensor
|
|
Subseries |
718
|
|
Gender |
Female
|
|
Number of contacts |
3
|
|
Contact terminal |
Crimp, moulded
|
|
Upper temperature |
+85 °C
|
|
Lower temperature |
-25 °C
|
|
Protection degree |
IP67
|
|
Locking system |
Screw (M8)
|
|
Mating cycles |
>100
|
|
Connector Diameter |
11.5 mm
|
|
Cable Length |
5 m
|
|
Cable diameter |
4,5 mm
|
|
Wire-section |
0.25 mm²
|
Electrical parameters
|
Nominal current |
4 A
|
|
Nominal voltage |
60 V
|
|
Impuls voltage |
800 V
|
|
Max. contact resistance |
3 mΩ
|
|
Pollution degree |
3
|
|
Overvoltage categorie |
II
|
Material
|
Jacket material |
PUR
|
|
Material group |
II
|
|
Material of insert |
PUR
|
|
Material of housing |
PUR
|
|
Material of contact |
CuZn (Brass)
|
|
Plating |
Au (Gold)
|
|
Insulation wire |
PVC
|
