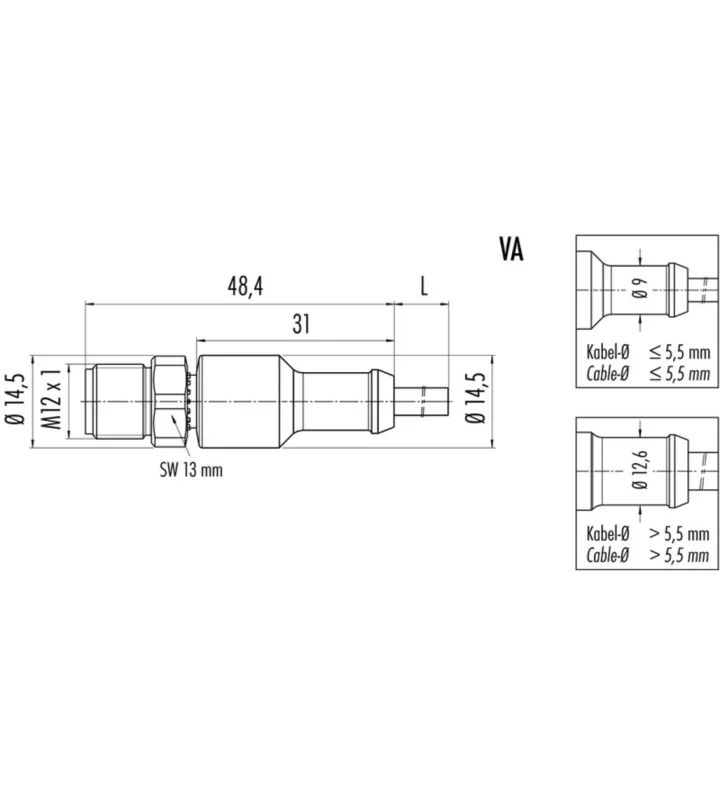

Male cable connector
Moulded, stainless steel ring nut
77 3729 0000 50004 0200
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12 |
|---|---|
| Series | Sensor |
| Subseries | 763 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 14.5 mm |
| Cable Length | 2 m |
| Cable diameter | 5 mm |
| Cable | 4 x 0,34 PUR |
| Wire-section | 0.34 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Variations
| Item number | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Nominal Voltage | Cable Length | Cable diameter | Cable | Wire-section |
|---|---|---|---|---|---|---|---|---|---|
| 77 3729 0000 50005 0200 | 5 | 125 V | Crimp, moulded | 1500 V | ≤200 V | 2 m | 5 mm | 5 x 0,25 PUR | 0.25 mm² |
| 77 3729 0000 50003 0200 | 3 | 250 V | Crimp,moulded | 2500 V | >200 - ≤400 V | 2 m | 4.5 mm | 3 x 0,34 PUR | 0.34 mm² |
| 77 3729 0000 50003 0500 | 3 | 250 V | Crimp,moulded | 2500 V | >200 - ≤400 V | 5 m | 4.5 mm | 3 x 0,34 PUR | 0.34 mm² |
| 77 3727 0000 50003 0200 | 3 | 250 V | Crimp,moulded | 2500 V | >200 - ≤400 V | 2 m | 4.5 mm | 3 x 0,34 PUR | 0.34 mm² |
| 77 3727 0000 50708 0200 | 8 | 60 V | Crimp,moulded | 800 V | ≤200 V | 2 m | 5 mm | 8 x 0,25 PUR | 0.25 mm² |
