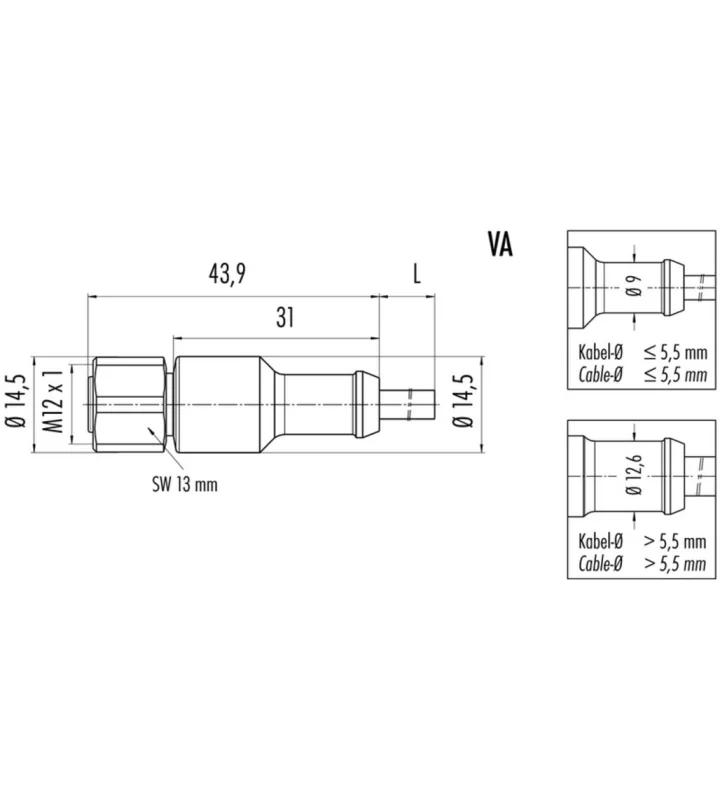

Female cable connector
Moulded, stainless steel ring nut
77 3730 0000 50708 0200
Specifications
General Characteristics
| Screw size | M12 |
|---|---|
| Series | Sensor |
| Subseries | 763 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Crimp,moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 14.5 mm |
| Cable Length | 2 m |
| Cable diameter | 5 mm |
| Cable | 8 x 0,25 PUR |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Variations
| Item number | Number of contacts | Nominal voltage | Contact terminal | Gender | Impuls voltage | Material of contact | Nominal Voltage | Cable Length | Cable diameter | Cable | Wire-section |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 77 3727 0000 50005 0500 | 5 | 125 V | Crimp, moulded | Male | 1500 V | CuZn (Brass) | ≤200 V | 5 m | 5 mm | 5 x 0,25 PUR | 0.25 mm² |
| 77 3727 0000 50003 0500 | 3 | 250 V | Crimp,moulded | Male | 2500 V | CuZn (Brass) | >200 - ≤400 V | 5 m | 4.5 mm | 3 x 0,34 PUR | 0.34 mm² |
| 77 3727 0000 50708 0500 | 8 | 60 V | Crimp,moulded | Male | 800 V | CuZn (Brass) | ≤200 V | 5 m | 5 mm | 8 x 0,25 PUR | 0.25 mm² |
| 77 3730 0000 50004 0200 | 4 | 250 V | Crimp,moulded | Female | 2500 V | CuSn (Bronze) | >200 - ≤400 V | 2 m | 5 mm | 4 x 0,34 PUR | 0.34 mm² |
| 77 3730 0000 50004 0500 | 4 | 250 V | Crimp,moulded | Female | 2500 V | CuSn (Bronze) | >200 - ≤400 V | 5 m | 5 mm | 4 x 0,34 PUR | 0.34 mm² |
| 77 3730 0000 50708 0500 | 8 | 60 V | Crimp,moulded | Female | 800 V | CuSn (Bronze) | ≤200 V | 5 m | 5 mm | 8 x 0,25 PUR | 0.25 mm² |
| 77 3734 0000 50004 0200 | 4 | 250 V | Crimp,moulded | Female | 2500 V | CuSn (Bronze) | >200 - ≤400 V | 2 m | 5 mm | 4 x 0,34 PUR | 0.34 mm² |
| 77 3734 0000 50708 0200 | 8 | 60 V | Crimp,moulded | Female | 800 V | CuSn (Bronze) | ≤200 V | 2 m | 5 mm | 8 x 0,25 PUR | 0.25 mm² |
| 77 3727 0000 50004 0500 | 4 | 250 V | Crimp, moulded | Male | 2500 V | CuZn (Brass) | >200 - ≤400 V | 5 m | 5 mm | 4 x 0,34 PUR | 0.34 mm² |
