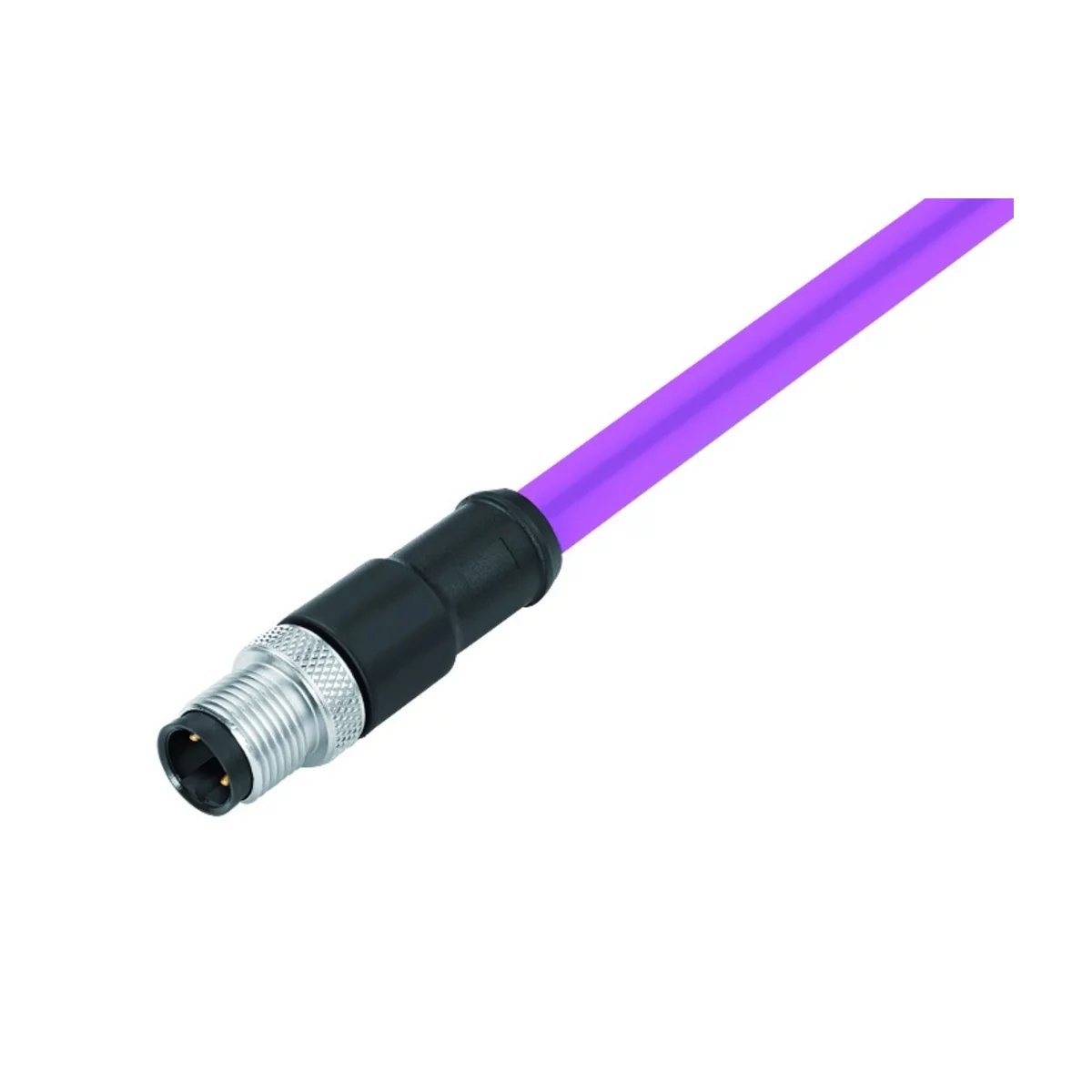

Male cable connector
PROFIBUS
UL-approval
77 4329 0000 60702 0500
Specifications
General Characteristics
| Screw size | M12-B |
|---|---|
| Series | Sensor |
| Subseries | 766 |
| Gender | Male |
| Number of contacts | 2 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-B) |
| Mating cycles | >500 |
| Connector Diameter | 14.5 mm |
| Cable Length | 5 m |
| Cable diameter | 7,8 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Cable Length |
|---|---|
| 77 4329 0000 60702 0200 | 2 m |
| 77 4329 0000 60702 1000 | 10 m |
