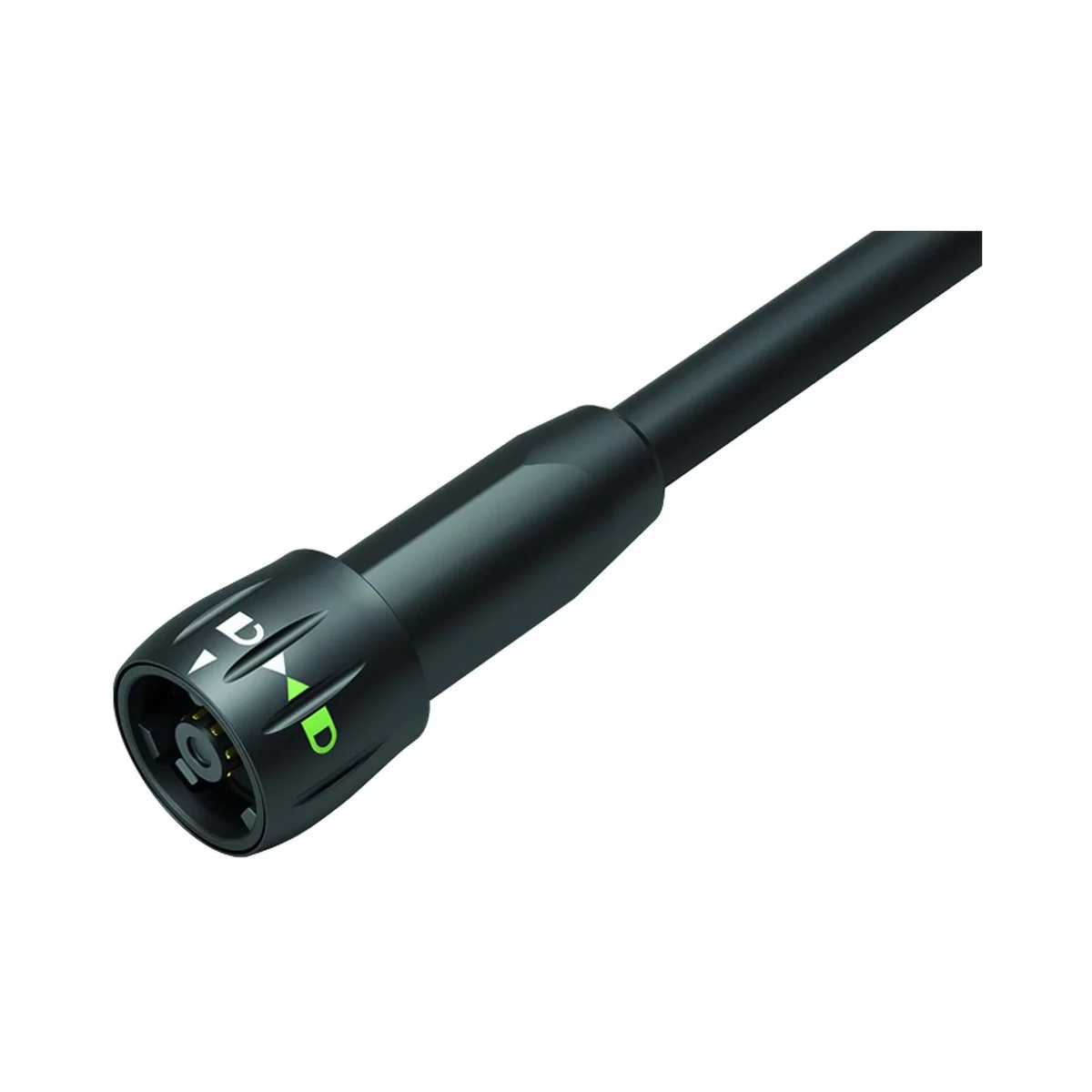

Bayonet Male cable connector
Unshielded, Solder
77 6005 0000 50008 0200
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Miniature |
|---|---|
| Subseries | 770 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -20 °C |
| Protection degree | IP67 |
| Locking system | Bayonet |
| Mating cycles | >5000 |
| Connector Diameter | 19,9 mm |
| Cable Length | 2 m |
| Cable diameter | 6 mm |
| Wire gauge | 24 AWG |
| Wire-section | 0,25 mm² |
| Radius cable fixed | ≥ 5 x Ø |
| Radius cable movable | ≥ 10 x Ø |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 175 V |
| Impuls voltage | 1750 V |
| Conductor resistance | 79 |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation single lead | PP |
Variations
| Item number | Cable Length |
|---|---|
| 77 6005 0000 50008 0500 | 5 m |
