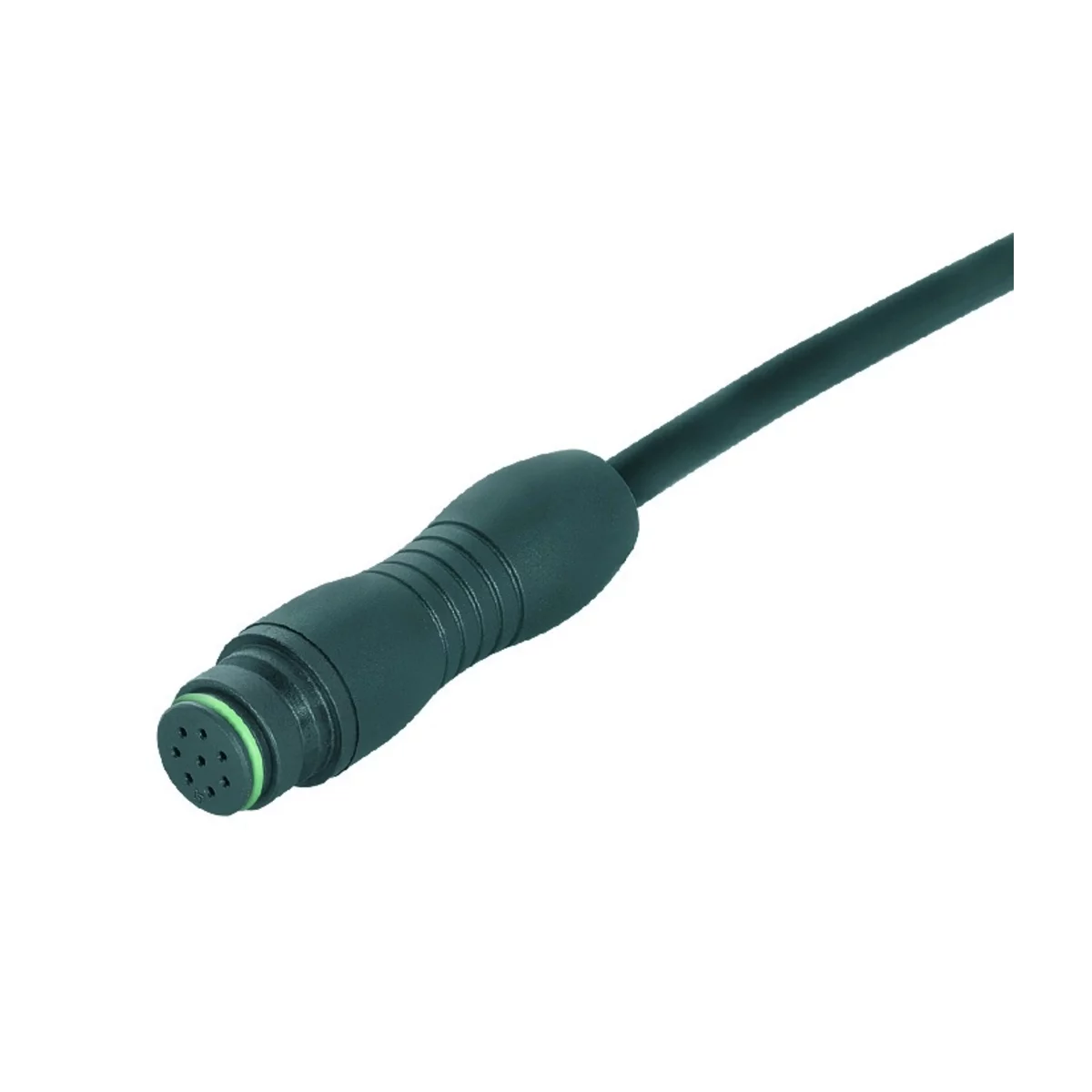

Female cable connector
77 6406 0000 50005 0200
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Miniature |
|---|---|
| Subseries | 720 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Moulded |
| Upper temperature | +70 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Snap-in |
| Mating cycles | >500 |
| Connector Diameter | 16 mm |
| Cable Length | 2 m |
| Cable diameter | 6,9 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | PUR |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Cable diameter | Wire-section |
|---|---|---|---|---|---|---|---|
| 77 6406 0000 50003 0200 | >5 - ≤10 A | 3 | 250 V | 2500 V | >200 - ≤400 V | 6,9 mm | 0.75 mm² |
| 77 6406 0000 50008 0200 | ≤5 A | 8 | 125 V | 2500 V | ≤200 V | 5,7 mm | 0.25 mm² |
| 77 6406 0000 50012 0200 | ≤5 A | 12 | 60 V | 800 V | ≤200 V | 7 mm | 0.25 mm² |
