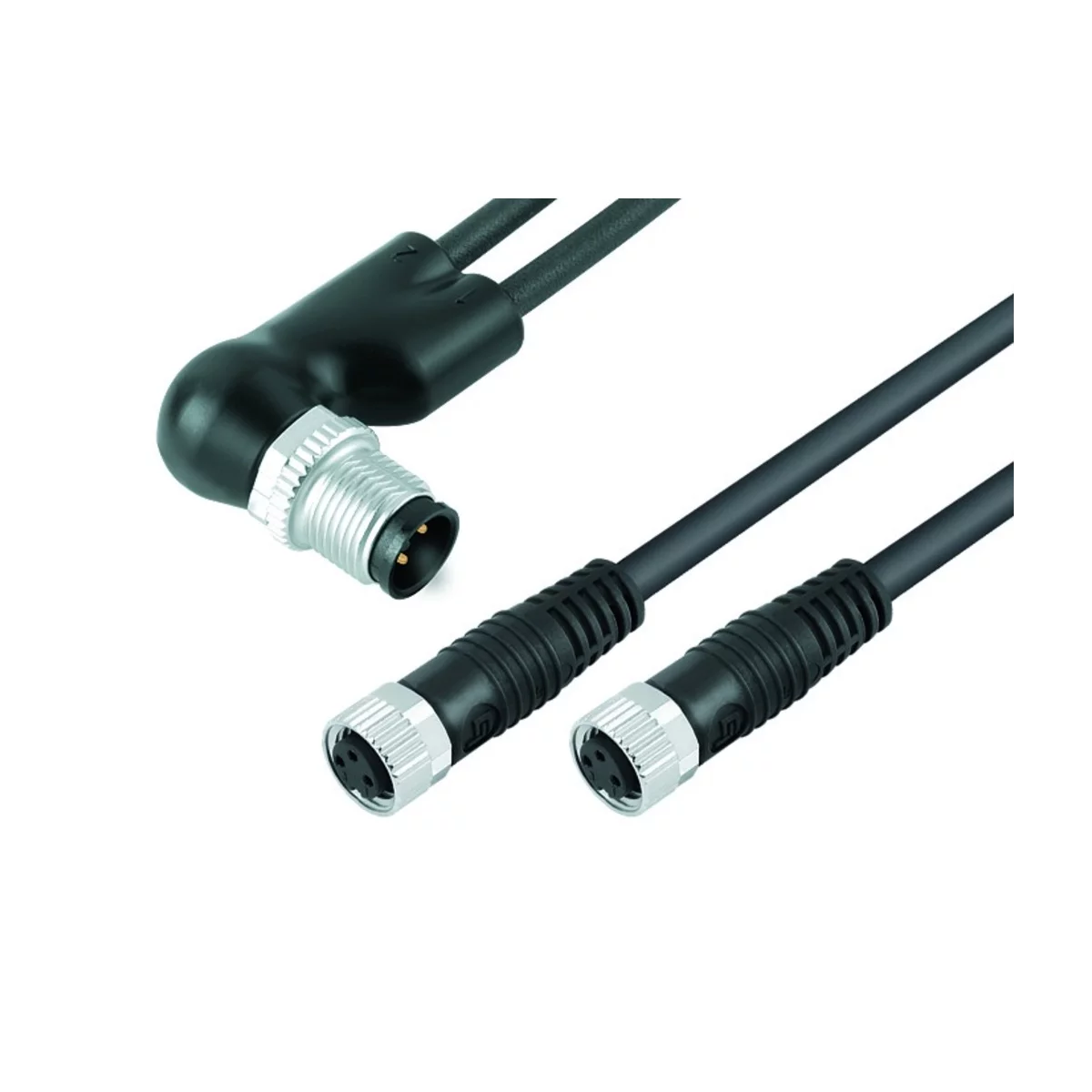

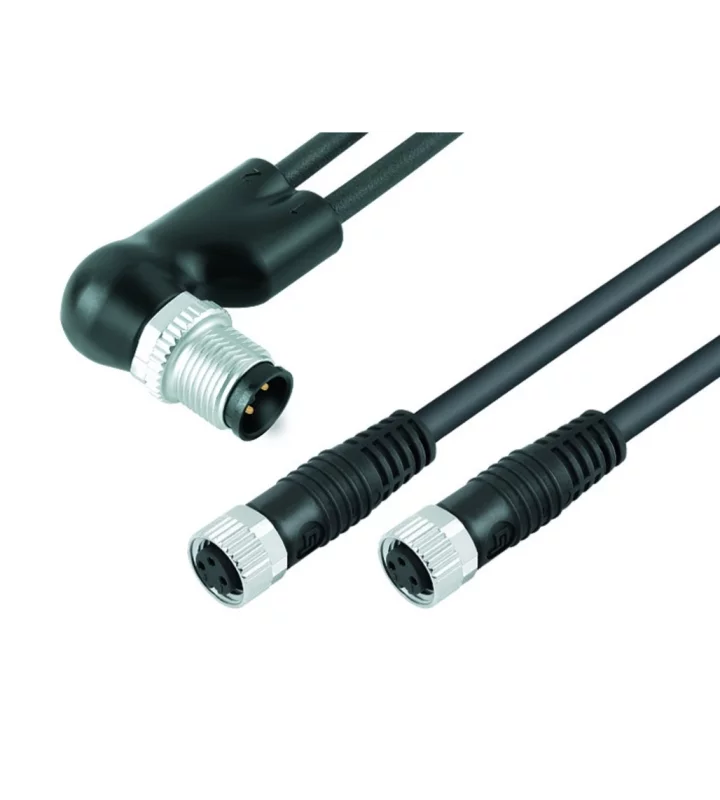

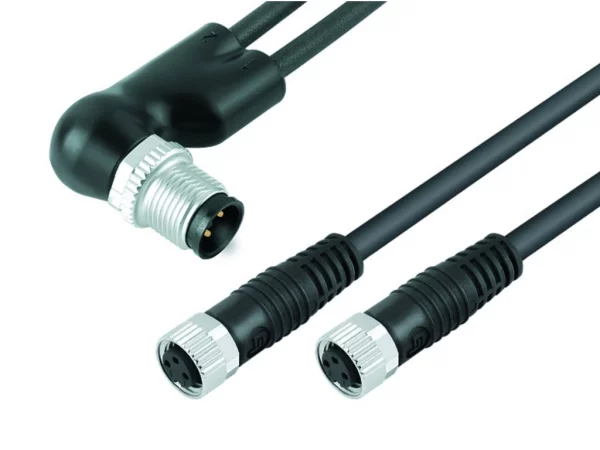

Angled duo male connector M12x1, 2 female cable connectors M8x1
77 9827 3406 50003 0200
Specifications
General Characteristics
| Screw size | M12/M8 |
|---|---|
| Series | Sensor |
| Subseries | 765 |
| Gender | Male & Female |
| Number of contacts | 4/3 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw |
| Mating cycles | >100 |

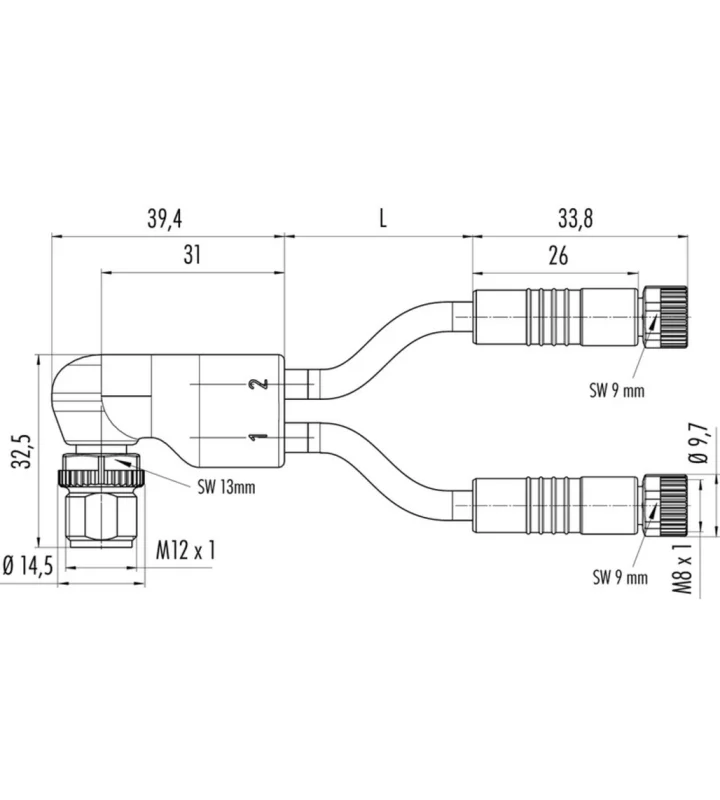

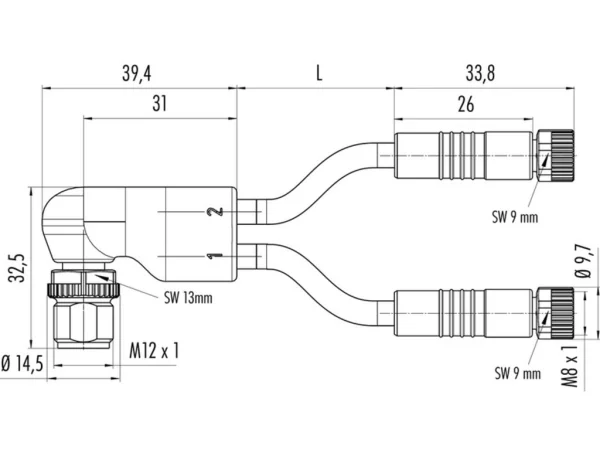

| Connector Diameter | 14,5 - 9,7 mm |
| Cable Length | 2 m |
| Cable diameter | 4,5 mm |
| Cable | 3x0,34 PUR |
| Wire-section | 0.34 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | Pin CuZn (Brass), Socket (Bronze) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
