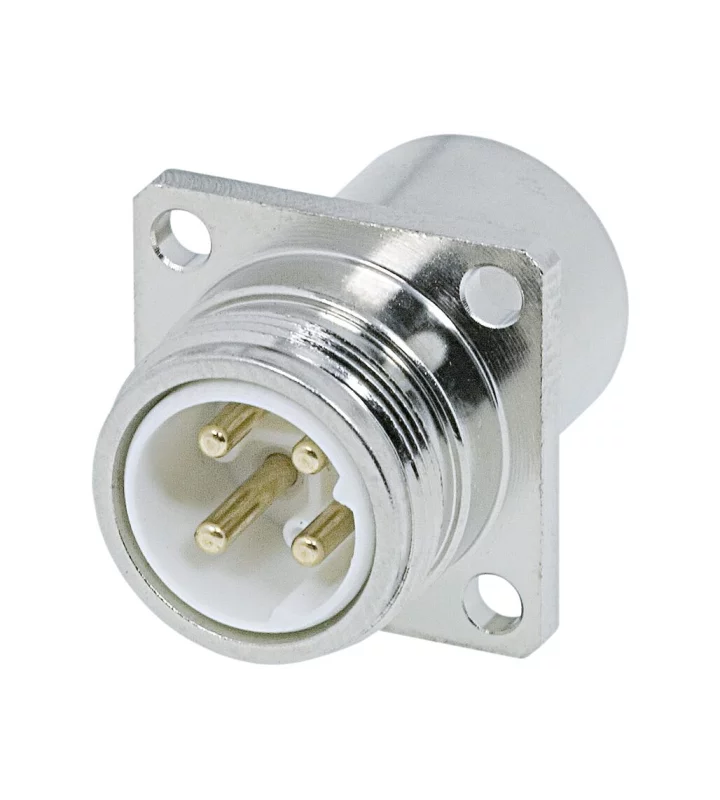

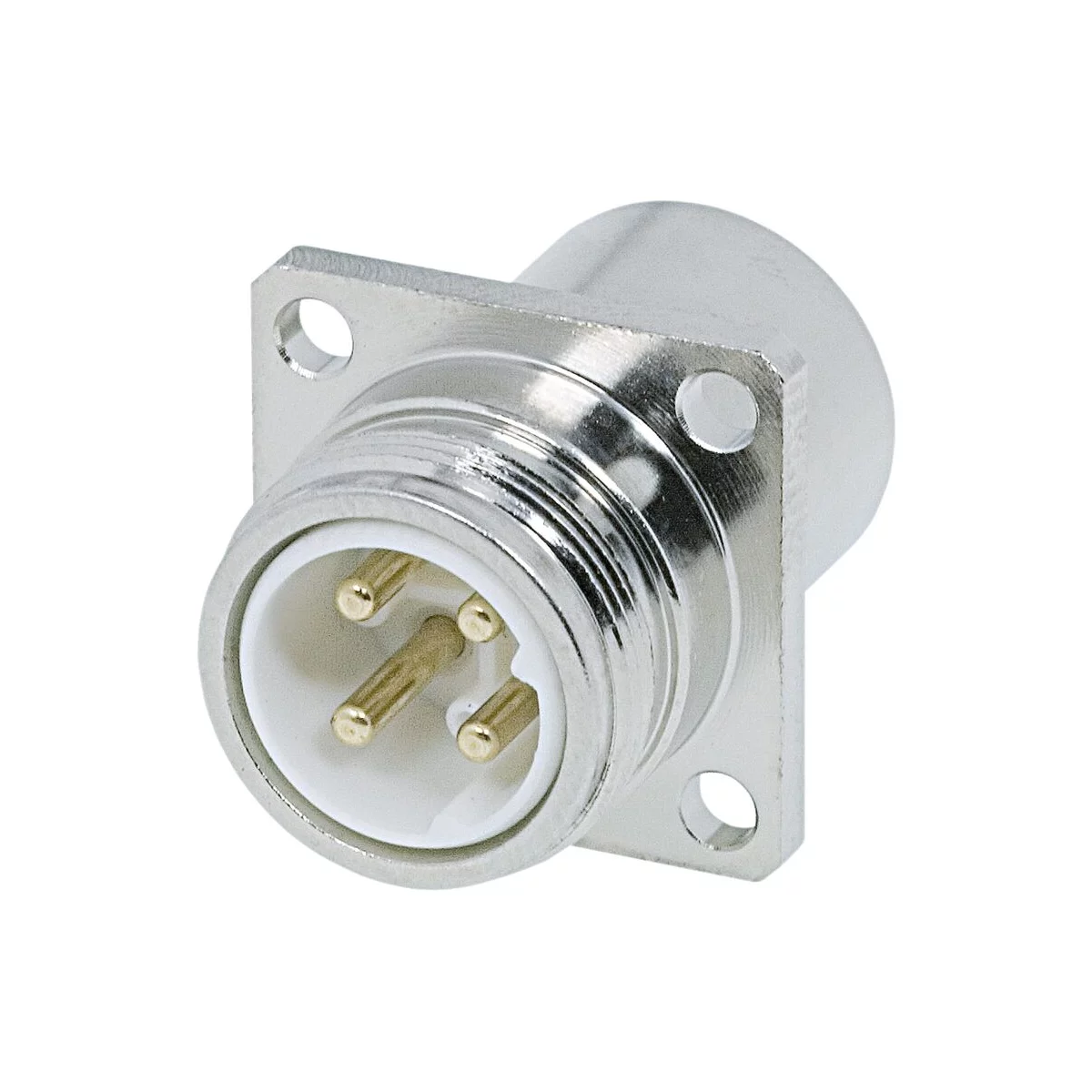

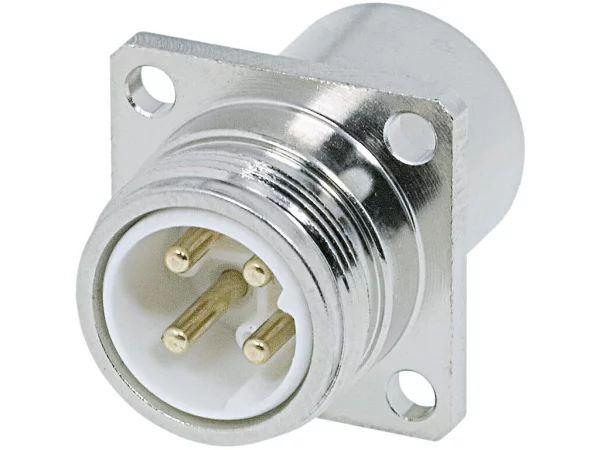

Panel Connector, Male Thread
Front mounting
short version
7.840.200.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M16 |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw/Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
Material
| Housing material | Copper-Zinc alloy, Die cast |
|---|---|
| Housing plating | Nickel plated |
Variations
| Item number | Size flange |
|---|---|
| 7.840.000.000 | 20x20 mm |
| 7.840.100.000 | 25x25 mm |
