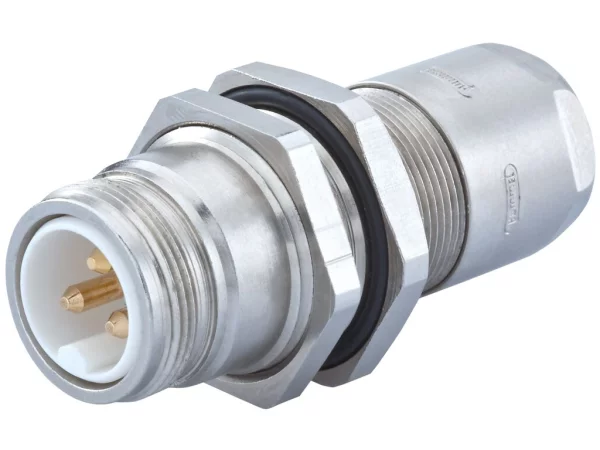

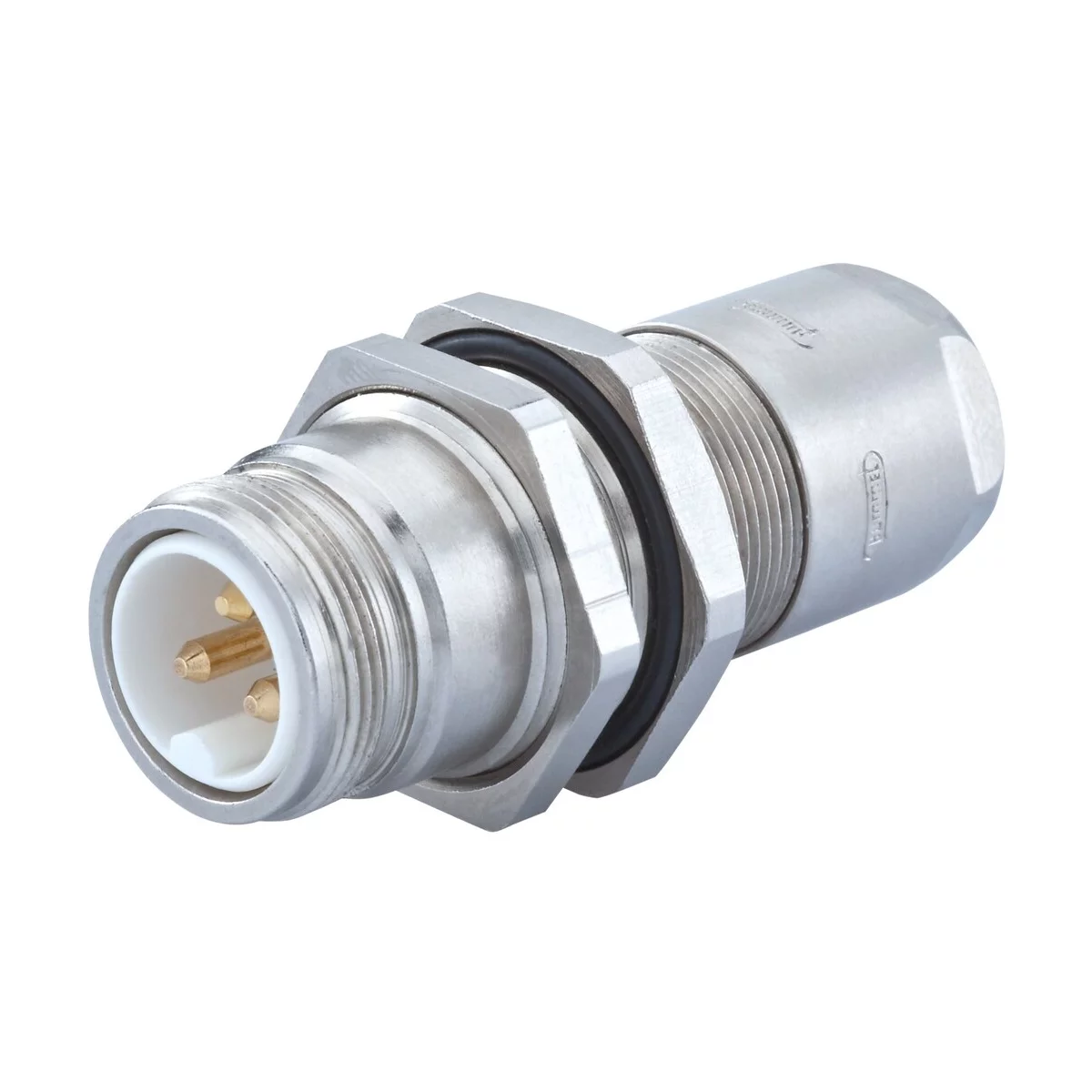

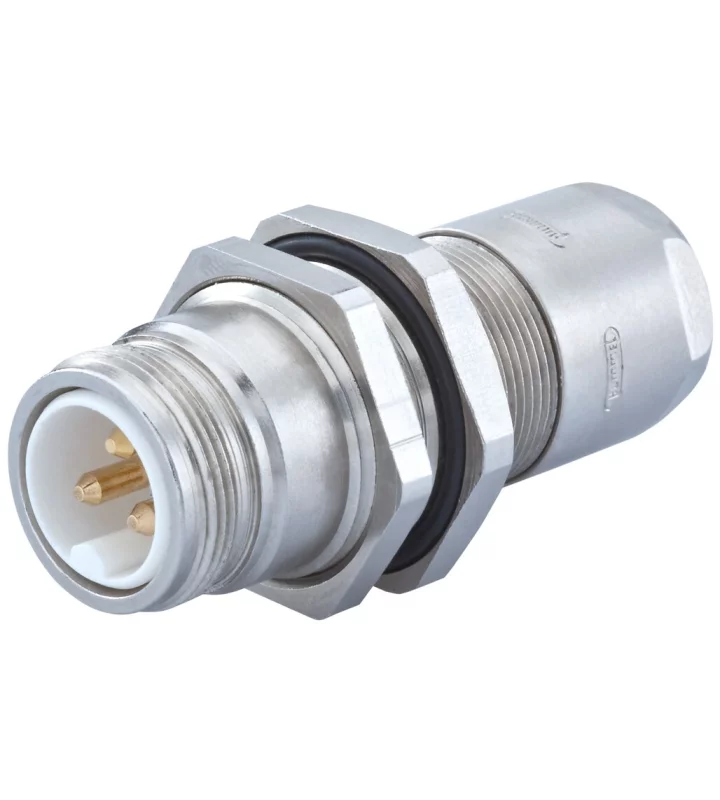

Panel Connector with built in Cable Strain Relief
Rear mounting
single hole mounted
7.852.300.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M16 |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw/Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Cable diameter | 2 - 7 mm |
| Remark 1 | Including jam nut PG11 |
Material
| Housing material | Copper-Zinc alloy, Die cast |
|---|---|
| Housing plating | Nickel plated |
Variations
| Item number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| 7.852.400.000 | 5 - 9 mm | 5 - 9 mm |
