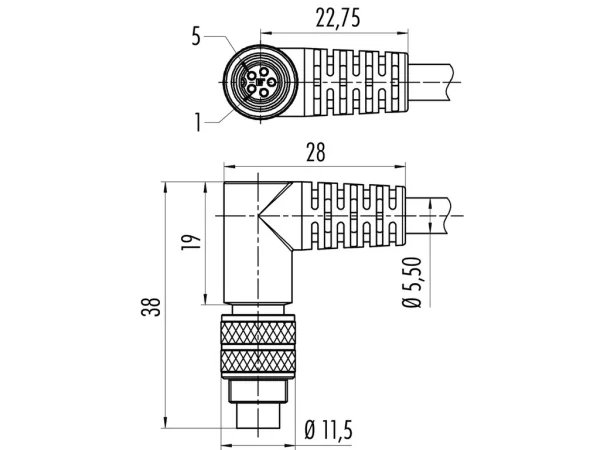

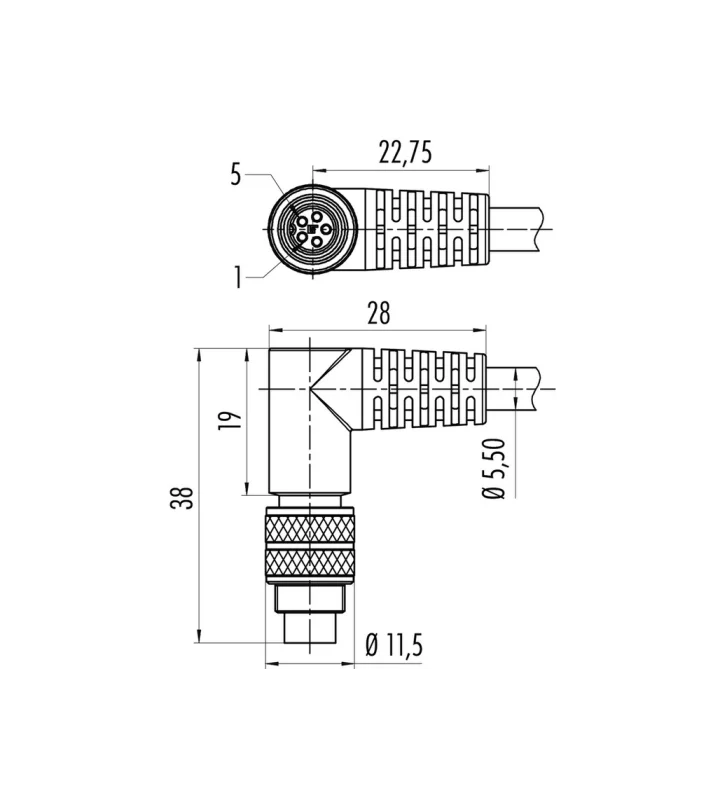

Male angled connector
Moulded, shielded
79 1425 75 08
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Subminiature |
|---|---|
| Subseries | 702 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Moulded |
| Upper temperature | +70 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M9) |
| Mating cycles | >500 |
| Connector Diameter | 11.5 mm |
| Cable Length | 5 m |
| Cable diameter | 5,3 mm |
| Wire-section | 0.14 mm² |
Electrical parameters
| Nominal current | 1 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | PUR |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Cable Length | Wire-section | Screw size |
|---|---|---|---|---|
| 79 1401 72 02 | 2 | 2 m | 0.25 mm² | M9 |
| 79 1405 72 03 | 3 | 2 m | 0.25 mm² | M9 |
| 79 1409 72 04 | 4 | 2 m | 0.25 mm² | M9 |
| 79 1413 72 05 | 5 | 2 m | 0.25 mm² | M9 |
| 79 1421 72 07 | 7 | 2 m | 0.14 mm² | M9 |
| 79 1425 72 08 | 8 | 2 m | 0.14 mm² | M9 |
| 79 1401 75 02 | 2 | 5 m | 0.25 mm² | M9 |
| 79 1405 75 03 | 3 | 5 m | 0.25 mm² | M9 |
| 79 1409 75 04 | 4 | 5 m | 0.25 mm² | M9 |
| 79 1413 75 05 | 5 | 5 m | 0.25 mm² | M9 |
| 79 1421 75 07 | 7 | 5 m | 0.14 mm² | M9 |
