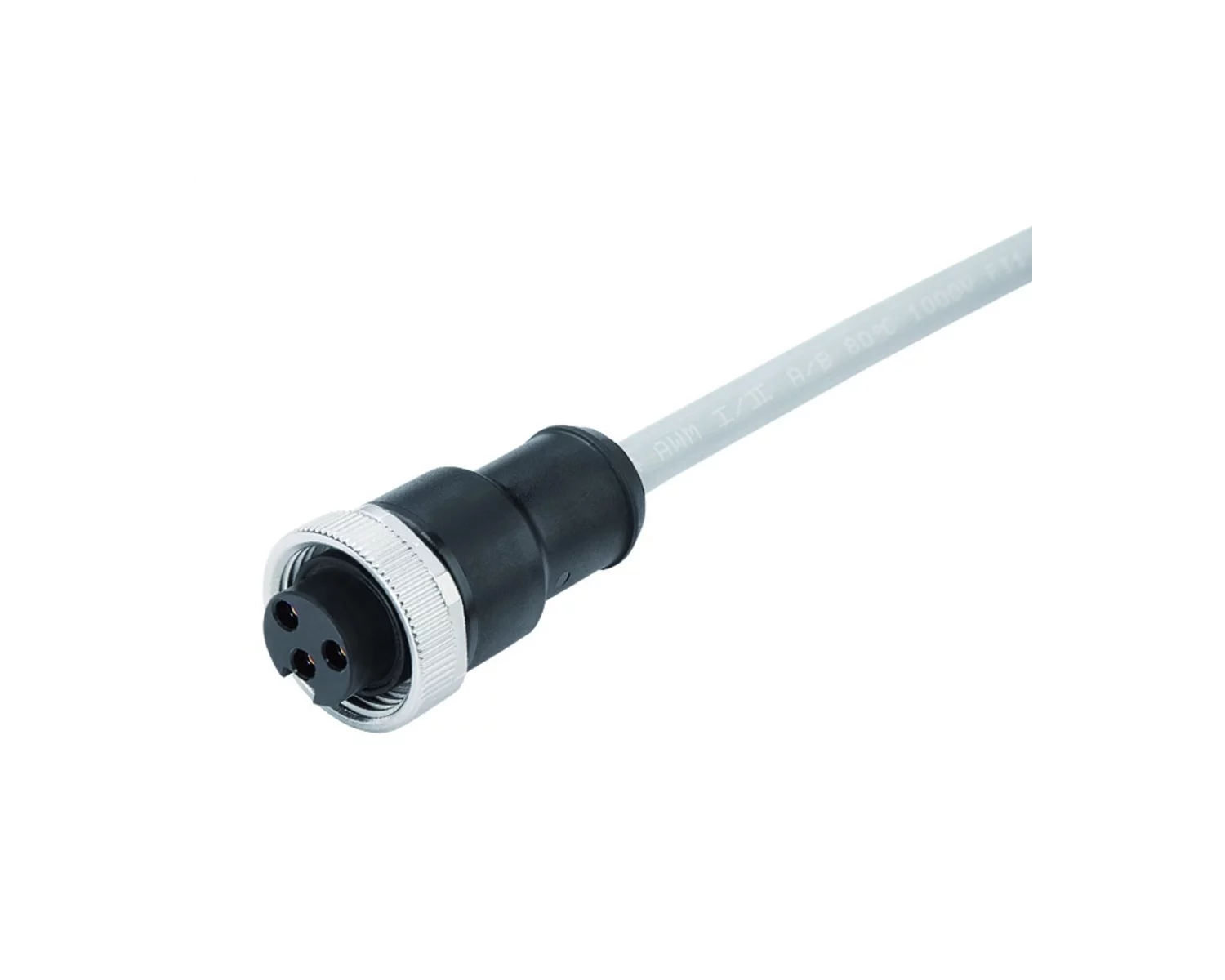

Female cable connector
79 2452 20 03
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | 7/8 |
|---|---|
| Series | Sensor |
| Subseries | 870 |
| Gender | Female |
| Number of contacts | 3 |
| Contact terminal | Crimp |
| Upper temperature | +80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw (7/8"-16 UN) |
| Mating cycles | >100 |
| Connector Diameter | 26 mm |
| Cable Length | 2 m |
| Cable diameter | 7,4 mm |
| Cable | 3 x 1,5 PUR |
| Wire-section | 1.5 mm² |
Electrical parameters
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 300 V |
| Impuls voltage | 4000 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | TPM |
Variations
| Item number | Nominal current | Number of contacts | Cable diameter | Cable |
|---|---|---|---|---|
| 79 2456 20 04 | >5 - ≤10 A | 4 | 8 mm | 4 x 1,5 PUR |
| 79 2460 20 05 | >5 - ≤10 A | 5 | 8,7 mm | 5 x 1,5 PUR |
