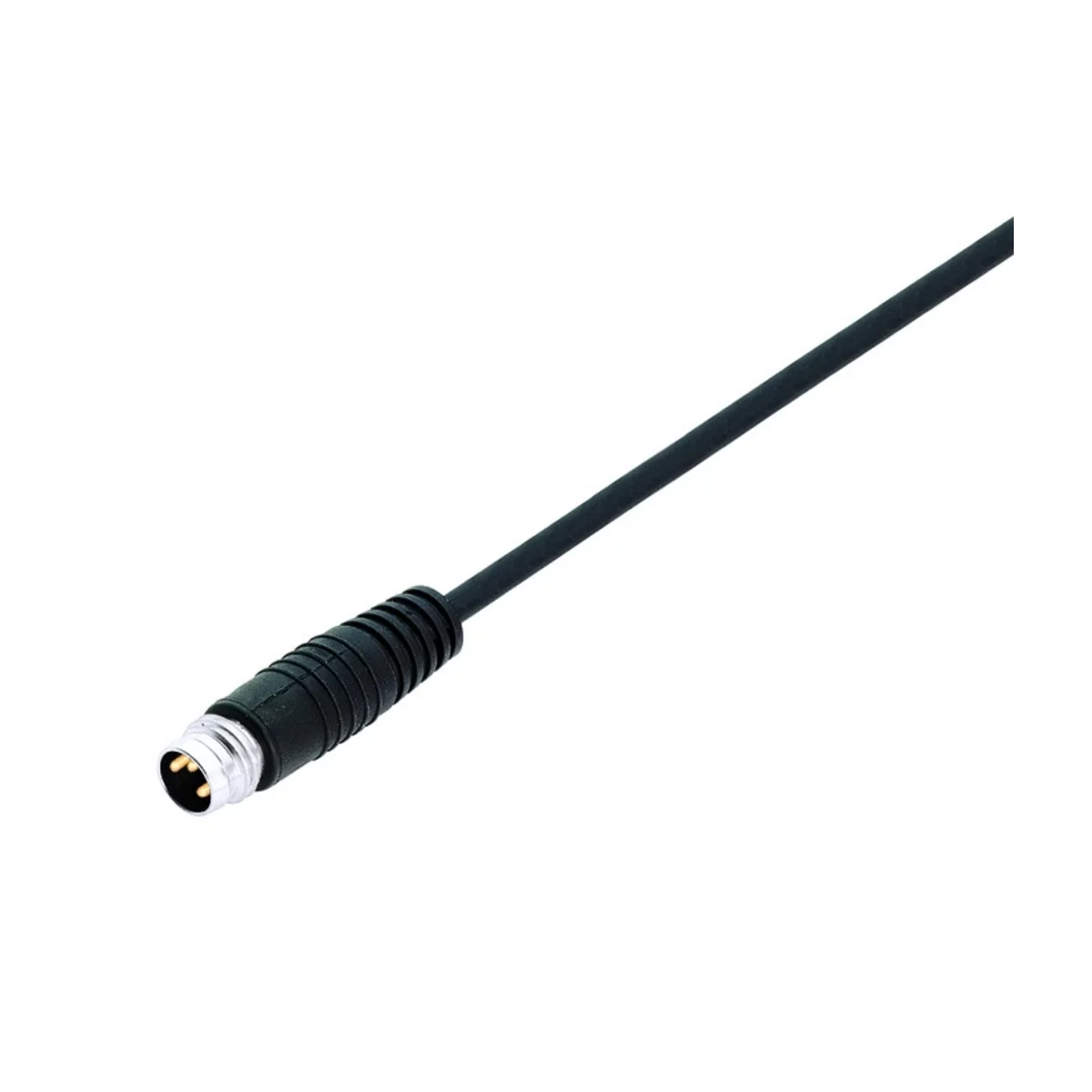

Male cable connector
Moulded, snap-in version, 8mm
79 3409 05 03
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 718 |
| Gender | Male |
| Number of contacts | 3 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +70 °C |
| Lower temperature | -25 °C |
| Protection degree | IP65 |
| Locking system | Snap-in |
| Mating cycles | >50 |
| Connector Diameter | 9 mm |
| Cable Length | 5 m |
| Cable diameter | 3 mm |
| Wire-section | 0.14 mm² |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PVC |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Variations
| Item number | Jacket material | Cable diameter | Wire-section |
|---|---|---|---|
| 79 3409 45 03 | PVC | 4,5 mm | 0.25 mm² |
| 79 3409 55 03 | PUR | 4,5 mm | 0.25 mm² |
