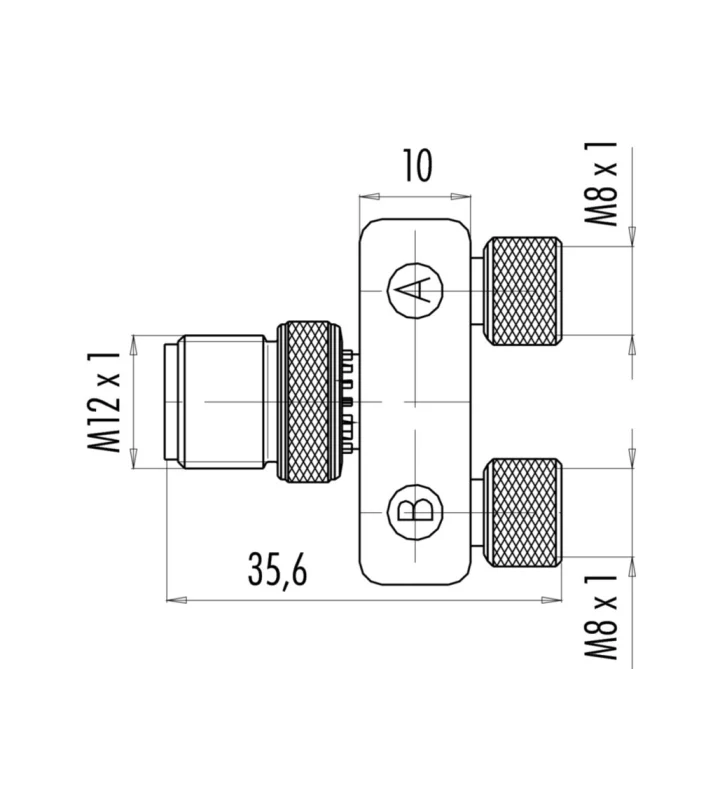

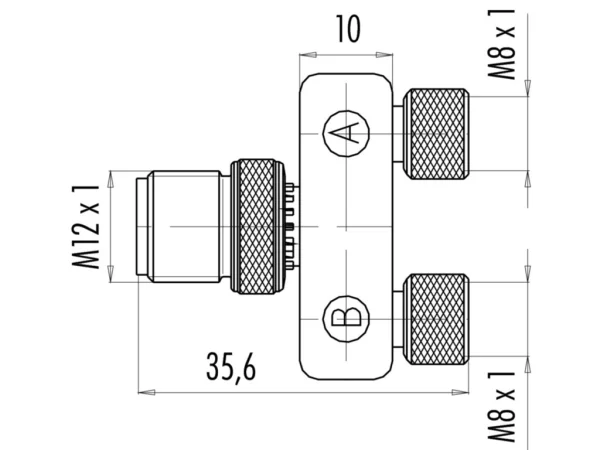

Twin distributor
Male connector M12x1 - 2 female connectors M8x1
79 5204 00 04
Specifications
General Characteristics
| Screw size | M12/M8 |
|---|---|
| Series | Sensor |
| Subseries | 765 |
| Gender | Male & Female |
| Number of contacts | 4/3 |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw |
| Mating cycles | >100 |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | Pin CuZn (Brass), Socket (Bronze) |
| Plating | Au (Gold) |
