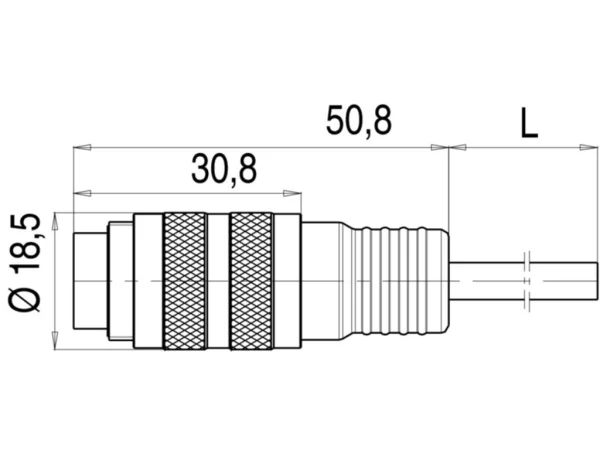

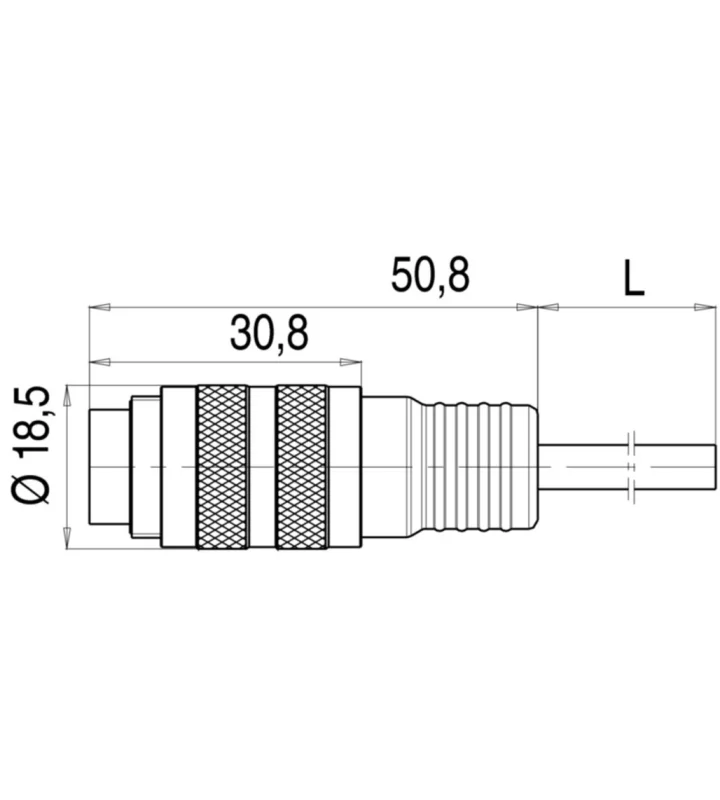

Male cable connector
79 6071 20 08
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 425 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Solder, moulded |
| Upper temperature | +70 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 18.5 mm |
| Cable Length | 2 m |
| Cable diameter | 5,7 mm |
| Wire-section | 8 x 0,25 mm² |
| Remark* | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 60 (32) V |
| Impuls voltage | 500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 (2)* |
| Overvoltage categorie | I (II)* |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Cable diameter | Wire-section |
|---|---|---|---|---|---|---|
| 79 6013 20 05 | 5 | 250 (32) V | 1500 V | >200 - ≤400 V | 5 mm | 5 x 0,25 mm² |
| 79 6029 20 12 | 12 | 60 (32) V | 500 V | ≤200 V | 7 mm | 12 x 0,25 mm² |
| 79 6051 20 14 | 14 | 60 (32) V | 500 V | ≤200 V | 8 mm | 8 x 0,25 / 2 x 0,5 mm² |
