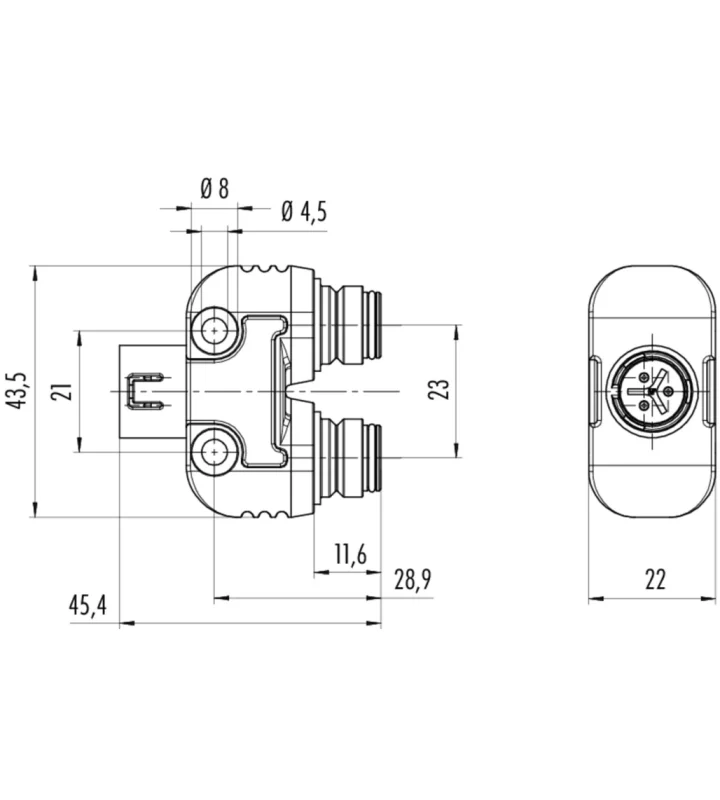

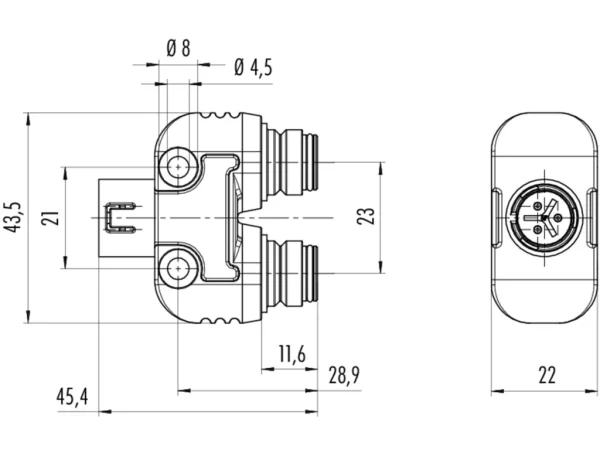

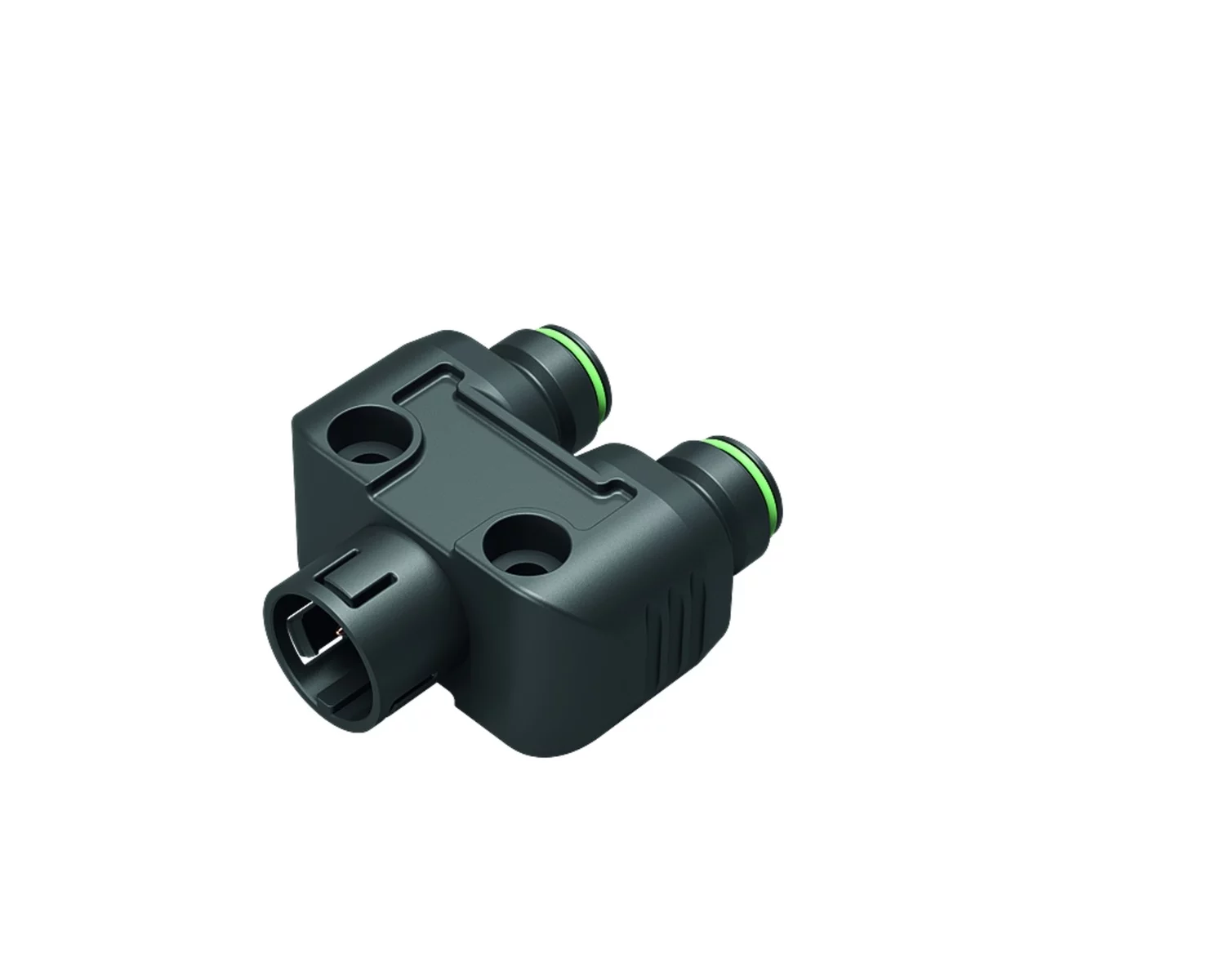

Snap-In IP67 double distributor box, 3 contacts
Shielding is not possible
79 9180 000 05
Specifications
General Characteristics
|
Series |
Subminiature
|
|
Subseries |
720
|
|
Number of contacts |
5
|
|
Upper temperature |
+85 °C
|
|
Lower temperature |
-25 °C
|
|
Protection degree |
IP67
|
|
Locking system |
Snap
|
|
Mating cycles |
>500
|
Electrical parameters
|
Nominal current |
7 A
|
|
Nominal voltage |
250 V
|
|
Impuls voltage |
2500 V
|
|
Pollution degree |
2
|
|
Overvoltage categorie |
II
|
Material
|
Material group |
II
|
|
Material of insert |
PA
|
|
Material of housing |
PA
|
|
Material of contact |
Pin:CuZn (Brass)/ Socket: CuSn (bronze)
|
|
Plating |
Au (Gold)
|
