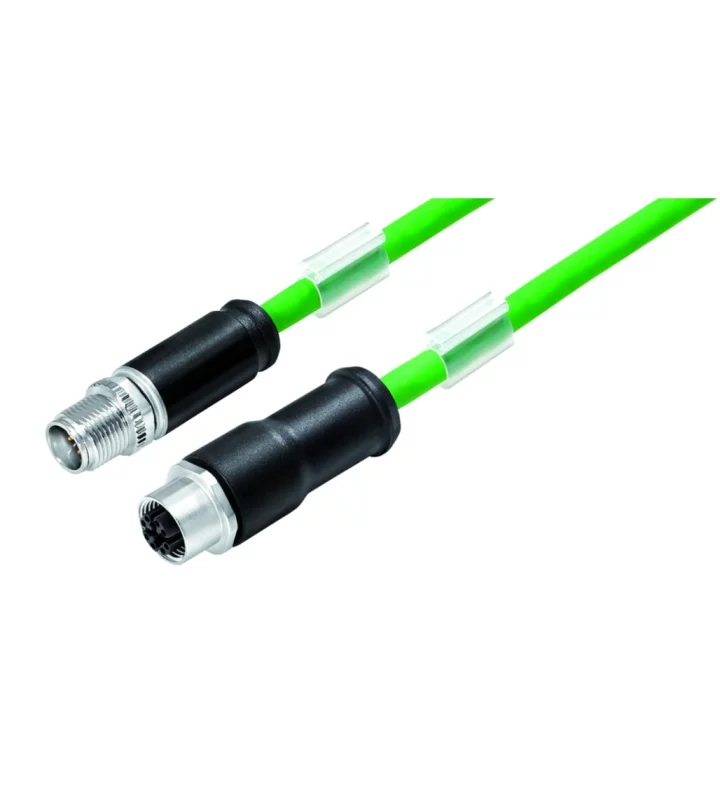

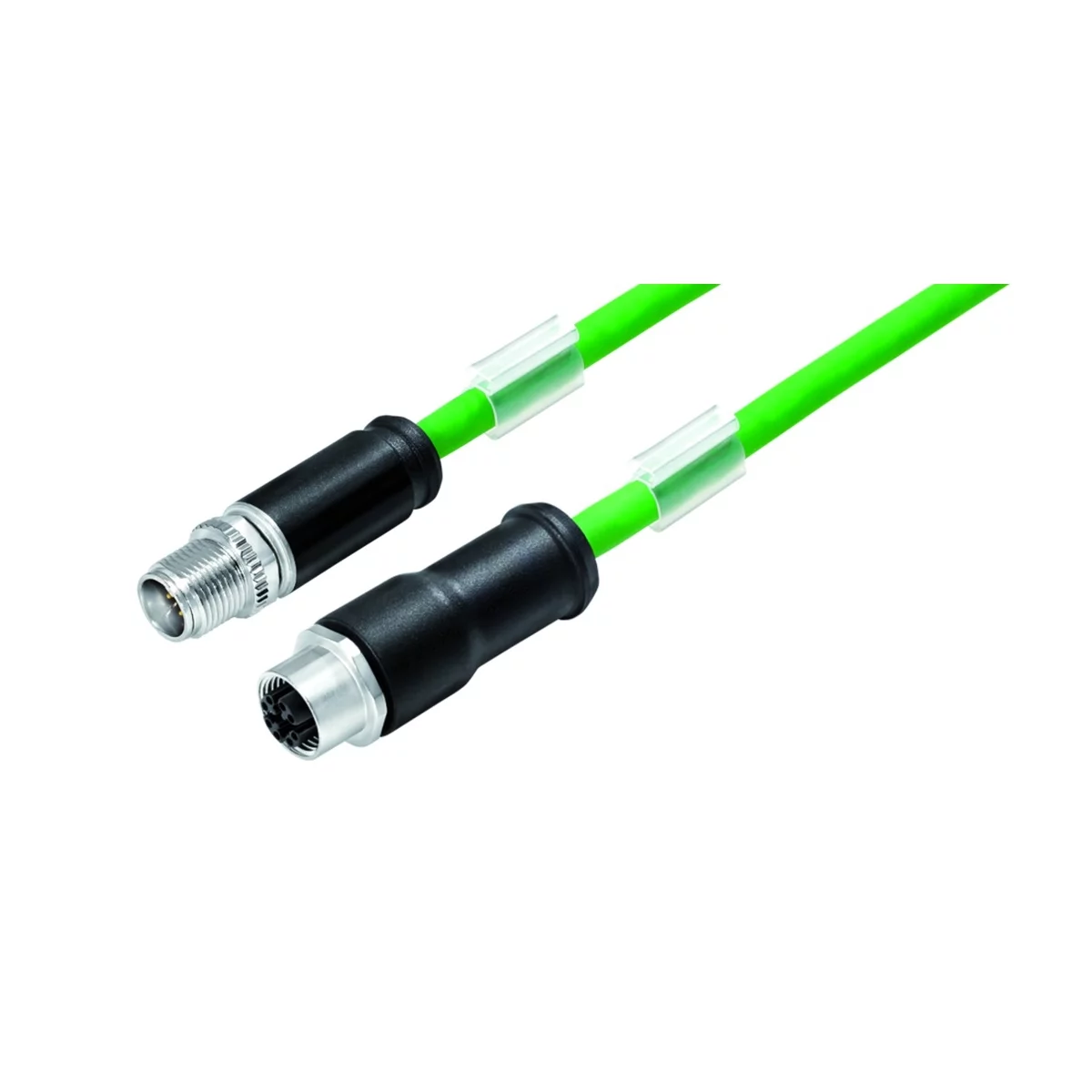

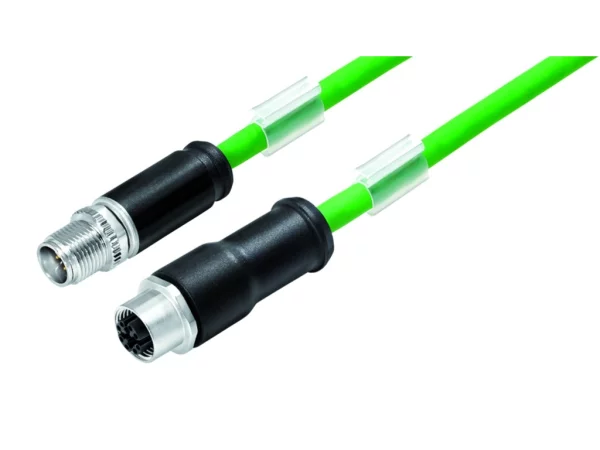

Connecting cable, male cable connector M12x1 & female cable connector M12x1
Shielded
UL-approval
79 9724 050 08
Specifications
General Characteristics
| Screw size | M12-X |
|---|---|
| Series | Sensor |
| Subseries | 876 |
| Gender | Male & Female |
| Number of contacts | 8 |
| Contact terminal | Crimp, overmoulded on cable |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-X) |
| Mating cycles | >50 |
| Connector Diameter | 18 mm |
| Cable Length | 5 m |
| Cable sheath | 6.2 mm |
| Wire gauge | 26/7 AWG |
| Radius cable fixed | ≥25 mm |
| Radius cable movable | ≥50 mm |
| Single lead structure | 7x0,16 |
Electrical parameters
| Nominal current | 0.5 A |
|---|---|
| Nominal voltage | 50 AC, 60 DC |
| Max. contact resistance | 10 mΩ |
| Conductor resistance | 14,5/100m |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PUR |
| Material of contact | CuSn (Bronze), CuZn (Brass) |
| Plating | Au (Gold) |
| Housing of cable | PUR Green |
| Insulation single lead | PE |
Variations
| Item number | Cable Length |
|---|---|
| 79 9724 020 08 | 2 m |
| 79 9724 100 08 | 10 m |
