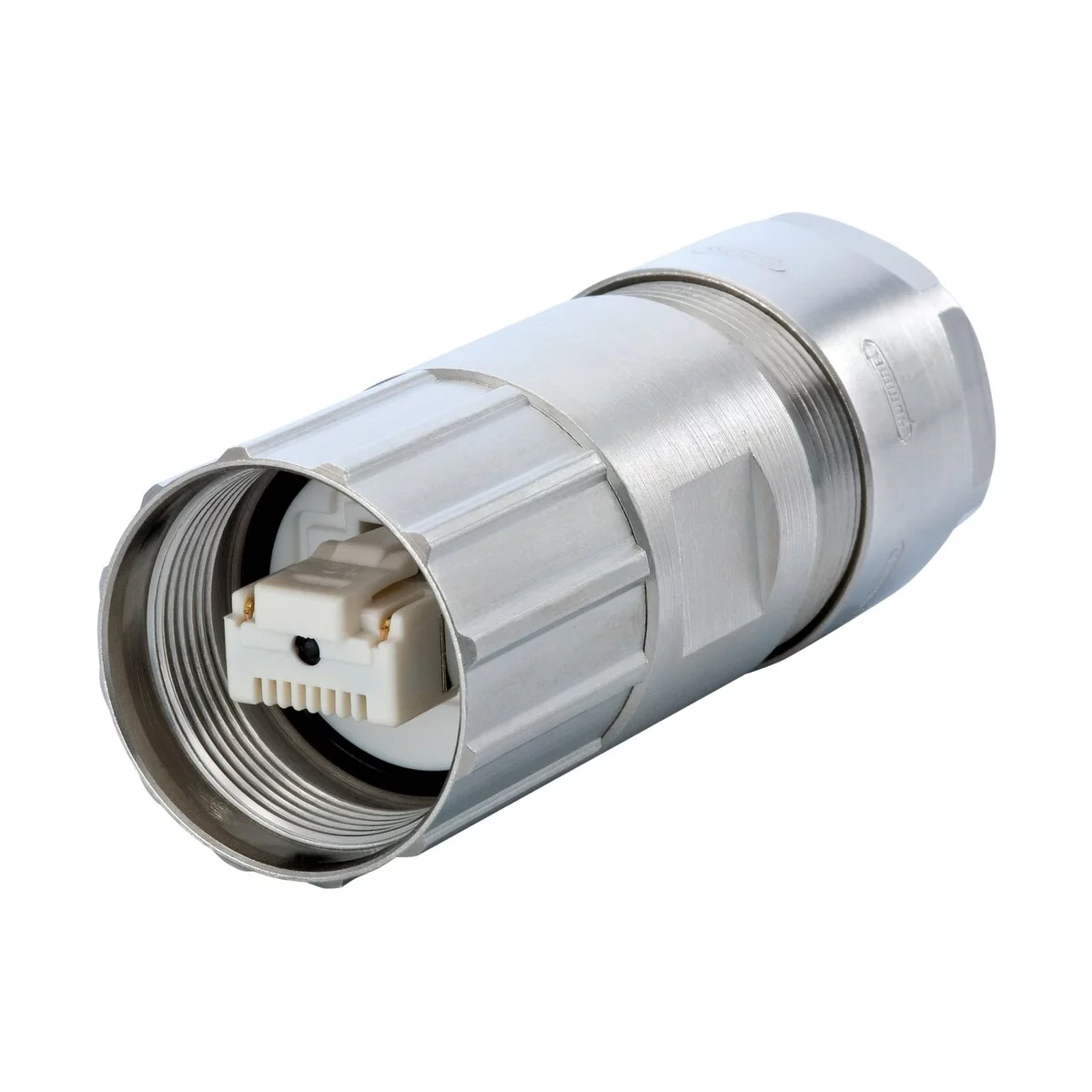

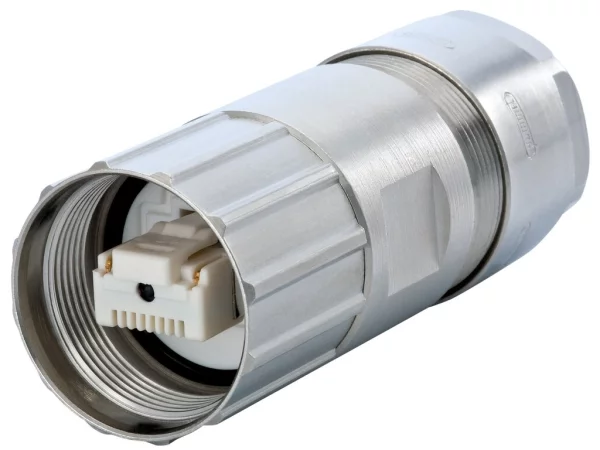

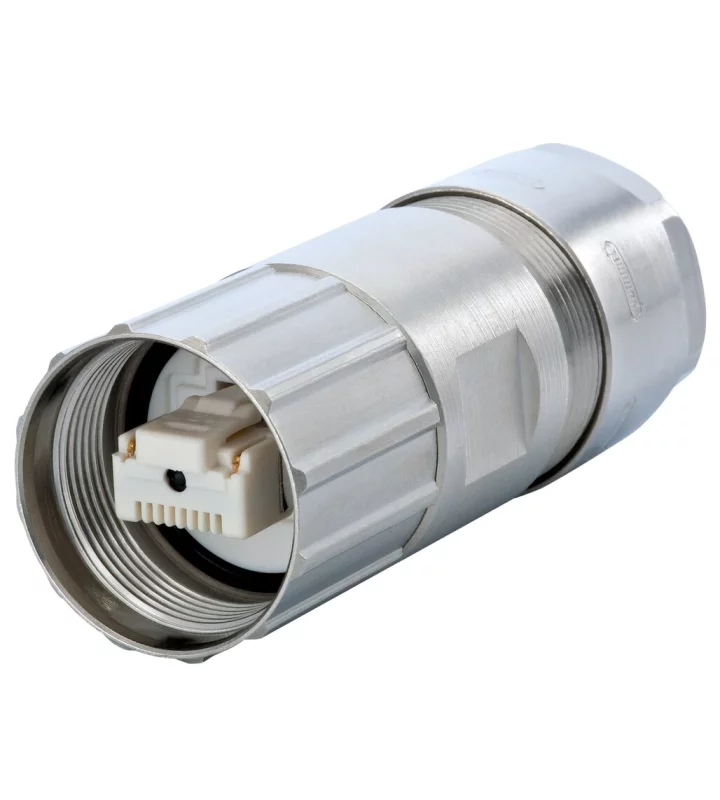

Straight connector, Female Thread
Connector with insert for patch cable
7.R10.400.000
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Number of contacts | 8;10mixed layout |
|---|---|
| Gender of required insert | Male |
| Connector diameter | 46 mm |
| Connector locking system | Screw |
| Protection degree | IP67 |
| Terminal type | IDC |
| Remark 1 | The A7RJ-081M41 plug can be recommended. A suitable patch cable can be tailor made. |
Electrical parameters
| Nominal current | upon request |
|---|---|
| Nominal voltage | upon request |
Material
| Housing material | Brass Alloy, Die Cast |
|---|---|
| Housing plating | Nickel Plated |
