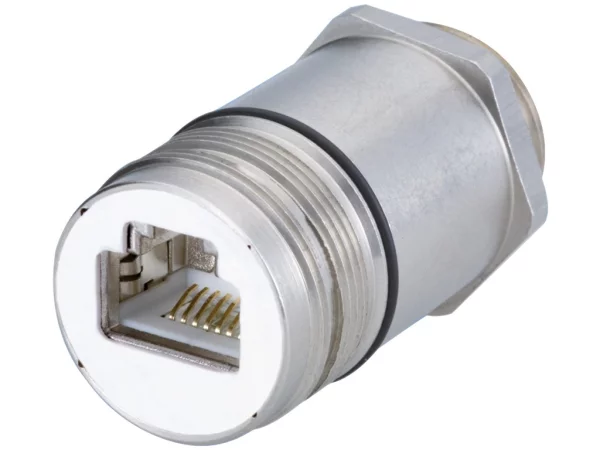

Single Hole Panel Connector
Front Mount
7.R42.008.000
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Number of contacts | 8 |
|---|---|
| Gender of required insert | Male |
| Connector diameter | 46 mm |
| Connector locking system | Screw |
| Protection degree | IP67 |
| Terminal type | Coupler |
| Thread | M20 x 1,5 |
| Remark 1 | Incl. 8 poles coupler, fully occupied. Optional: Gasket M20 x 1,5 Locking Nut |
Electrical parameters
| Nominal current | upon request |
|---|---|
| Nominal voltage | upon request |
Material
| Housing material | Brass Alloy, Die Cast |
|---|---|
| Housing plating | Nickel Plated |
