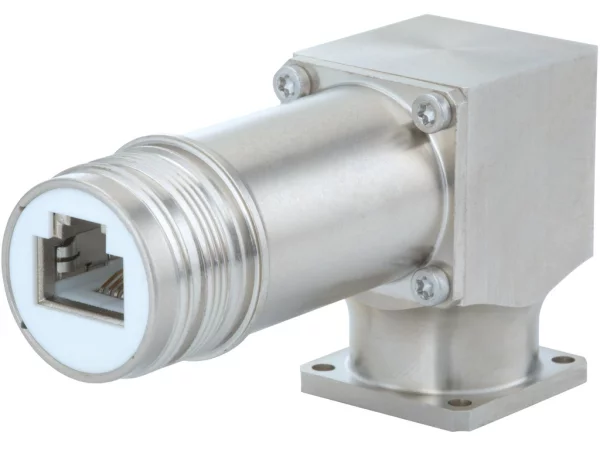

Right Angle Panel Connector, Male Thread

locking screw at flange

7.R43.108.000

Add the desired accessories to fully configure your connector.

Number of contacts	8
Gender of required insert	Male
Connector diameter	46 mm
Connector locking system	Screw
Protection degree	IP67
Terminal type	Coupler
Remark 1	Incl. 8 poles coupler fully occupied. Optional: Gasket

Nominal current	upon request
Nominal voltage	upon request

Housing material	Brass Alloy, Die Cast
Housing plating	Nickel Plated
