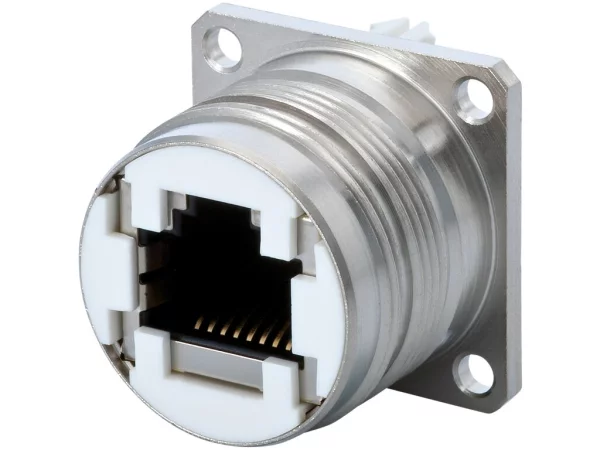

Panel Connector
Rear Mount
Dip solder insert
7.R45.008.000
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Number of contacts | 8 |
|---|---|
| Gender of required insert | Male |
| Connector diameter | 46 mm |
| Connector locking system | Screw |
| Protection degree | IP67 |
| Terminal type | Dip-solder |
| Thread | 4 x M3 |
| Remark 1 | With vibration protection, Incl. 8 poles dip solder insert |
Electrical parameters
| Nominal current | upon request |
|---|---|
| Nominal voltage | upon request |
Material
| Housing material | Brass Alloy, Die Cast |
|---|---|
| Housing plating | Nickel Plated |
