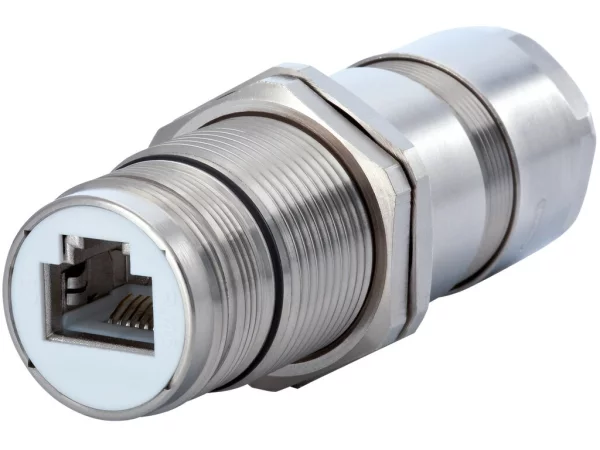

Single Hole Panel Connector with strain relief

Single hole

7.R52.408.000

Add the desired accessories to fully configure your connector.

Number of contacts	8
Gender of required insert	Male
Connector diameter	46 mm
Connector locking system	Screw
Protection degree	IP67
Terminal type	Coupler
Thread	M25 x 1,5
Remark 1	Incl. 8 poles coupler, fully occupied. Locking Nut included

Nominal current	upon request
Nominal voltage	upon request

Housing material	Brass Alloy, Die Cast
Housing plating	Nickel Plated
