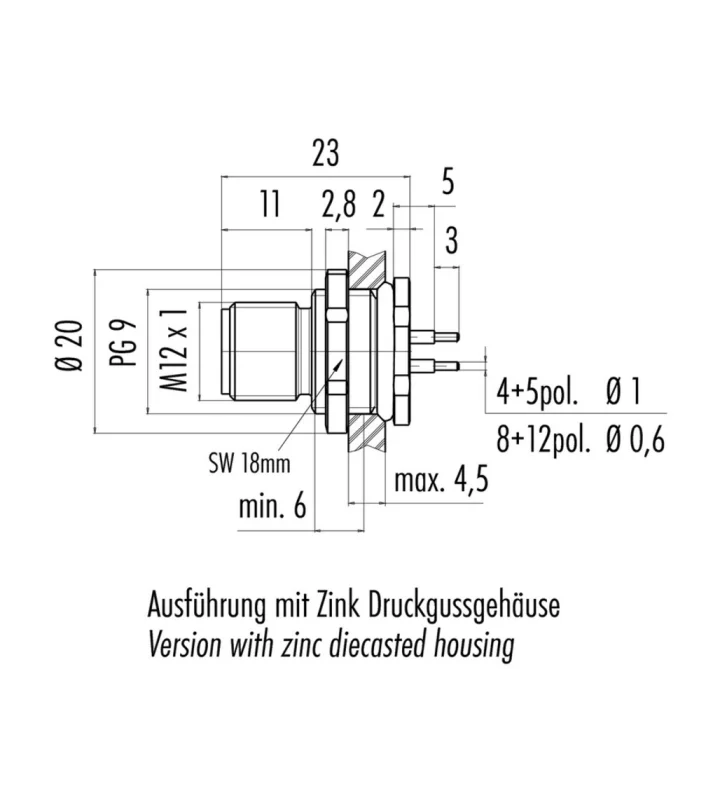

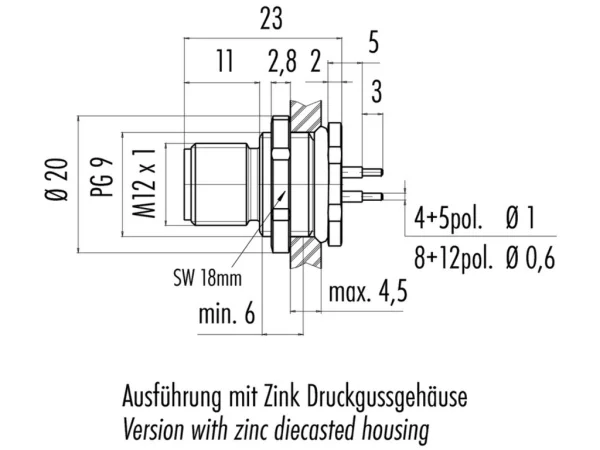

Male panel mount connector
Front fastened, dip solder
UL-approval
86 2531 1100 00008
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 20 mm |
| Wire-section | 0.25 mm² |
| Fixing thread | PG 9 VA/stainless steel |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Stainless steel |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage | Material of housing | Nominal Voltage | Wire-section | Fixing thread |
|---|---|---|---|---|---|---|---|
| 86 0531 1000 00004 | 4 | 250 V | 2500 V | brass/zinc diecasting nickel plated | >200 - ≤400 V | 0.25 mm² | PG 9 |
| 86 0531 1000 00005 | 5 | 60 V | 1500 V | brass/zinc diecasting nickel plated | ≤200 V | 0.25 mm² | PG 9 |
| 86 2531 1100 00005 | 5 | 60 V | 1500 V | Stainless steel | ≤200 V | 0.25 mm² | PG 9 VA/stainless steel |
| 86 0531 1000 00008 | 8 | 30 V | 800 V | brass/zinc diecasting nickel plated | ≤200 V | 0.25 mm² | PG 9 |
| 86 0531 1100 00012 | 12 | 30 V | 800 V | brass/zinc diecasting nickel plated | ≤200 V | 0.14 mm² | PG 9 |
