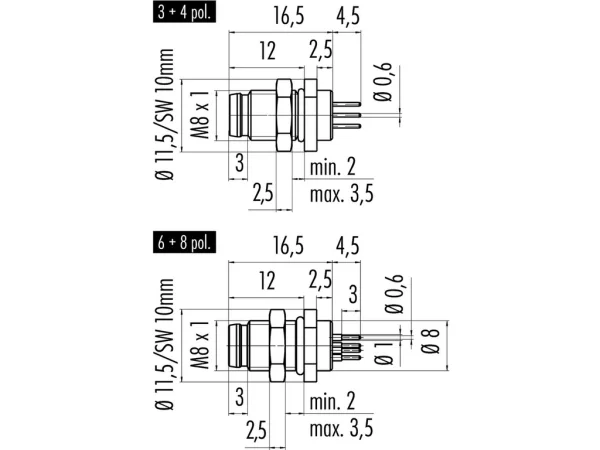

Male panel mount connector
Front fastened, dip solder
UL-approval
86 6119 1100 00003
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 768-718 |
| Gender | Male |
| Number of contacts | 3 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw, snap-in |
| Mating cycles | >100 |
| Connector Diameter | 11.5 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Material group | Nominal voltage | Impuls voltage |
|---|---|---|---|---|
| 86 6119 1100 00006 | 6 | II | 30 V | 800 V |
| 86 6119 1100 00008 | 8 | II | 30 V | 800 V |
| 86 6119 1100 00012 | 12 | I | 30 V | 500 V |
| 86 6119 1100 00004 | 4 | II | 30 V | 800 V |
