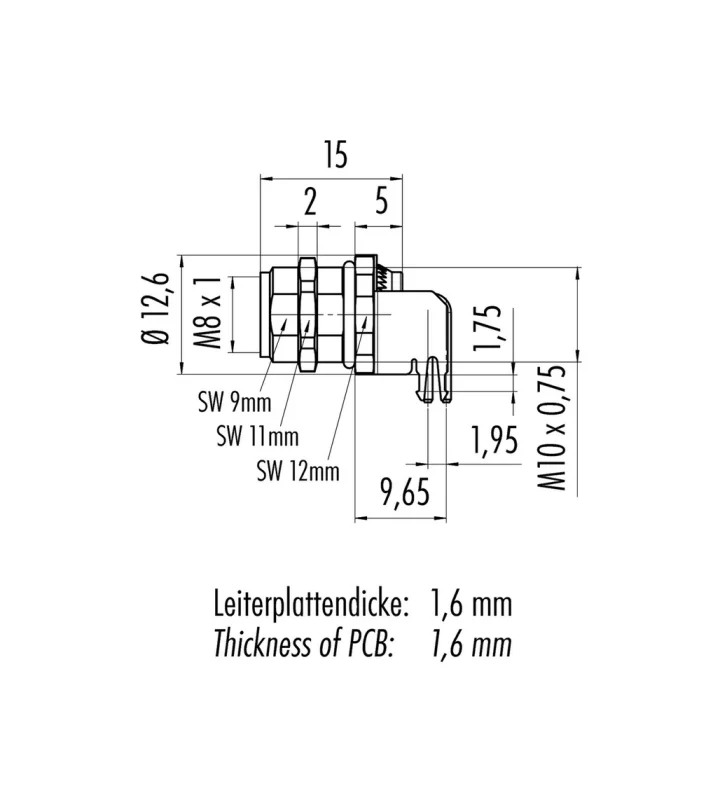

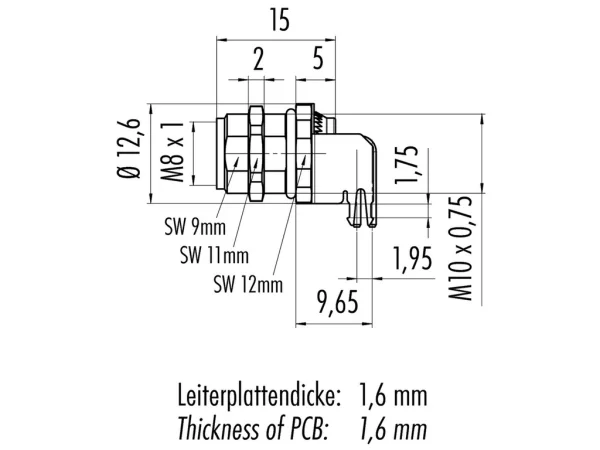

Female angled panel mount connector
Front fastened, dip solder, with shielding sheet
86 6618 1121 00004
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 768-718 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Mating cycles | >100 |
| Connector Diameter | 12.6 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | Zinc diecasting nickel plated |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Nominal voltage |
|---|---|---|
| 86 6618 1121 00003 | 3 | 60 V |
| 86 6618 1121 00005 | 5 | 30 V |
| 86 6618 1121 00006 | 6 | 30 V |
