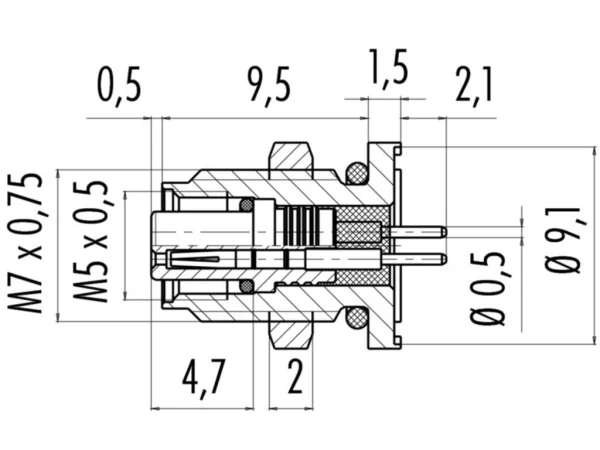

Female panel mount connector
With dip solder contacts
86 8106 1100 00003
09 3106 81 03
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M5 |
|---|---|
| Series | Sensor |
| Subseries | 707 |
| Gender | Female |
| Number of contacts | 3 |
| Contact terminal | Dip solder |
| Upper temperature | +80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M5) |
| Mating cycles | >100 |
| Wire-section | 0.14 mm² |
Electrical parameters
| Nominal current | 1 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | I |
|---|---|
| Material of insert | PA |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
