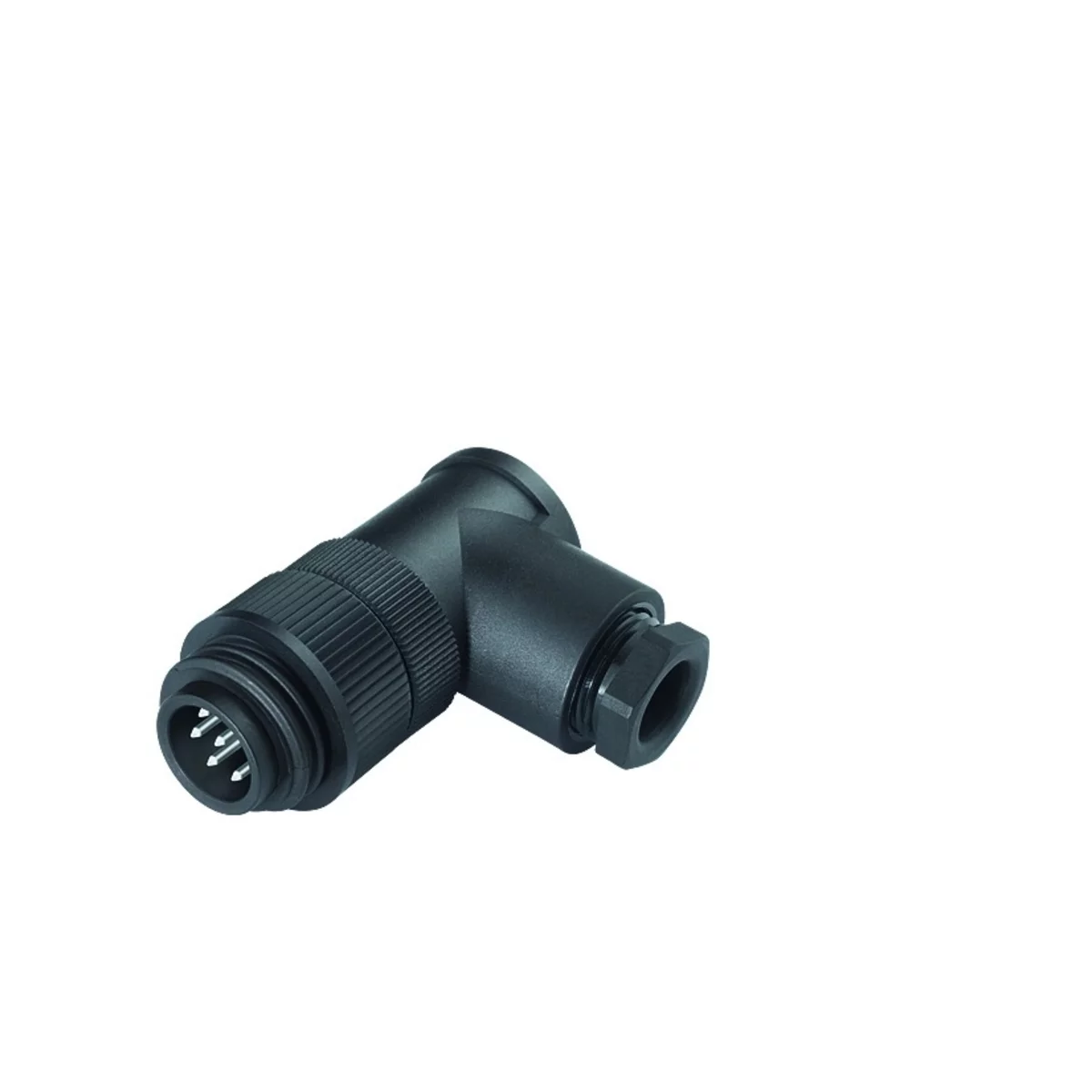

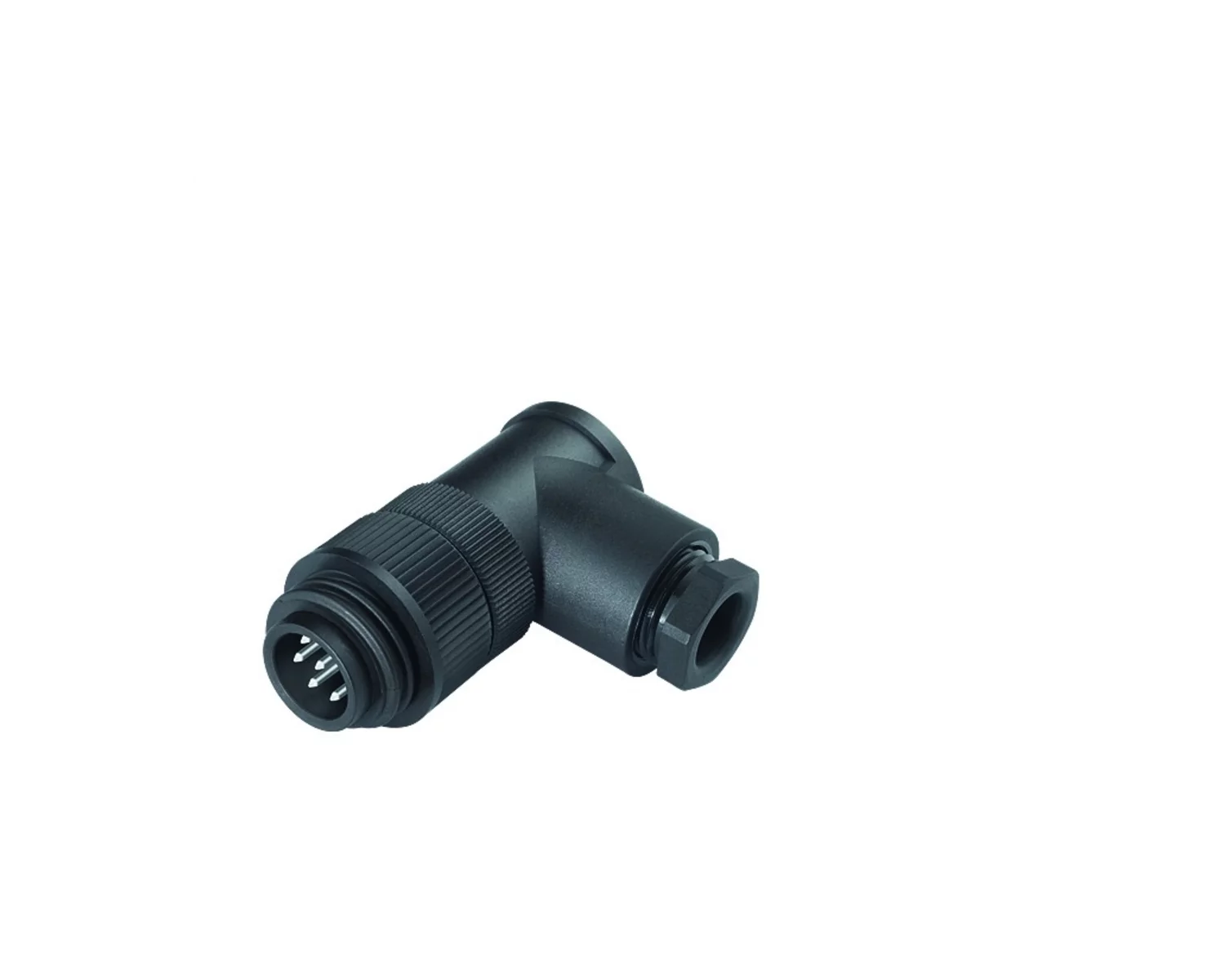

Male angled connector
PG11
99 0209 210 04
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | RD24 |
|---|---|
| Series | Power |
| Subseries | 692-693 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Screw |
| Upper temperature | +100 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67* |
| Locking system | Screw (RD24) |
| Mating cycles | >500 |
| Connector Diameter | 29 mm |
| Cable outlet | 8-10 mm |
| Wire-section | 0,5 - 2,5 mm² |
| Remark* | *IP65 for cable-Ø 6-7 mm |
Electrical parameters
| Nominal current | 16 A |
|---|---|
| Nominal voltage | 400 V |
| Impuls voltage | 6000 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL94 V-0) |
| Material of housing | PBT (UL94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Wire-section |
|---|---|---|---|---|---|---|
| 99 0213 210 07 | >5 - ≤10 A | 7 | 250 V | Solder | 4000 V | 0.75 mm² |
| 99 0217 210 07 | >5 - ≤10 A | 7 | 250 V | Screw | 4000 V | 0,34 - 1,5 mm² |
| 99 0201 210 07 | >5 - ≤10 A | 7 | 250 V | Crimp | 4000 V | 0,14 - 1,5 mm² |
