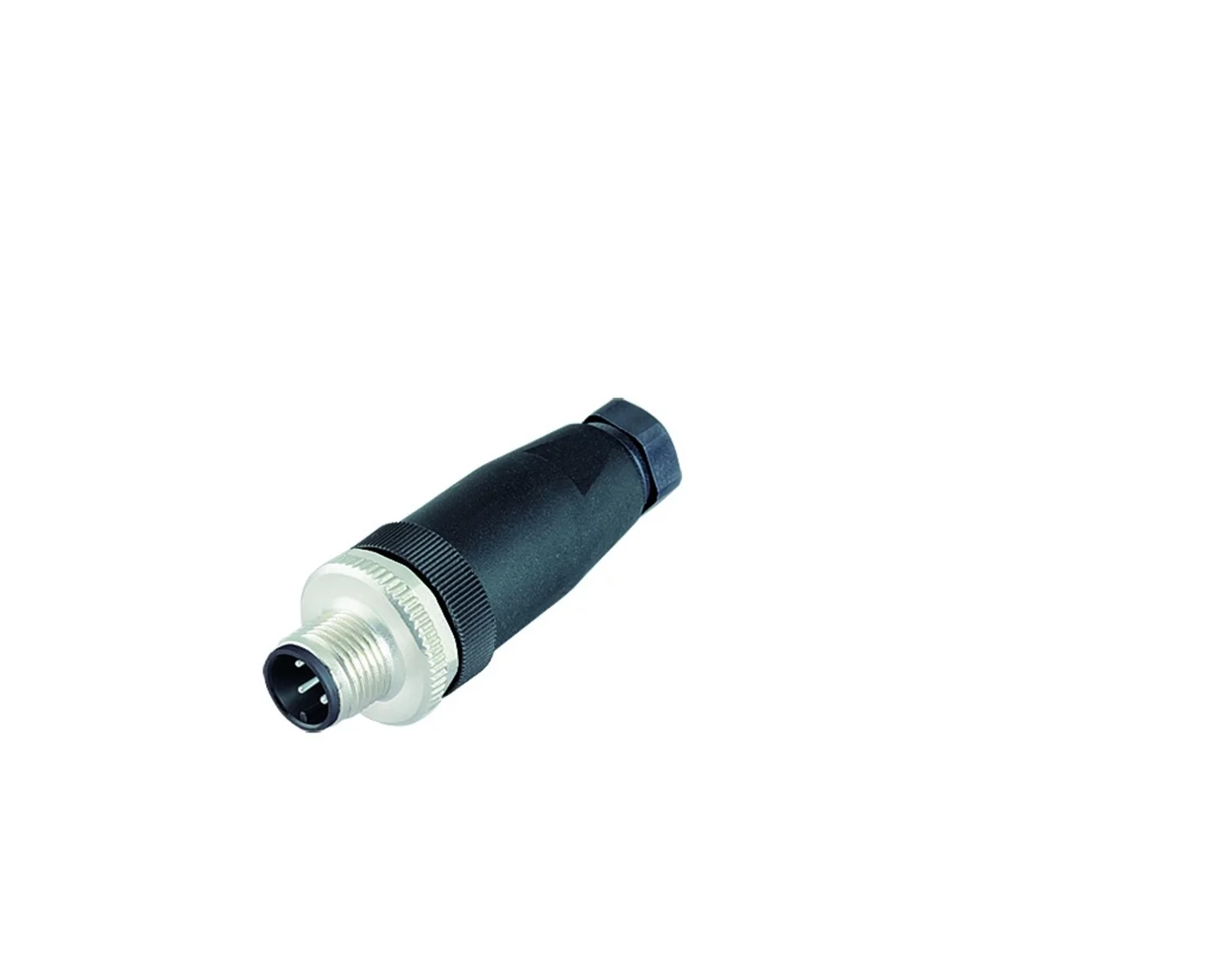

Male cable connector
Metal locking system, screw clamp connection, solder termination on 12 pol
UL-approval
99 0429 07 04
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713 |
| Gender | Male |
| Number of contacts | 3 |
| Contact terminal | Screw |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >50 |
| Connector Diameter | 20.2 mm |
| Cable outlet | 4-6 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 8 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuZn (Brass) |
| Plating | CuSnZn (Optalloy) |
Variations
| Item number | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Max. contact resistance | Plating | Nominal Voltage | Mating cycles | Cable outlet | Wire-section |
|---|---|---|---|---|---|---|---|---|---|---|
| 99 0429 158 04 | 3 | 250 V | Screw | 2500 V | 8 mΩ | CuSnZn (Optalloy) | >200 - ≤400 V | >50 | 6-8 mm | 0.75 mm² |
| 99 0429 314 04 | 4 | 250 V | Screw | 2500 V | 8 mΩ | CuSnZn (Optalloy) | >200 - ≤400 V | >50 | 2,5-3,5 mm | 0.75 mm² |
| 99 0429 14 04 | 4 | 250 V | Screw | 2500 V | 8 mΩ | CuSnZn (Optalloy) | >200 - ≤400 V | >50 | 4-6 mm | 0.75 mm² |
| 99 0429 12 04 | 4 | 250 V | Screw | 2500 V | 8 mΩ | CuSnZn (Optalloy) | >200 - ≤400 V | >50 | 6-8 mm | 0.75 mm² |
| 99 0437 14 05 | 5 | 125 V | Screw | 1500 V | 8 mΩ | CuSnZn (Optalloy) | ≤200 V | >50 | 4-6 mm | 0.75 mm² |
| 99 0437 12 05 | 5 | 125 V | Screw | 1500 V | 8 mΩ | CuSnZn (Optalloy) | ≤200 V | >50 | 6-8 mm | 0.75 mm² |
| 99 0487 12 08 | 8 | 60 V | Screw | 800 V | 3 mΩ | Au (Gold) | ≤200 V | >100 | 6-8 mm | 0.5 mm² |
| 99 0491 12 12 | 12 | 30 V | Solder | 500 V | 3 mΩ | Au (Gold) | ≤200 V | >100 | 6-8 mm | 0.25 mm² |
