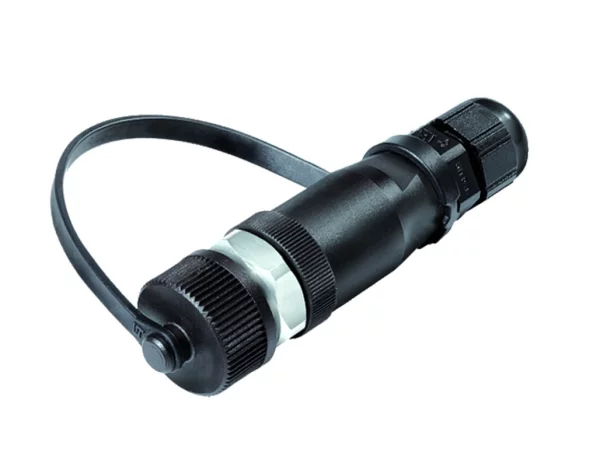

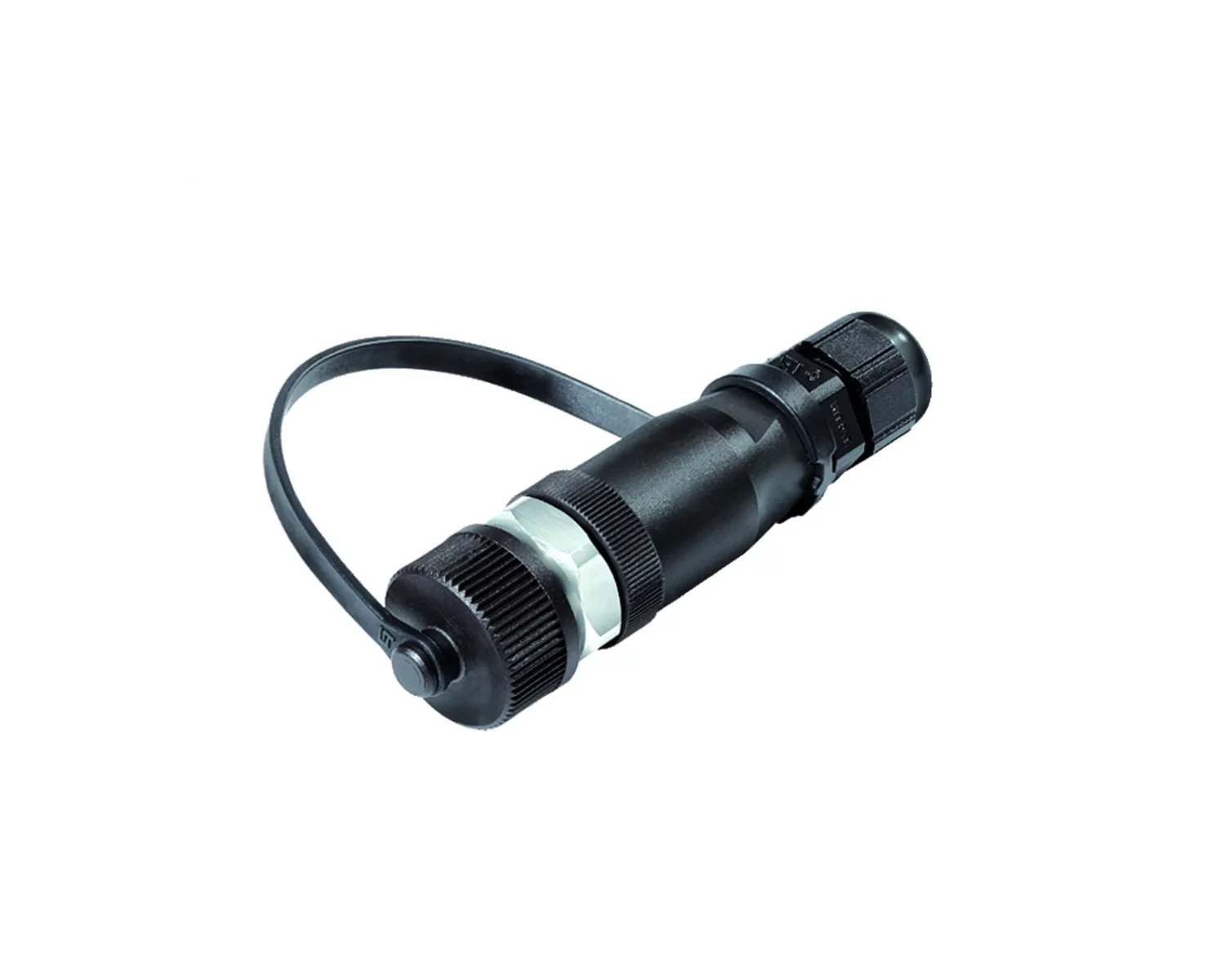

Male cable connector
Outdoor, screw clamp
99 0429 684 04
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Screw clamp |
| Upper temperature | +100 °C |
| Lower temperature | -40 °C |
| Locking system | Screw (M12-A) |
| Mating cycles | >50 |

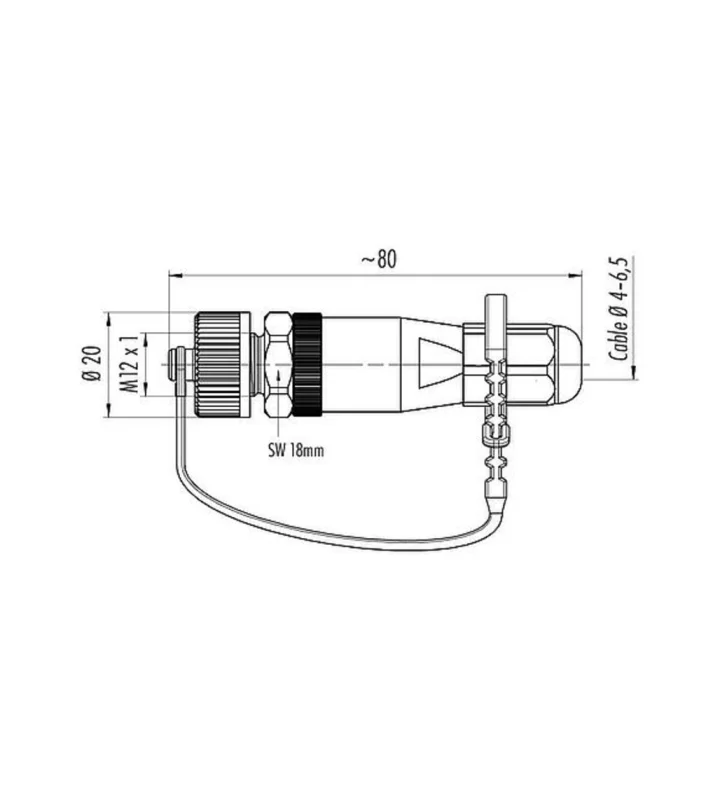

| Connector Diameter | 20 mm |
| Cable outlet | 4-6,5 mm |
| Wire gauge | 20 AWG |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
