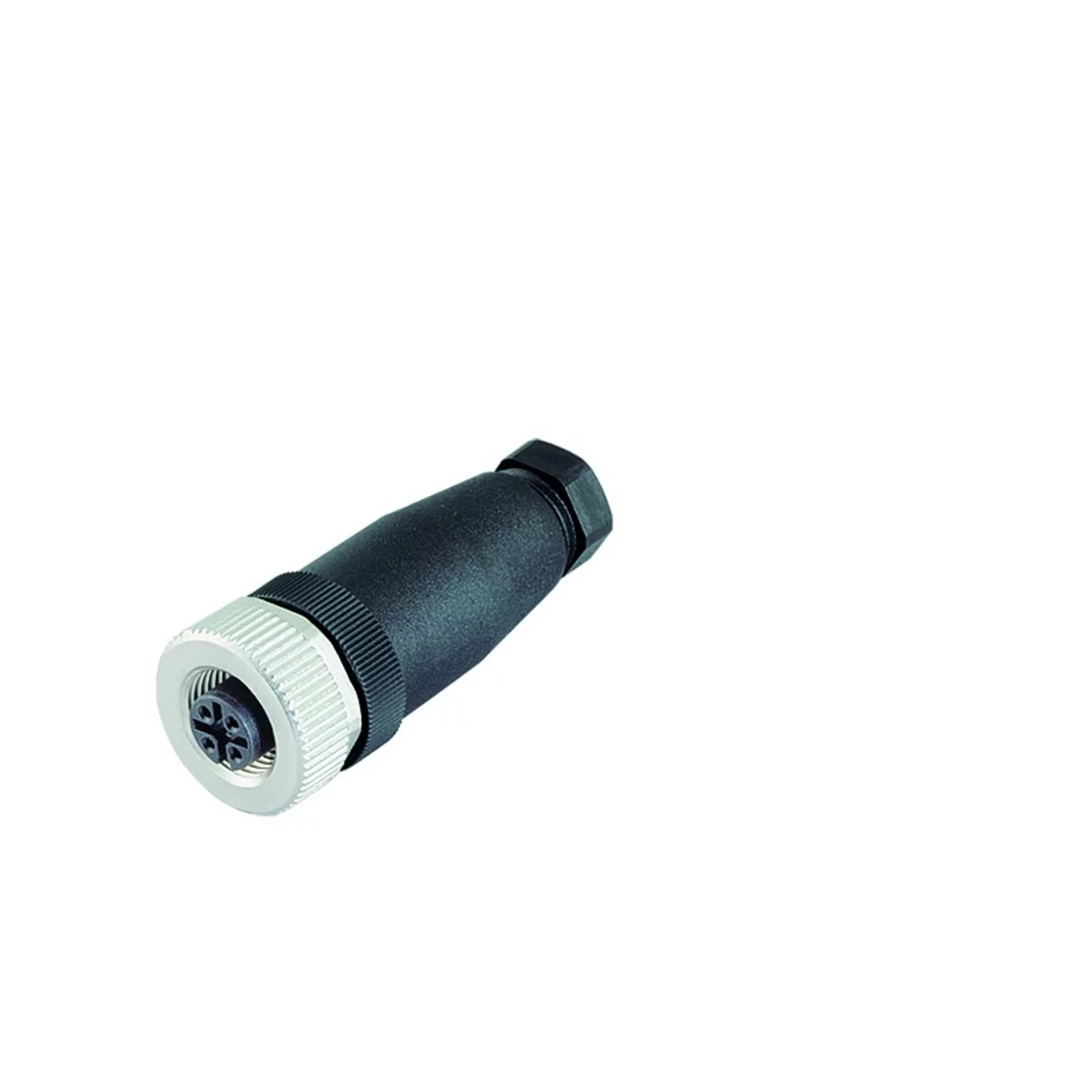

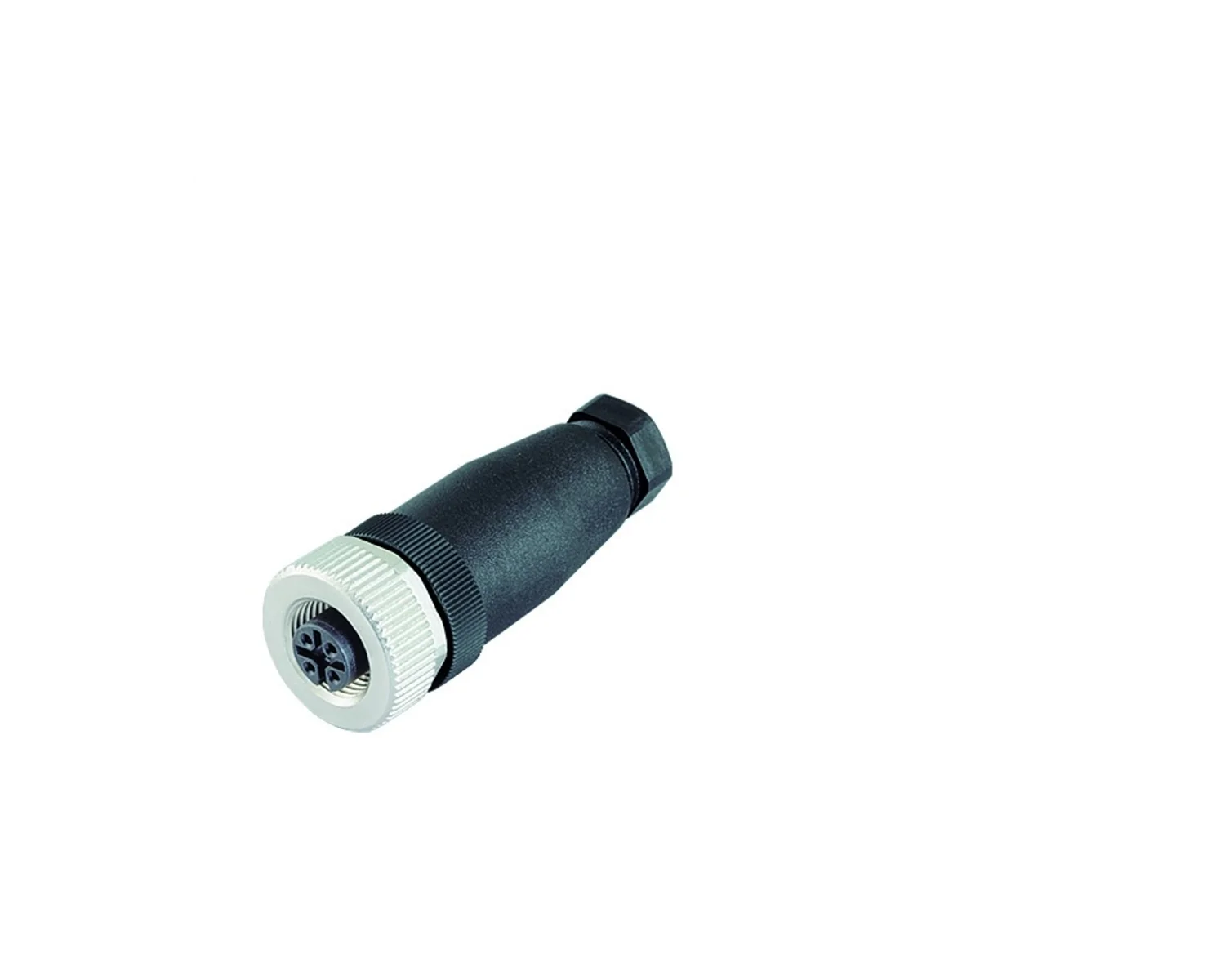

Female cable connector
Metal locking system, screw clamp connection, solder termination on 12 pol
99 0430 314 04
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Screw |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >50 |
| Connector Diameter | 20.2 mm |
| Cable outlet | 2,5-3,5 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 8 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuZn (Brass) |
| Plating | CuSnZn (Optalloy) |
Variations
| Item number | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Max. contact resistance | Material of contact | Plating | Nominal Voltage | Cable outlet | Wire-section |
|---|---|---|---|---|---|---|---|---|---|---|
| 99 0430 07 04 | 3 | 250 V | Screw | 2500 V | 8 mΩ | CuZn (Brass) | CuSnZn (Optalloy) | >200 - ≤400 V | 4-6 mm | 0.75 mm² |
| 99 0430 158 04 | 3 | 250 V | Screw | 2500 V | 8 mΩ | CuZn (Brass) | CuSnZn (Optalloy) | >200 - ≤400 V | 6-8 mm | 0.75 mm² |
| 99 0430 14 04 | 4 | 250 V | Screw | 2500 V | 8 mΩ | CuZn (Brass) | CuSnZn (Optalloy) | >200 - ≤400 V | 4-6 mm | 0.75 mm² |
| 99 0430 12 04 | 4 | 250 V | Screw | 2500 V | 8 mΩ | CuZn (Brass) | CuSnZn (Optalloy) | >200 - ≤400 V | 6-8 mm | 0.75 mm² |
| 99 0436 14 05 | 5 | 125 V | Screw | 1500 V | 8 mΩ | CuZn (Brass) | CuSnZn (Optalloy) | ≤200 V | 4-6 mm | 0.75 mm² |
| 99 0436 12 05 | 5 | 125 V | Screw | 1500 V | 8 mΩ | CuZn (Brass) | CuSnZn (Optalloy) | ≤200 V | 6-8 mm | 0.75 mm² |
| 99 0486 12 08 | 8 | 60 V | Screw | 800 V | 3 mΩ | CuZn (Brass) | Au (Gold) | ≤200 V | 6-8 mm | 0.5 mm² |
| 99 0492 12 12 | 12 | 30 V | Solder | 500 V | 3 mΩ | CuSn (Bronze) | Au (Gold) | ≤200 V | 6-8 mm | 0.25 mm² |
