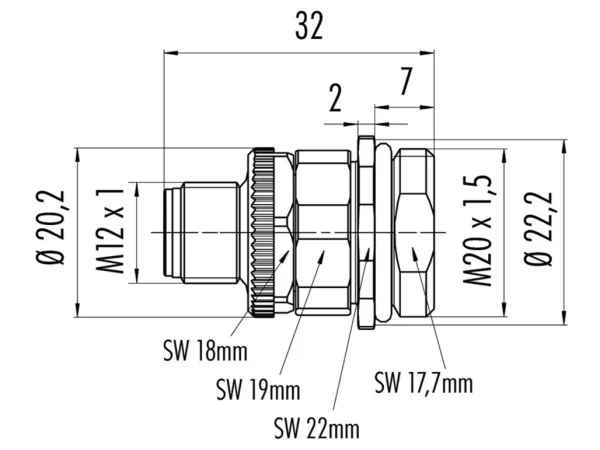

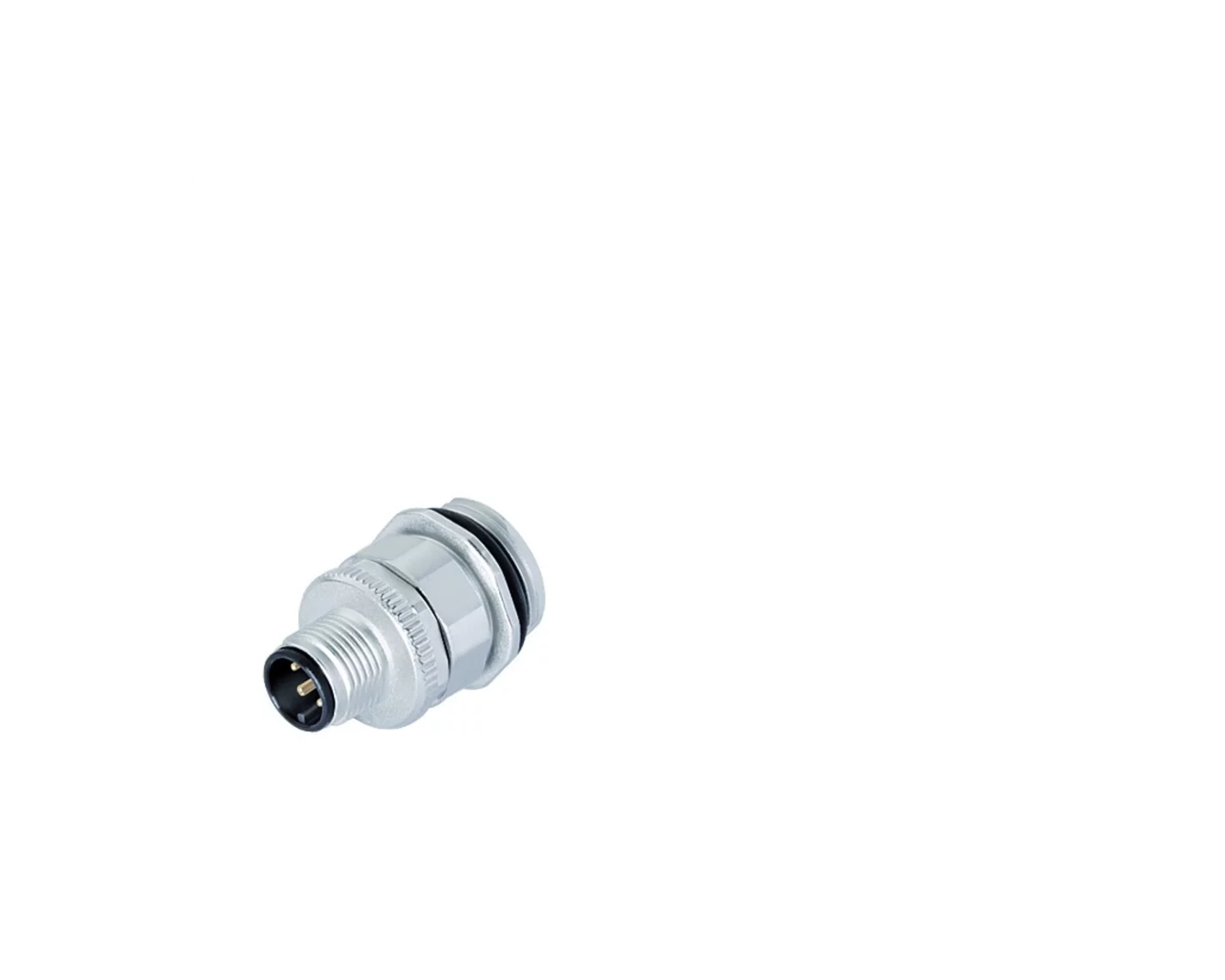

Male panel mount connector
Power, screw clamp connection
99 0433 500 05
Continue assembling your connector
Add the desired accessories to fully configure your connector.

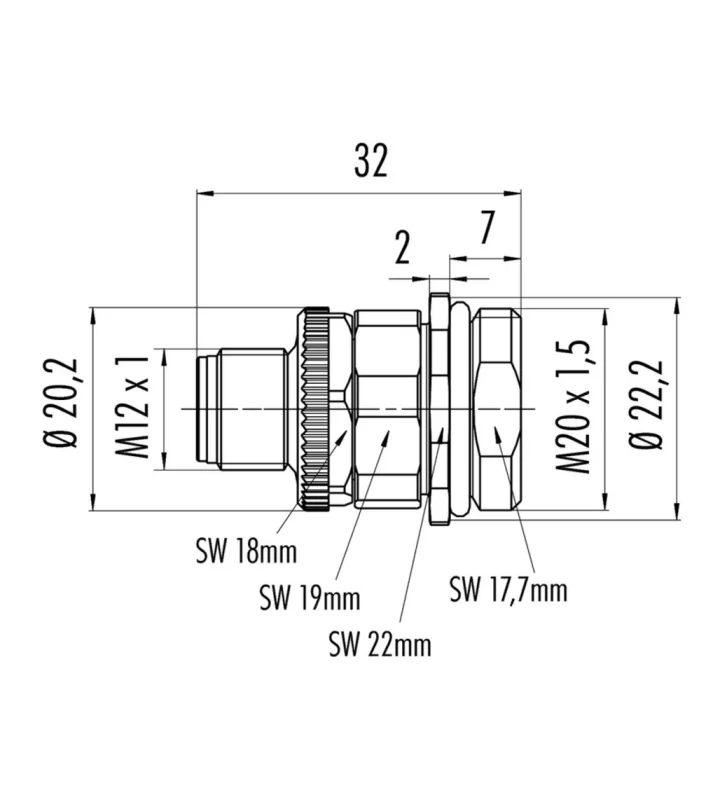

Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Male |
| Number of contacts | 5 |
| Contact terminal | Screw clamp |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 22.2 mm |
| Wire-section | 1.5 mm² |
| Fixing thread | M20 x 1,5 |
Electrical parameters
| Nominal current | 8 (pin 1-4) / 2 (pin 5) |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|---|
| 99 0431 500 04 | >5 - ≤10 A | 4 | 250 V | 2500 V | >200 - ≤400 V |
