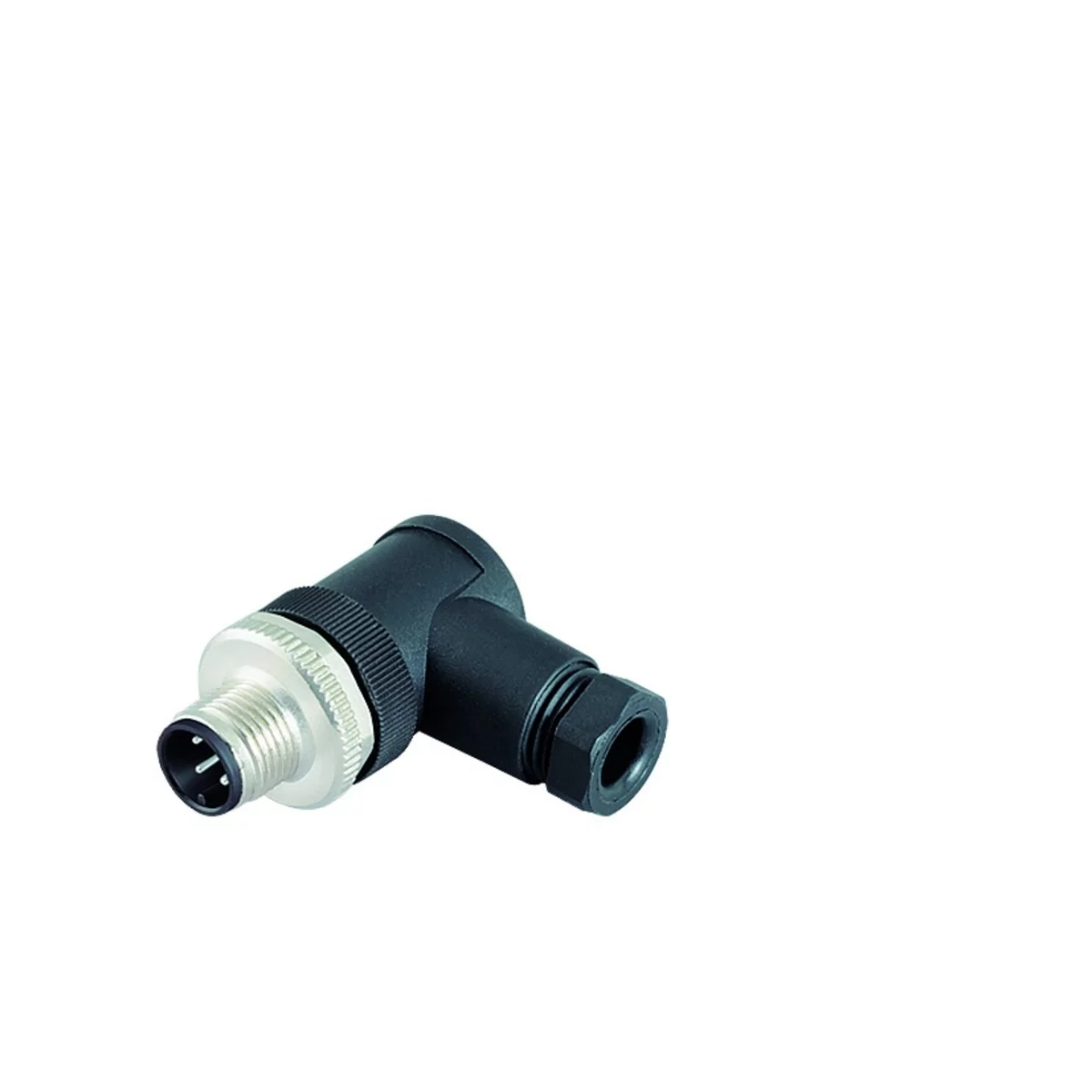

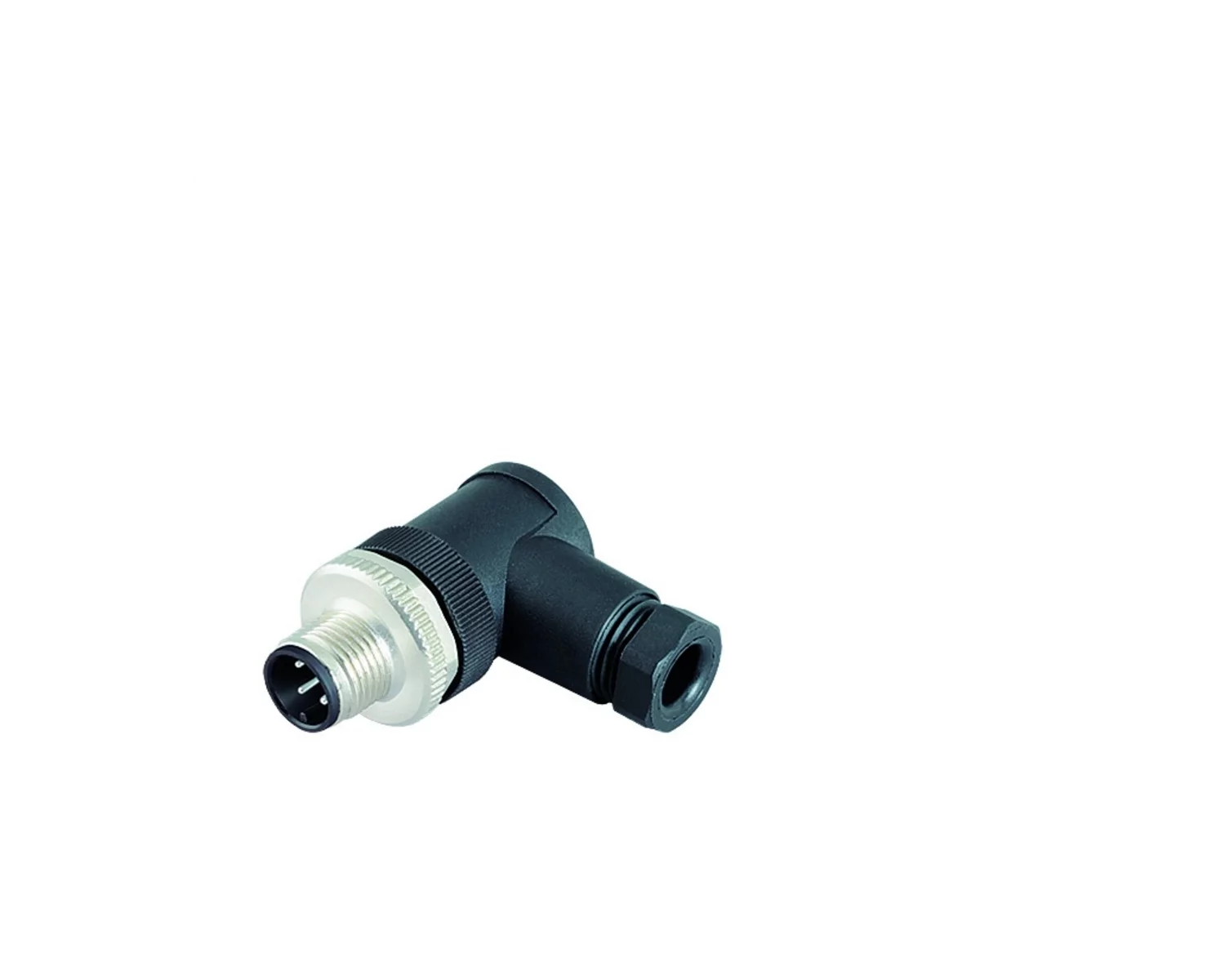

Male angled connector
Metal locking system, screw clamp connection, solder termination on 12 pol
99 0491 52 12
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713 |
| Gender | Male |
| Number of contacts | 12 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |

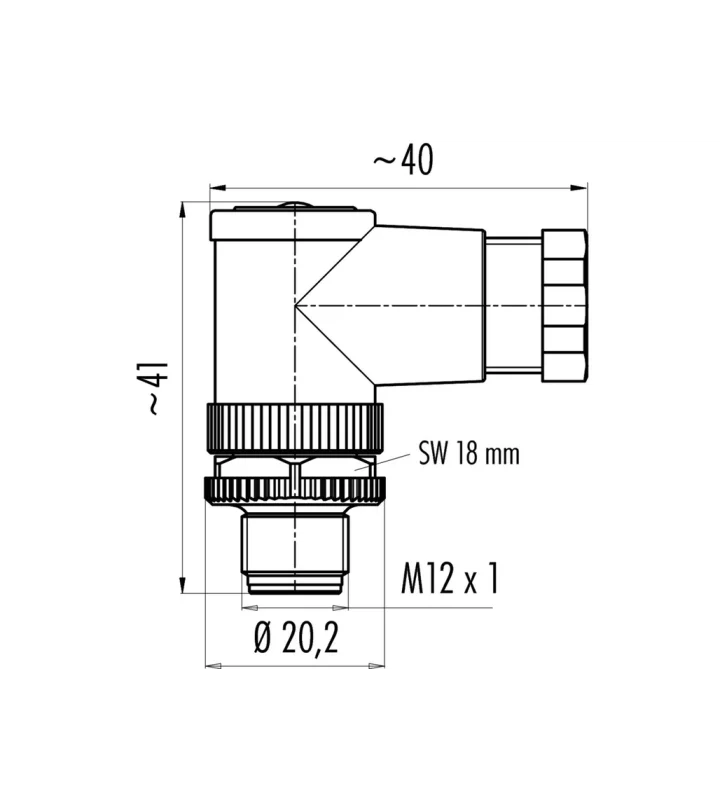

| Connector Diameter | 20.2 mm |
| Cable outlet | 6-8 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PBT |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Max. contact resistance | Plating | Nominal Voltage | Mating cycles | Cable outlet | Wire-section |
|---|---|---|---|---|---|---|---|---|---|---|
| 99 0429 27 04 | 3 | 250 V | Screw | 2500 V | 8 mΩ | CuSnZn (Optalloy not shielded) | >200 - ≤400 V | >50 | 4-6 mm | 0.75 mm² |
| 99 0429 161 04 | 3 | 250 V | Screw | 2500 V | 8 mΩ | CuSnZn (Optalloy not shielded) | >200 - ≤400 V | >50 | 6-8 mm | 0.75 mm² |
| 99 0429 324 04 | 4 | 250 V | Screw | 2500 V | 8 mΩ | CuSnZn (Optalloy not shielded) | >200 - ≤400 V | >50 | 2,5-3,5 mm | 0.75 mm² |
| 99 0429 24 04 | 4 | 250 V | Screw | 2500 V | 8 mΩ | CuSnZn (Optalloy not shielded) | >200 - ≤400 V | >50 | 4-6 mm | 0.75 mm² |
| 99 0429 52 04 | 4 | 250 V | Screw | 2500 V | 8 mΩ | CuSnZn (Optalloy not shielded) | >200 - ≤400 V | >50 | 6-8 mm | 0.75 mm² |
| 99 0437 24 05 | 5 | 125 V | Screw | 1500 V | 8 mΩ | CuSnZn (Optalloy not shielded) | ≤200 V | >50 | 4-6 mm | 0.75 mm² |
| 99 0437 52 05 | 5 | 125 V | Screw | 1500 V | 8 mΩ | CuSnZn (Optalloy not shielded) | ≤200 V | >50 | 6-8 mm | 0.75 mm² |
