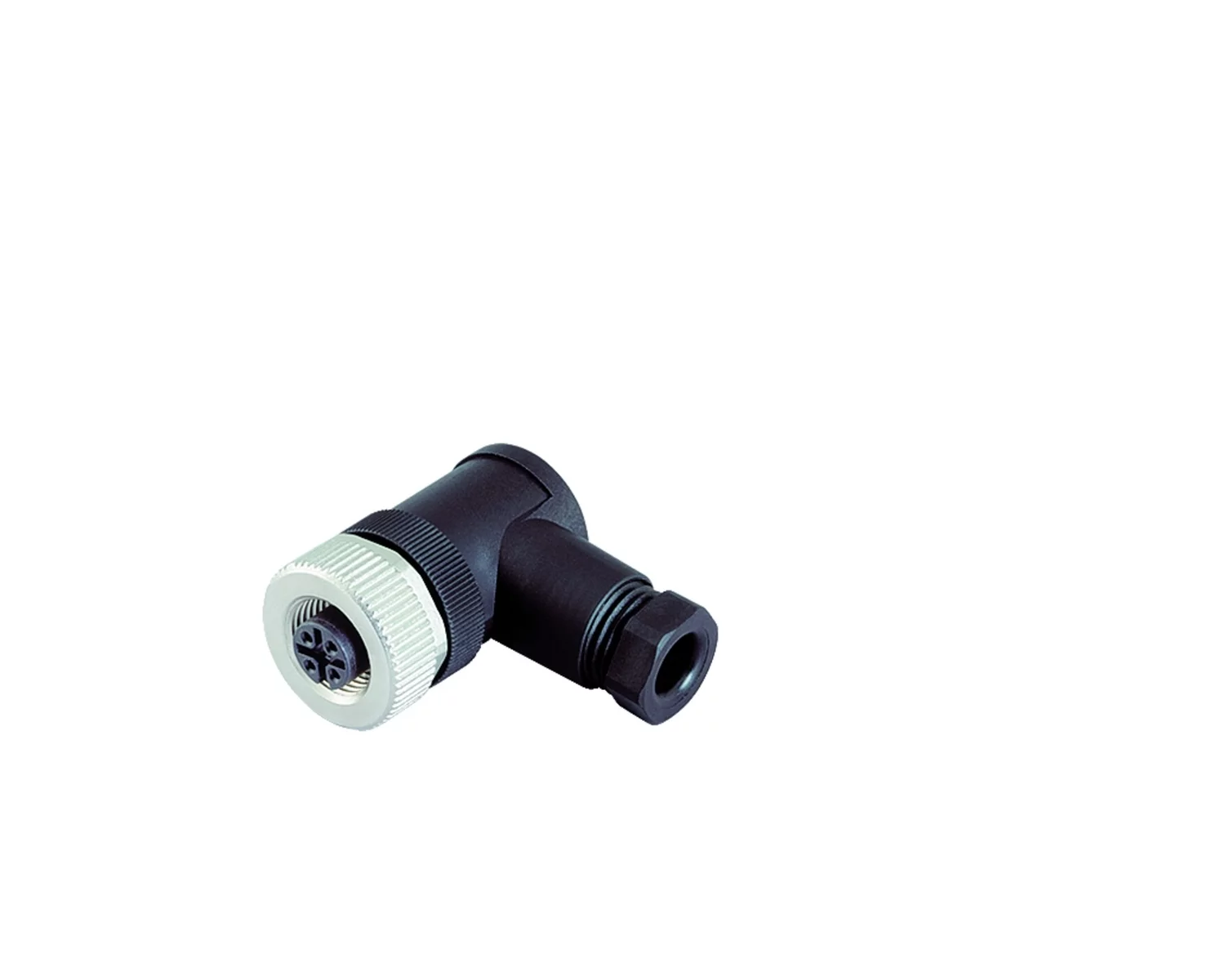

female angled connector
Crimp termination
99 0530 52 04
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Crimp |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >50 |

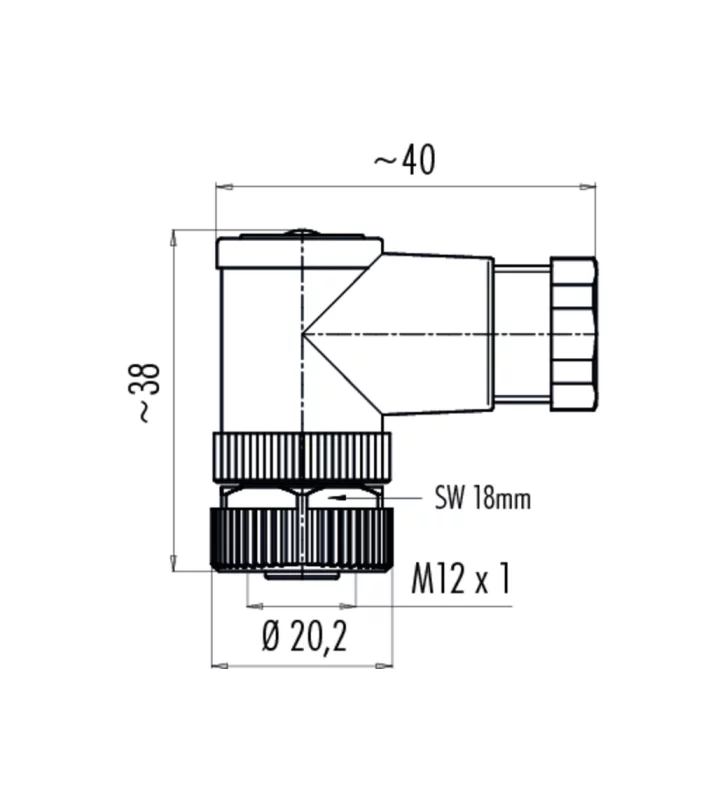

| Connector Diameter | 20.2 mm |
| Cable outlet | 6-8 mm |
| Wire gauge | 22-16 AWG |
| Wire-section | 0,34-1,5 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Material of contact | Cable outlet |
|---|---|---|
| 99 0530 24 04 | CuZn (Brass) | 4-6 mm |
