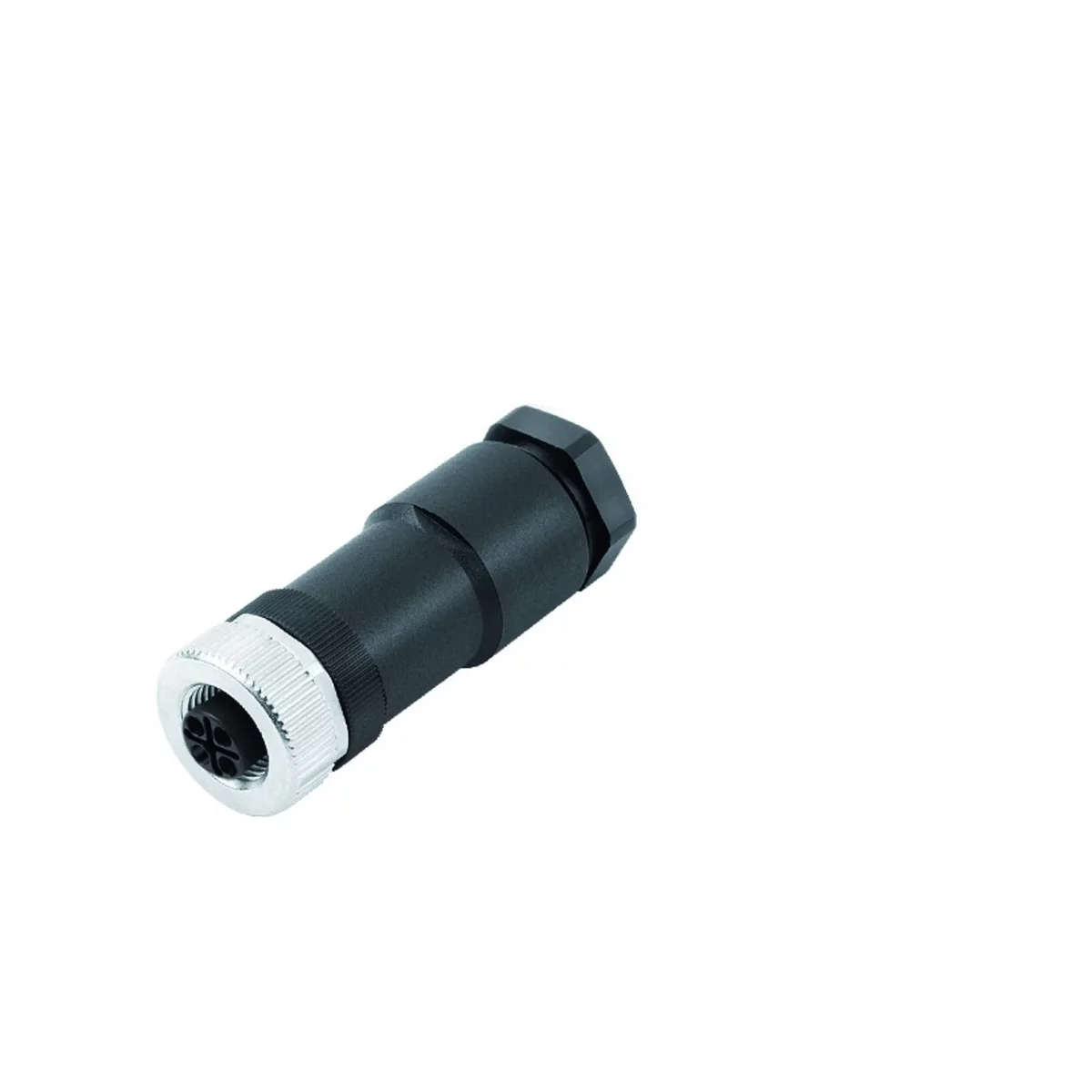

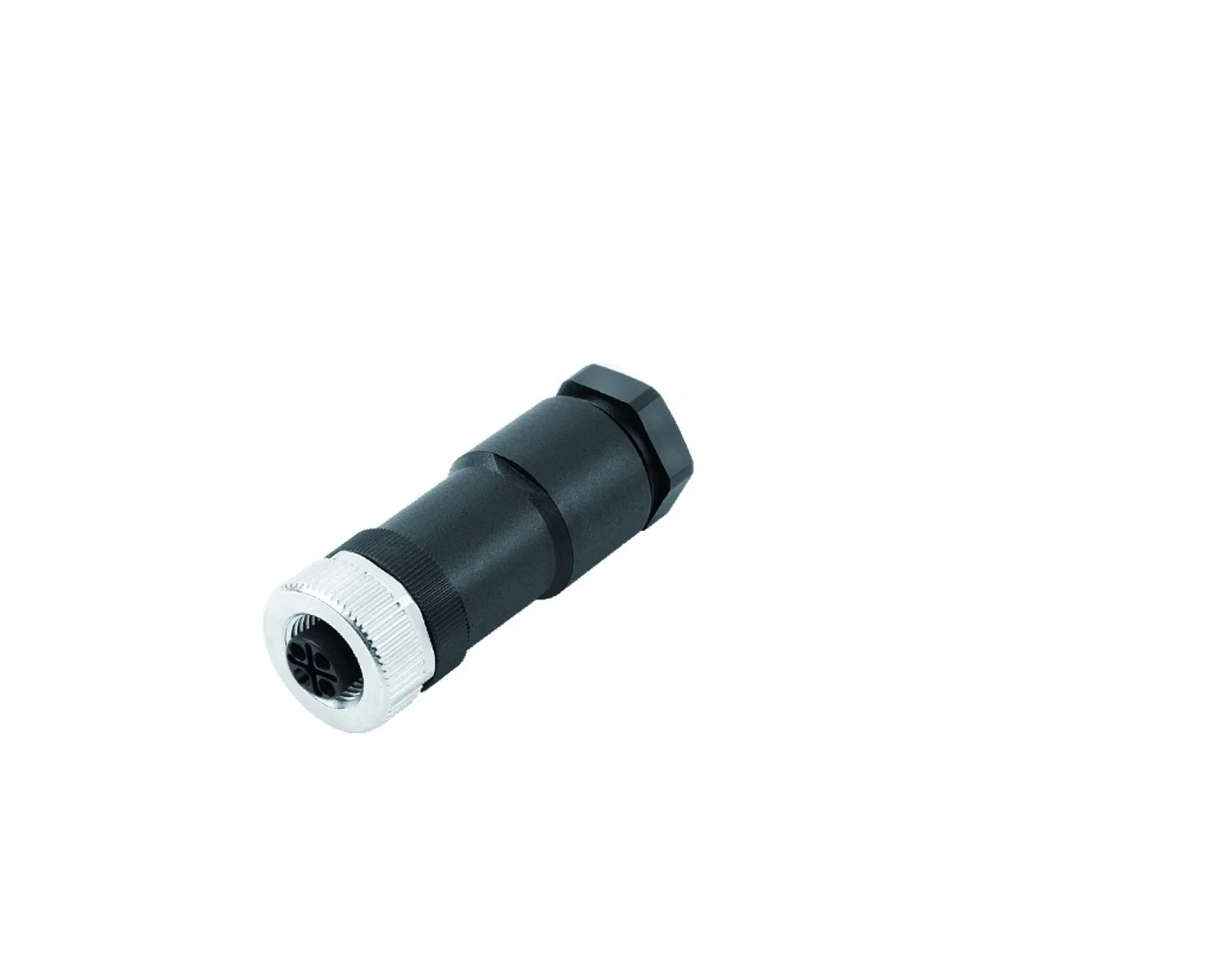

Female cable connector
Power, S-coding
99 0690 19 04
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-S |
|---|---|
| Series | Power |
| Subseries | 814 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Screw clamp with insulated ferules |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-S) |
| Mating cycles | >50 |

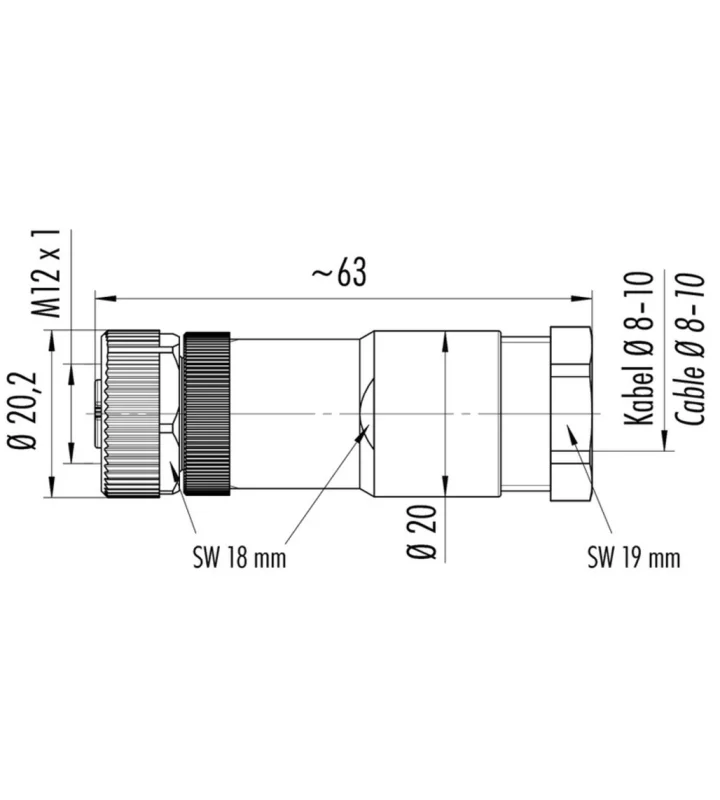

| Connector Diameter | 20.2 mm |
| Cable outlet | 8-10 mm |
| Wire-section | 1.5 mm² |
Electrical parameters
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 630 V |
| Impuls voltage | 6000 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Cable outlet | Wire-section |
|---|---|---|---|
| 99 0686 19 03 | 3 | 2.5 mm² |
