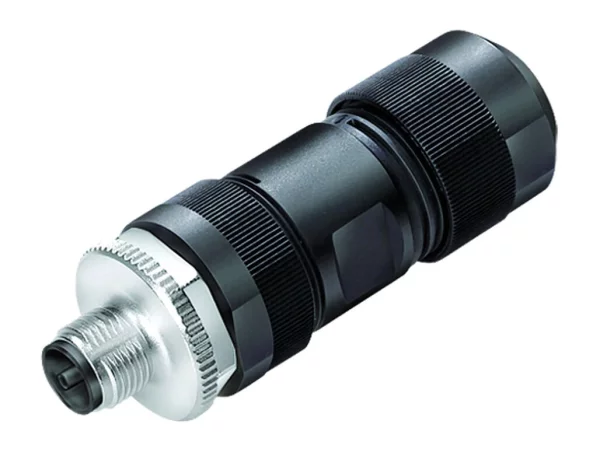

M12 Male cable connector
Unshielded, screw clamp
99 0699 29 05
Specifications
General Characteristics
| Series | Power |
|---|---|
| Subseries | 824 |
| Gender | Male |
| Number of contacts | 4+PE |
| Contact terminal | Screw clamp |
| Upper temperature | 85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw |
| Mating cycles | >100 |

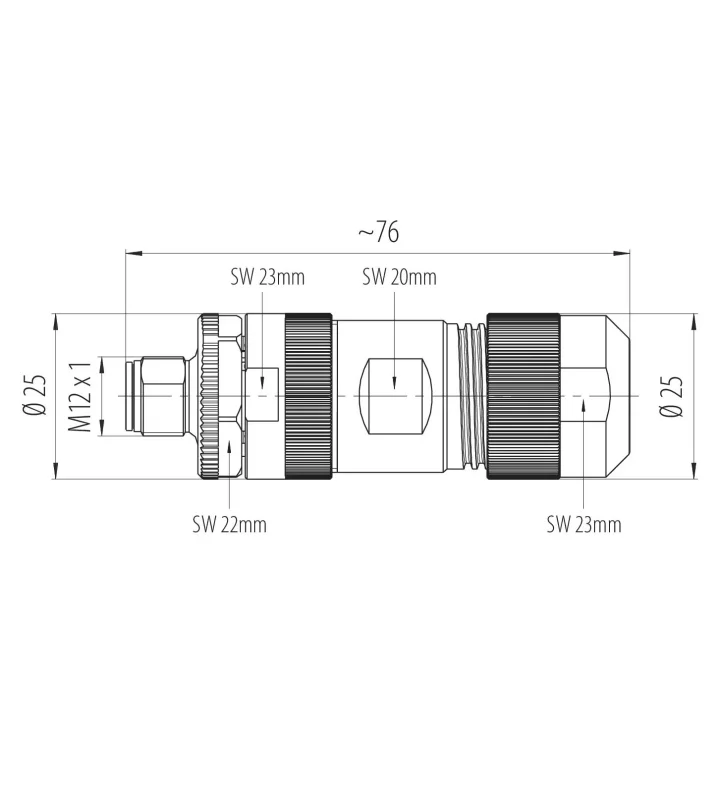

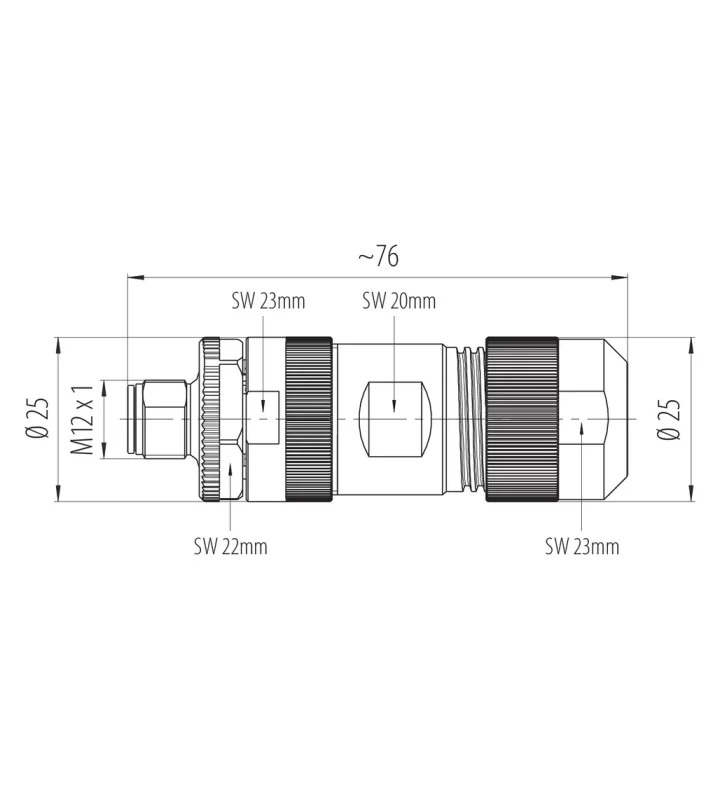

| Connector Diameter | 25 mm |
| Cable outlet | 2013-08-01 00:00:00 |
| Wire gauge | 16 with wire-end ferrule/ 14 without wire-end ferrule |
| Wire-section | Max. 1,50 with ferule/ max. 2,50 without ferule |
Electrical parameters
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 630 V |
| Impuls voltage | 6000 V |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | I |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
