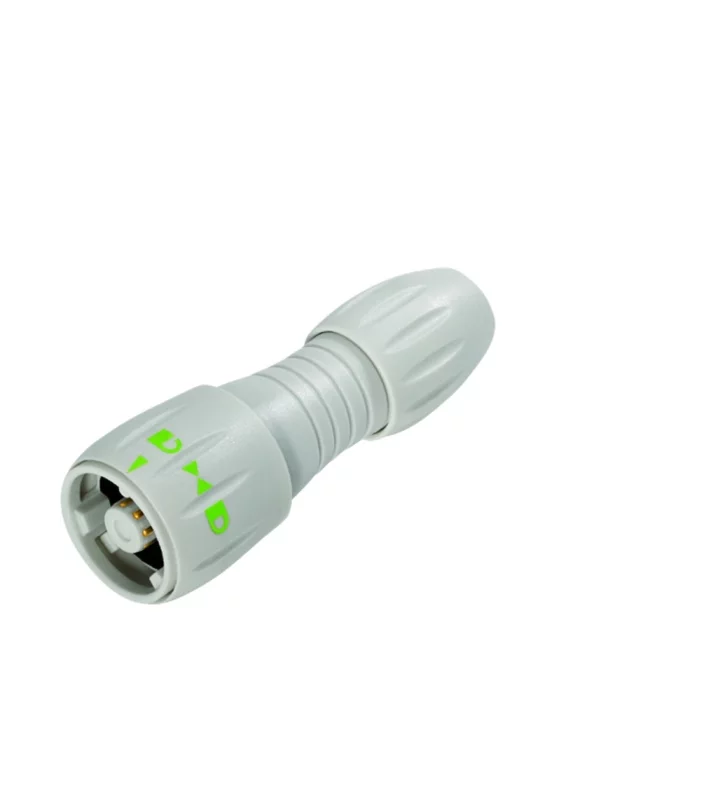

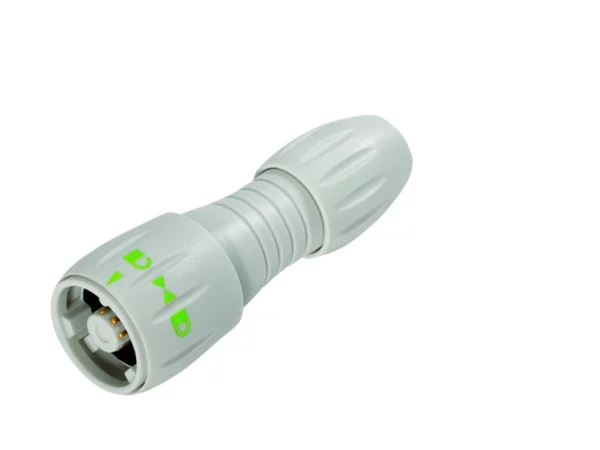

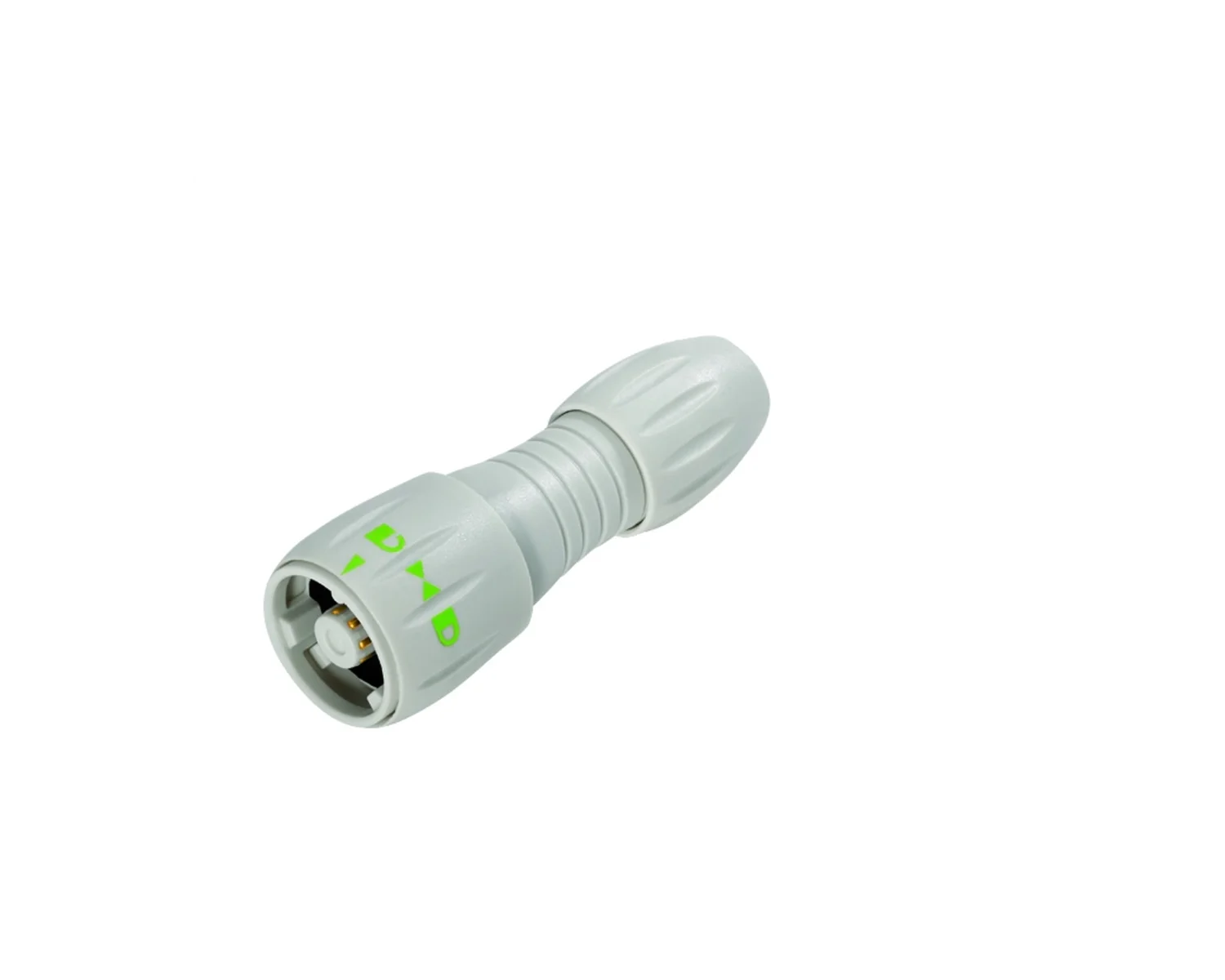

Male cable connector
Cable outlet 2,5-8
99 0771 402 08
Specifications
General Characteristics
|
Series |
Miniature
|
|
Subseries |
NCC 770 Medical
|
|
Gender |
Male
|
|
Number of contacts |
8
|
|
Contact terminal |
Solder
|
|
Upper temperature |
+85 °C
|
|
Lower temperature |
-25 °C
|
|
Protection degree |
IP67
|
|
Locking system |
Bayonet
|
|

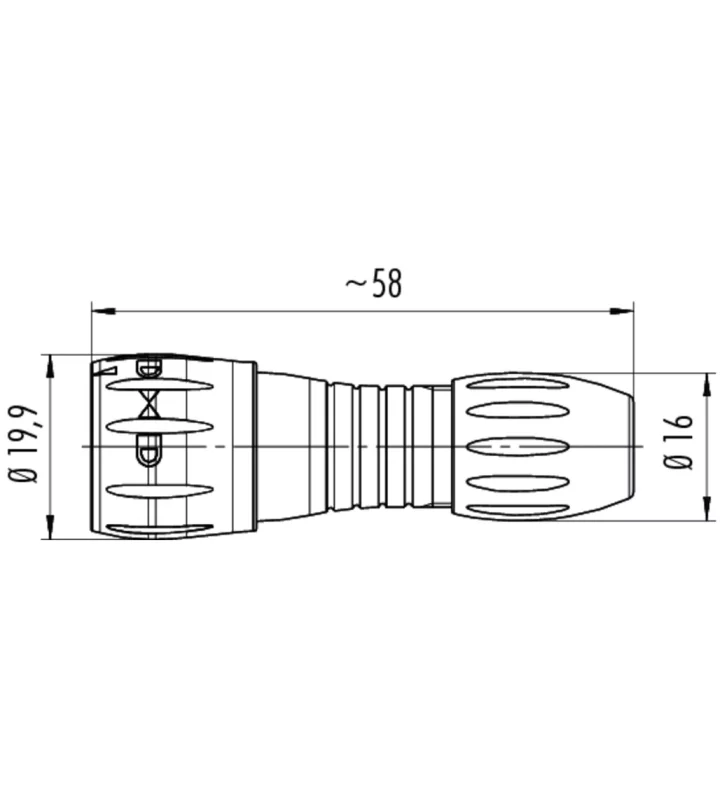

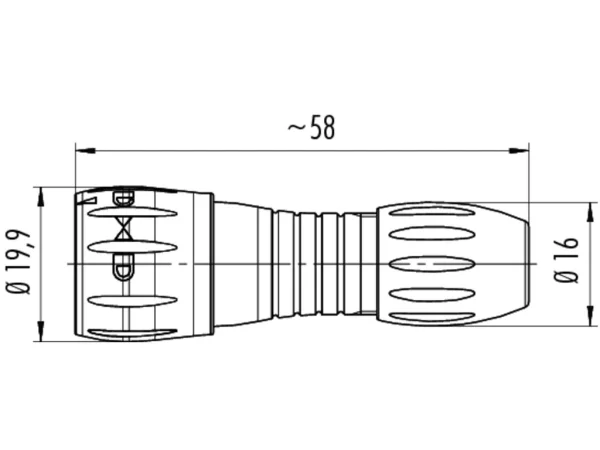

Connector Diameter |
19.9 mm
|
|
Cable outlet |
6-8 mm
|
|
Wire-section |
0.25 mm²
|
Electrical parameters
|
Nominal current |
2 A
|
|
Nominal voltage |
175 V
|
|
Impuls voltage |
1750 V
|
|
Max. contact resistance |
15 mΩ
|
|
Pollution degree |
2
|
|
Overvoltage categorie |
II
|
Material
|
Material group |
II
|
|
Material of insert |
PA (UL 94 H-B)
|
|
Material of housing |
PA (UL 94 V-0)
|
|
Material of contact |
CuZn (Brass)
|
|
Plating |
Au (Gold)
|
