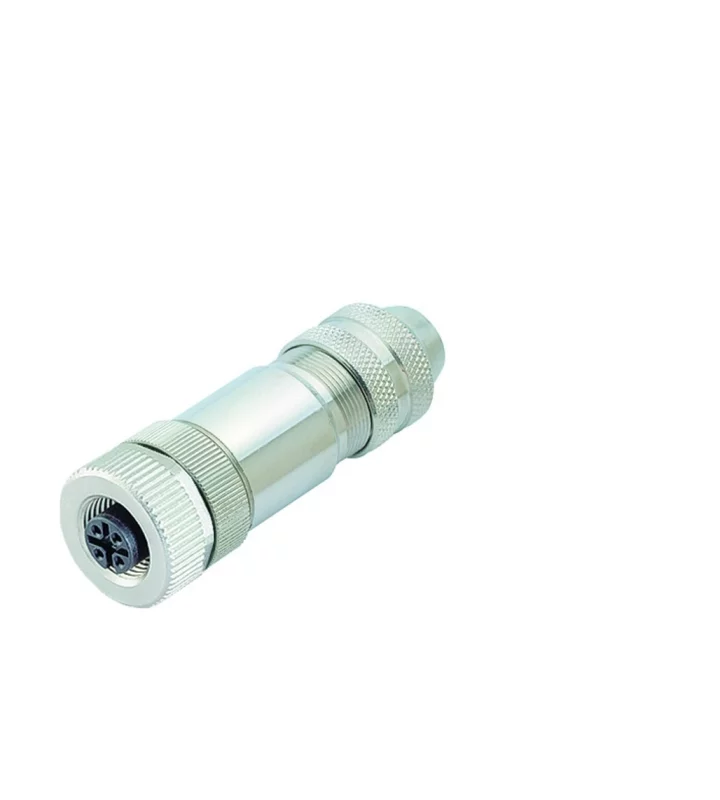

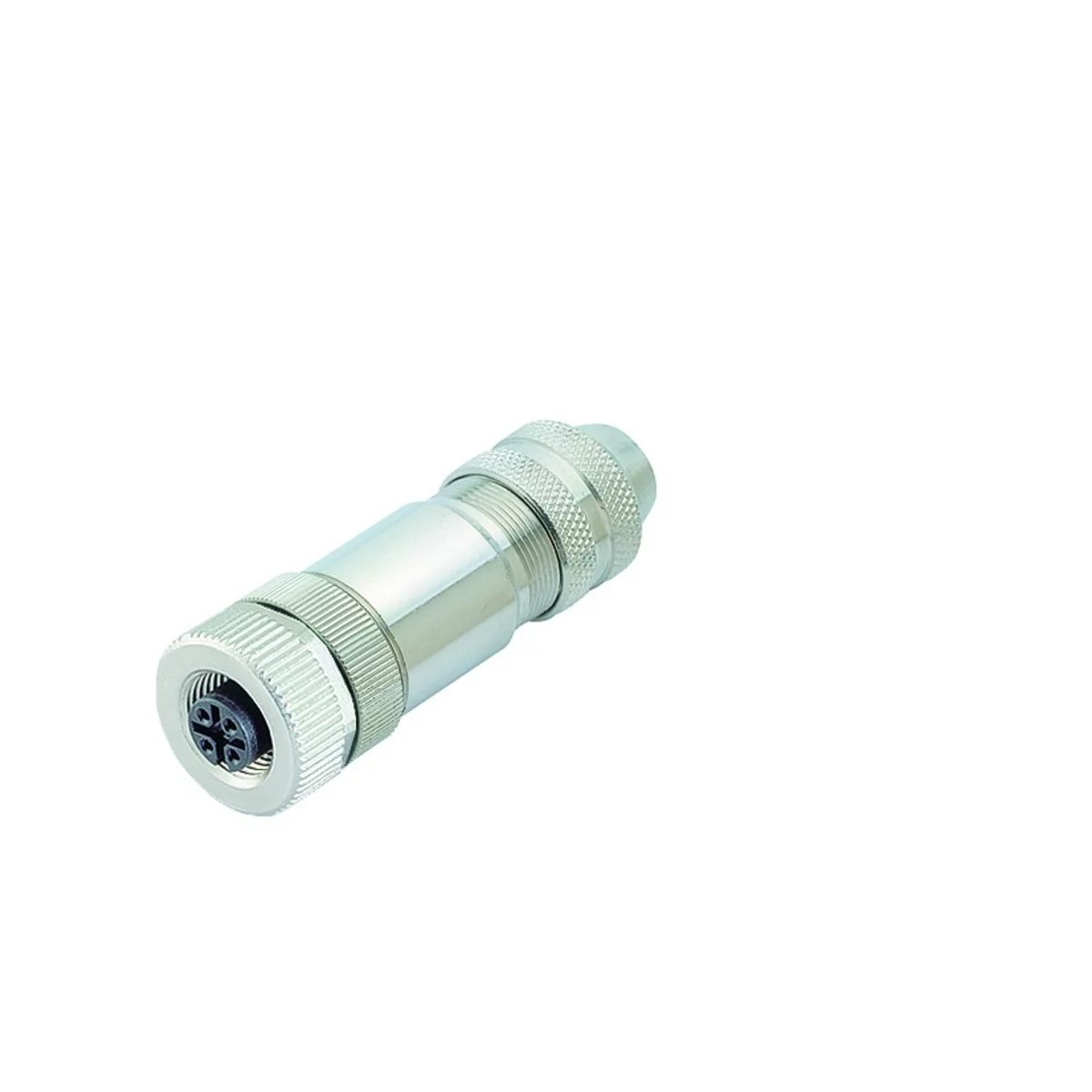

Female cable connector

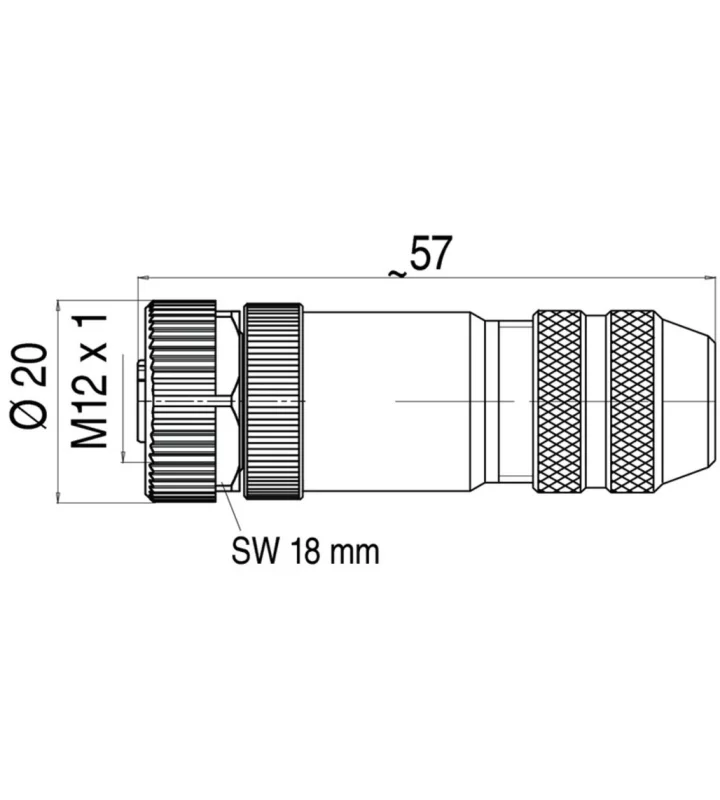

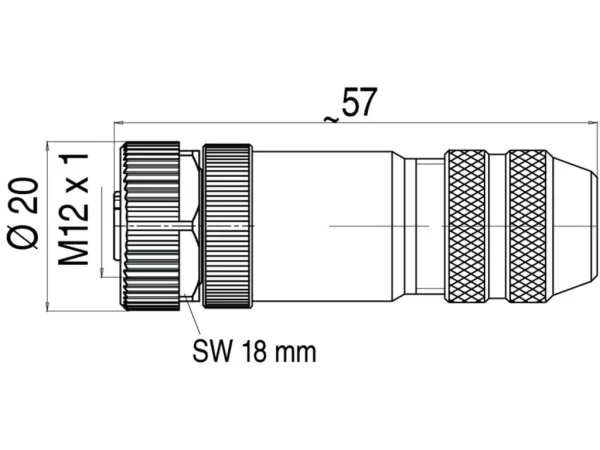

Shieldable, screw clamp connection, version with shielding ring, solder termination on 12 pol
UL-approval
99 1486 812 08
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Screw |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 20 mm |
| Cable outlet | 6-8 mm |
| Wire-section | 0.5 mm² |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Zinc diecasting nickel plated, brass nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Material of contact | Nominal Voltage | Cable outlet | Wire-section |
|---|---|---|---|---|---|---|---|---|
| 99 1430 814 04 | 4 | 250 V | Screw | 2500 V | CuZn (Brass) | >200 - ≤400 V | 4-6 mm | 0.75 mm² |
| 99 1430 812 04 | 4 | 250 V | Screw | 2500 V | CuZn (Brass) | >200 - ≤400 V | 6-8 mm | 0.75 mm² |
| 99 1436 814 05 | 5 | 125 V | Screw | 1500 V | CuZn (Brass) | ≤200 V | 4-6 mm | 0.75 mm² |
| 99 1436 812 05 | 5 | 125 V | Screw | 1500 V | CuZn (Brass) | ≤200 V | 6-8 mm | 0.75 mm² |
| 99 1492 812 12 | 12 | 30 V | Solder | 500 V | CuSn (Bronze) | ≤200 V | 6-8 mm | 0.25 mm² |
