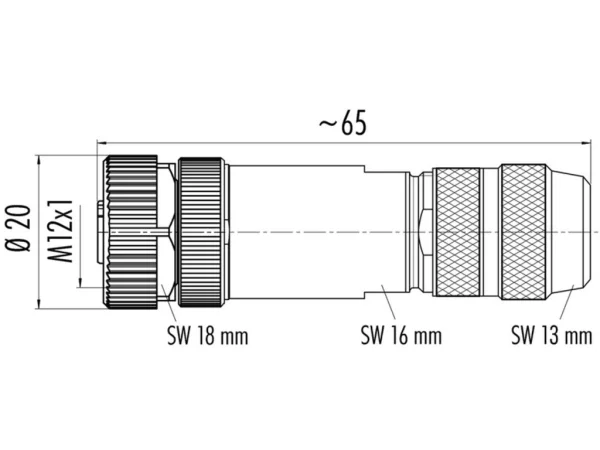

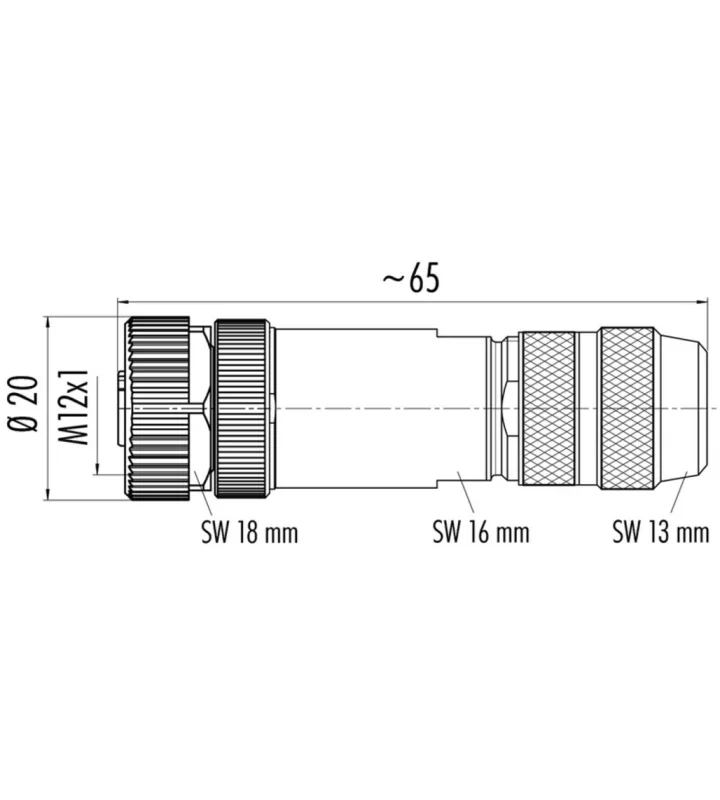

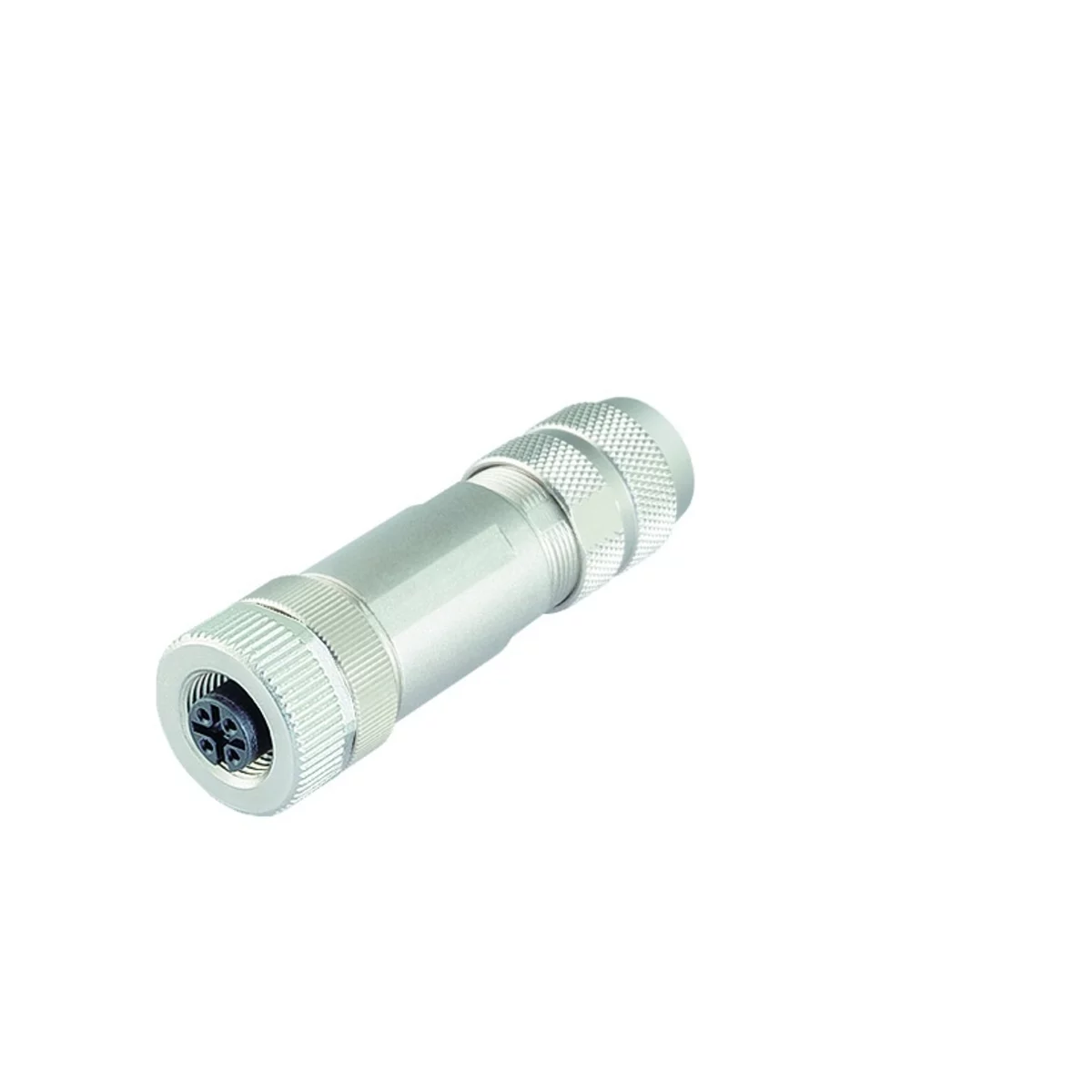

Female cable connector
Shieldable, wire clamp connection, iris type spring
99 1534 810 05
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-B |
|---|---|
| Series | Sensor |
| Subseries | 715 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Wire clamp |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-B) |
| Mating cycles | >100 |
| Connector Diameter | 20 mm |
| Cable outlet | 5-8 mm |
| Wire-section | 0.5 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | Zinc diecasting nickel plated, stainless steel 1.4404 |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Cable outlet |
|---|---|
| 99 1534 910 05 | 8-9 mm |
