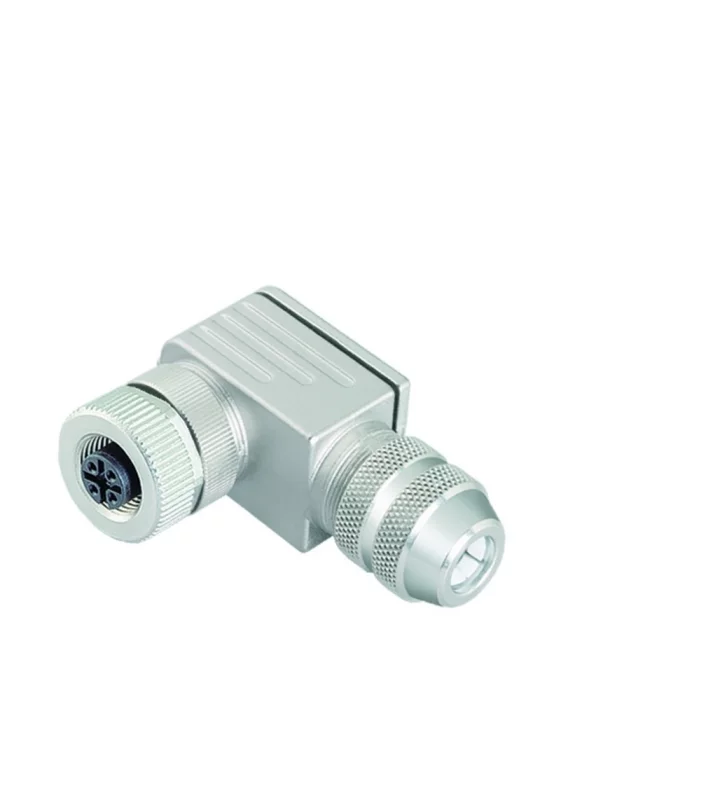

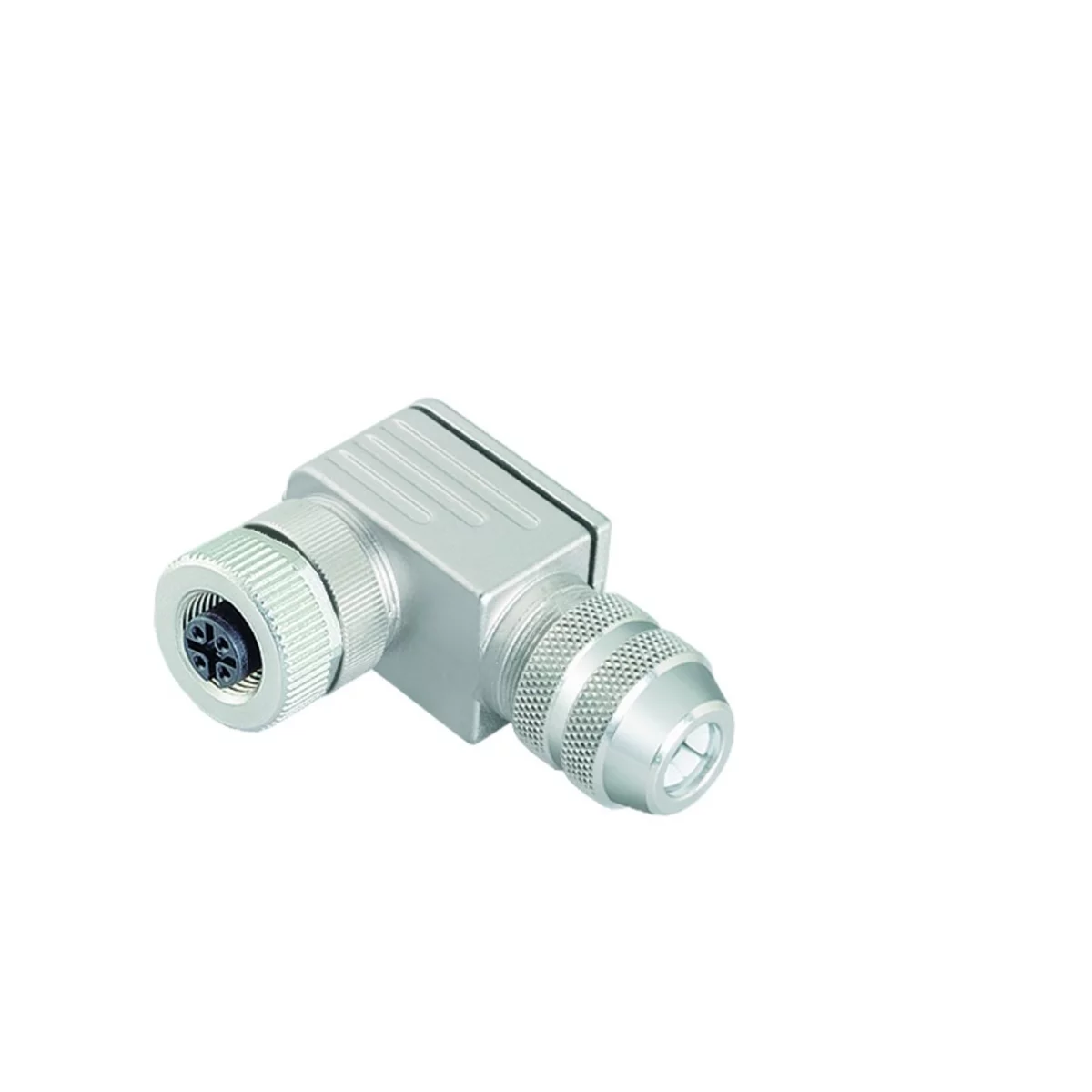

Female angled connector
Shieldable, with wire clamp connection, version with shielding ring
99 1538 822 05
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Wire clamp |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |

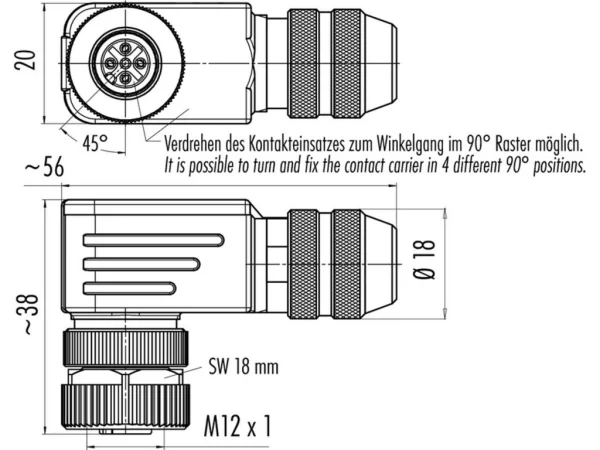

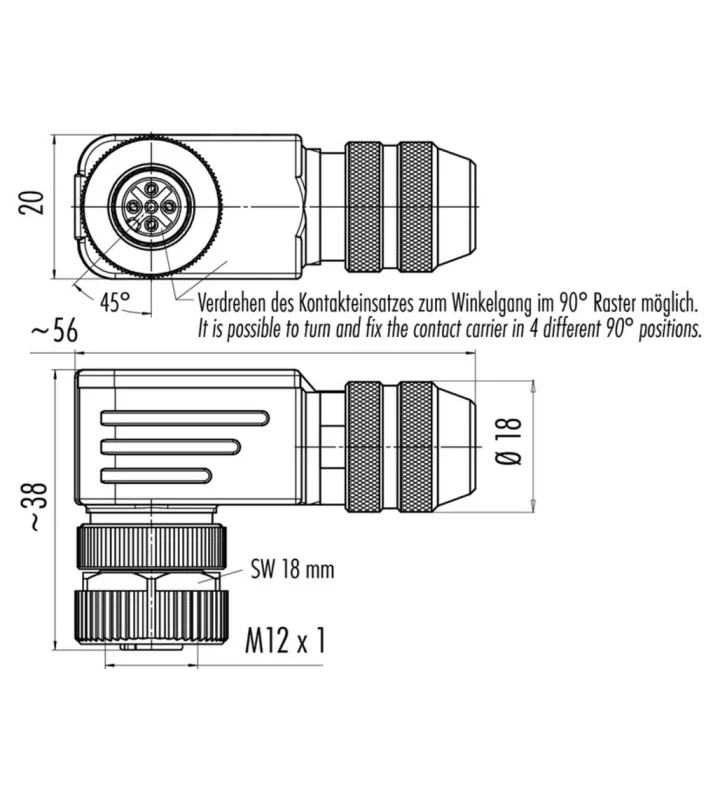

| Connector Diameter | 20 mm |
| Cable outlet | 6-8 mm |
| Wire-section | 0.5 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | PBT, zinc diecasting nickel plated |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Cable outlet |
|---|---|---|---|---|---|
| 99 1526 824 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 4-6 mm |
| 99 1526 822 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 6-8 mm |
| 99 1538 824 05 | 5 | 125 V | 1500 V | ≤200 V | 4-6 mm |
