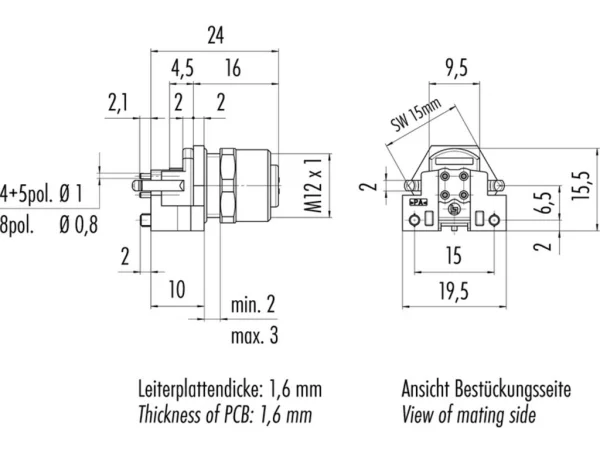

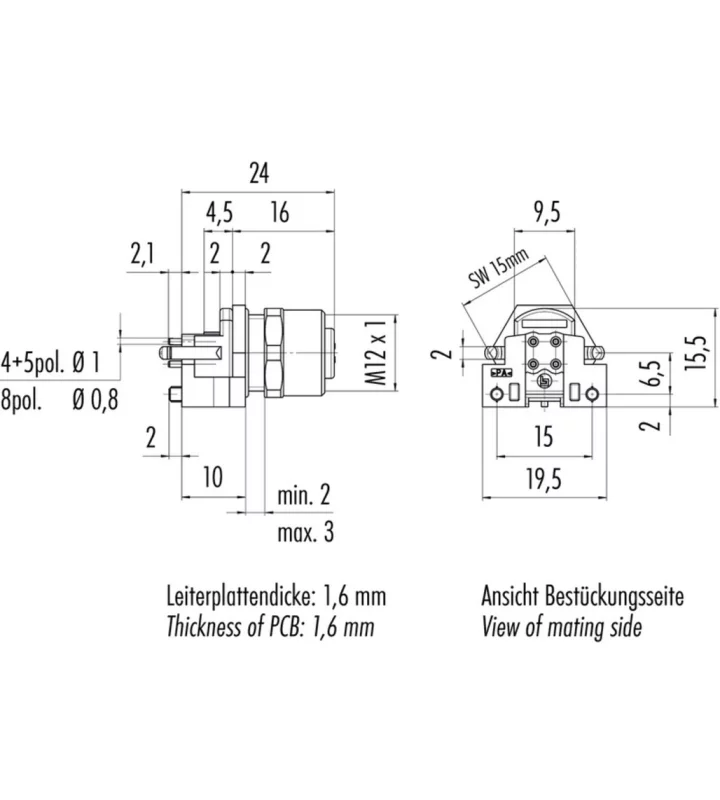

Female receptacle
for PCB assembly, straight
UL-approval
99 3432 200 04
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 19.5 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|
| 99 3432 458 04 | 4 | 250 V | 2500 V | >200 - ≤400 V |
| 99 3442 200 05 | 5 | 125 V | 1500 V | ≤200 V |
| 99 3442 458 05 | 5 | 125 V | 1500 V | ≤200 V |
| 99 3482 200 08 | 8 | 60 V | 800 V | ≤200 V |
| 99 3482 458 08 | 8 | 60 V | 800 V | ≤200 V |
