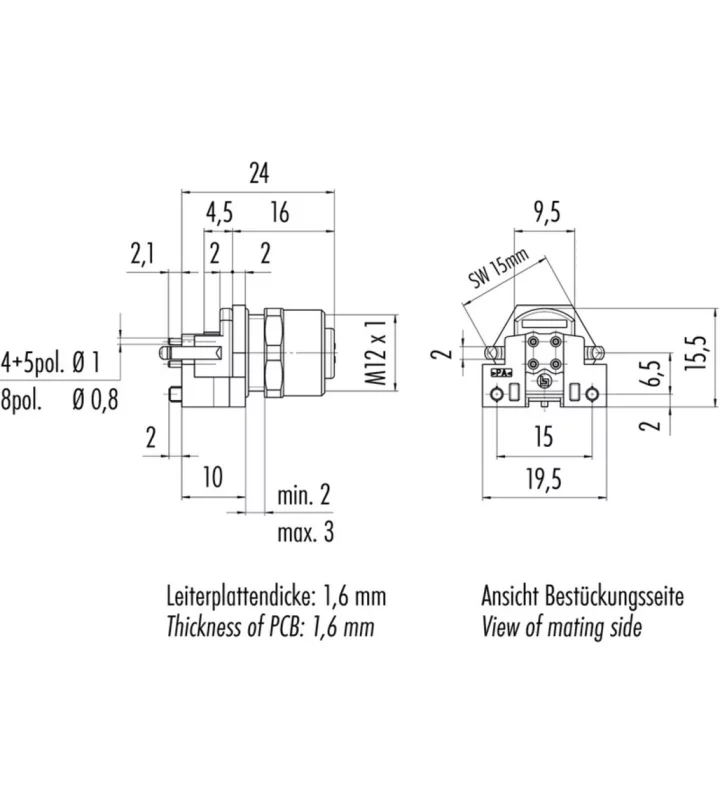

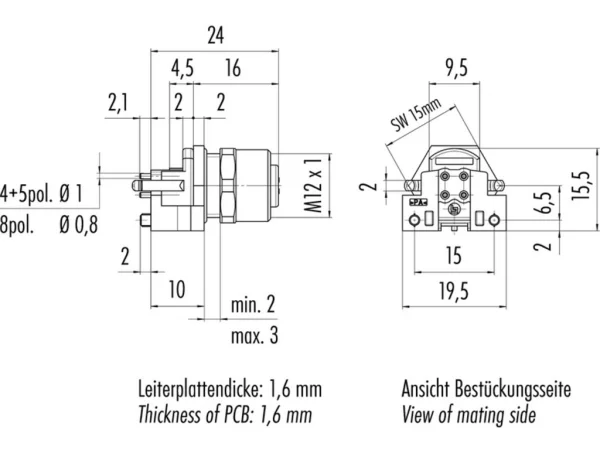

Female receptacle
for PCB assembly, straight
With shielding sheet, UL approval
99 3432 458 04
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 19.5 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|
| 99 3432 200 04 | 4 | 250 V | 2500 V | >200 - ≤400 V |
| 99 3442 200 05 | 5 | 125 V | 1500 V | ≤200 V |
| 99 3442 458 05 | 5 | 125 V | 1500 V | ≤200 V |
| 99 3482 200 08 | 8 | 60 V | 800 V | ≤200 V |
| 99 3482 458 08 | 8 | 60 V | 800 V | ≤200 V |
