Male receptacle
for PCB assembly, angled
UL approval
99 3481 202 08
Specifications
General Characteristics
| Screw size | M12 |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 19.5 mm |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 600 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations

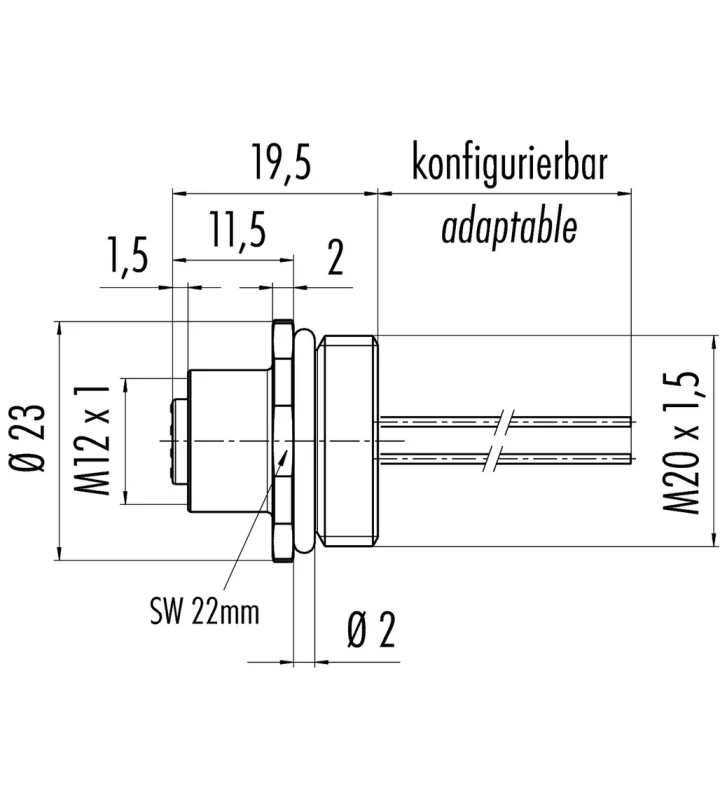

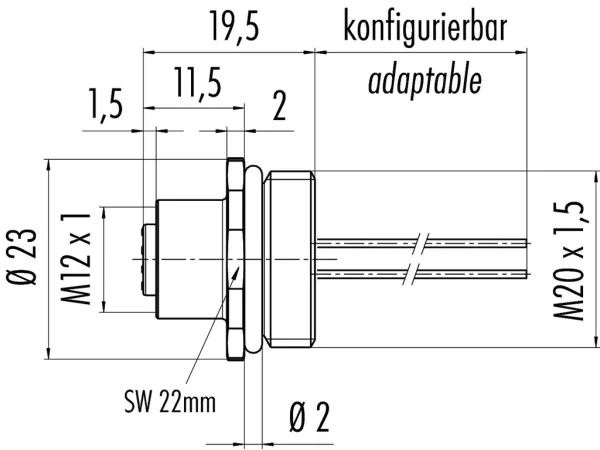

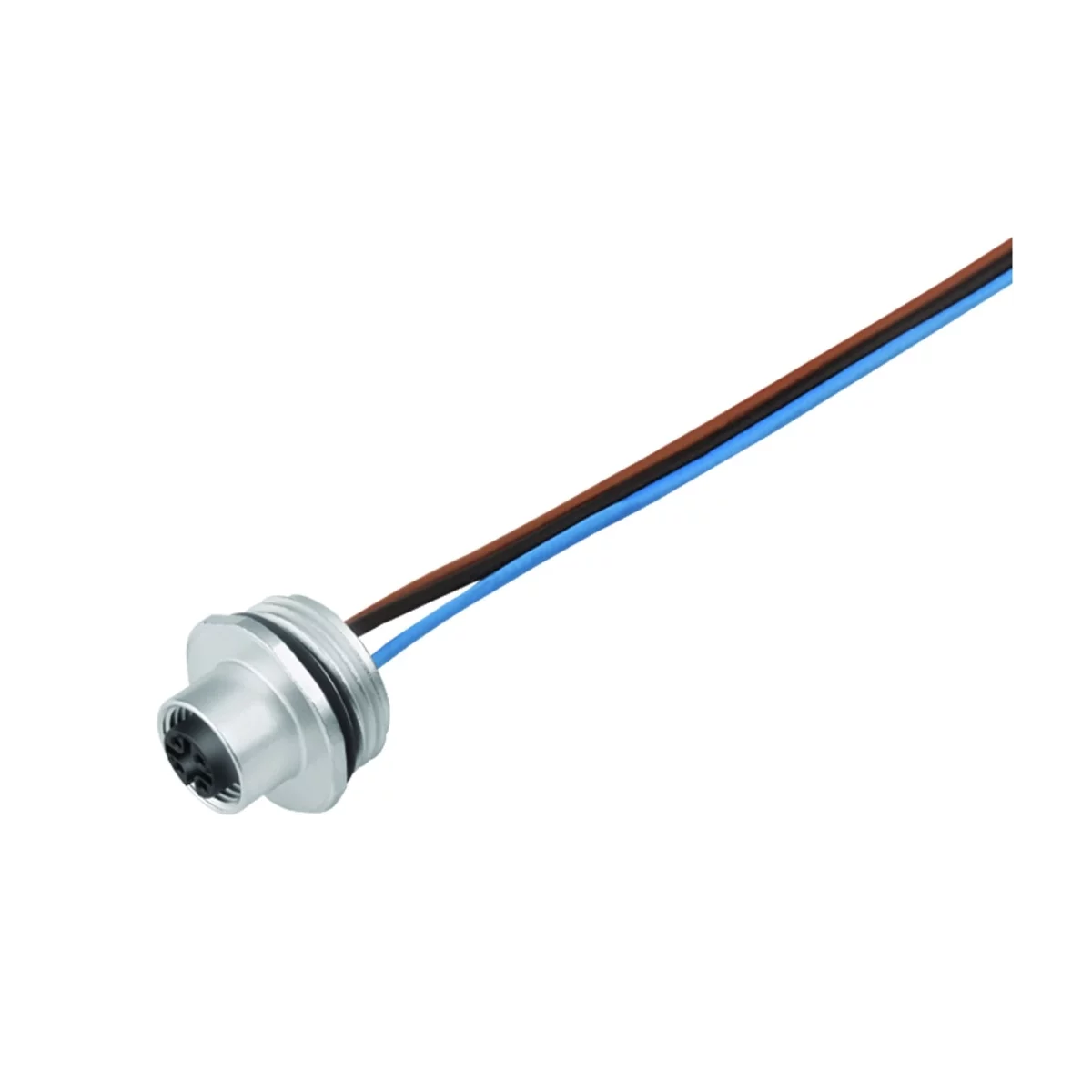

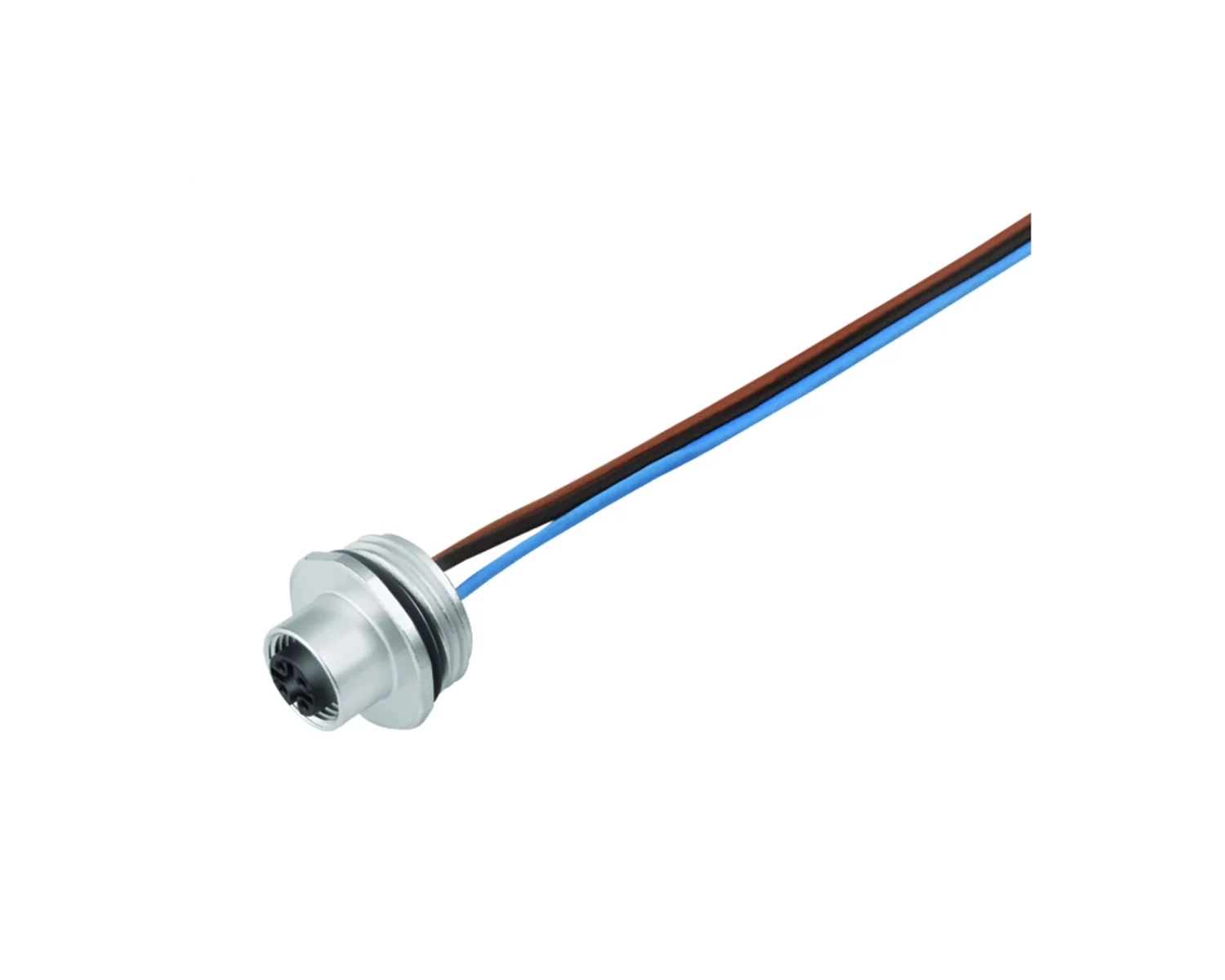

| Item number | Number of contacts | Material group | Nominal voltage | Contact terminal | Gender | Impuls voltage | Material of housing | Material of contact | Connector Diameter (mm) | IP Protection | Protection degree | Nominal Voltage | Connector Diameter | Wire-section | Fixing thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 76 0432 0111 00004 0200 | 4 | II | 250 V | Single wires | Female | 2500 V | CuZn (Brass nickel plated) | CuSn (Bronze) | 23 mm | IP67 | IP67 | >200 - ≤400 V | 23 mm | 0.25 mm² | |
| 76 0432 0111 00005 0200 | 5 | II | 125 V | Dip solder | Female | 1500 V | Zinc diecasting nickel plated | CuSn (Bronze) | 23 mm | IP67 | IP67 | ≤200 V | 23 mm | 0.25 mm² | M20 x 1,5 |
| 76 0432 0111 00008 0200 | 8 | II | 60 V | Dip solder | Female | 800 V | Zinc diecasting nickel plated | CuSn (Bronze) | 23 mm | IP67 | IP67 | ≤200 V | 23 mm | 0.25 mm² | M20 x 1,5 |
| 99 3481 601 08 | 8 | III | 600 V | Dip solder | Male | 800 V | CuZn (Brass nickel plated) | CuZn (Brass) | 19.5 mm | IP68 | IP68 | >400 - ≤600 V | 19.5 mm | ||
| 99 3482 202 08 | 8 | III | 600 V | Dip solder | Female | 800 V | CuZn (Brass nickel plated) | CuSn (Bronze) | 19.5 mm | IP68 | IP68 | >400 - ≤600 V | 19.5 mm | ||
| 99 3482 601 08 | 8 | III | 600 V | Dip solder | Female | 800 V | CuZn (Brass nickel plated) | CuSn (Bronze) | 19.5 mm | IP68 | IP68 | >400 - ≤600 V | 19.5 mm |
