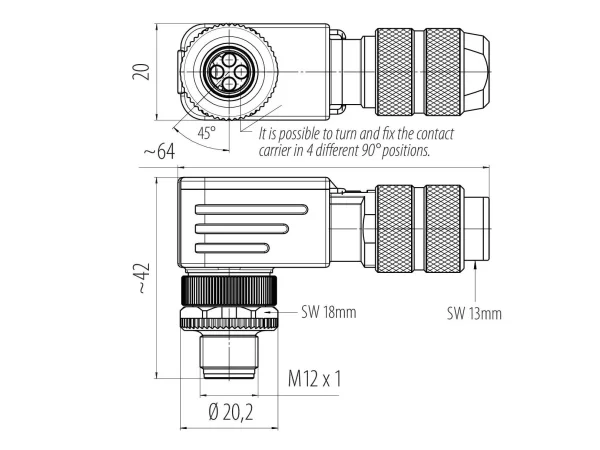

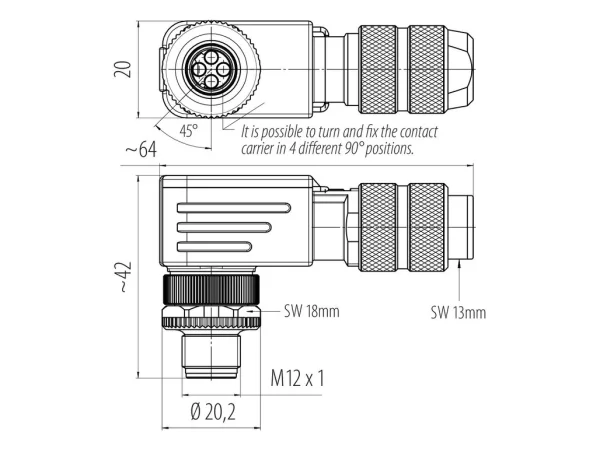

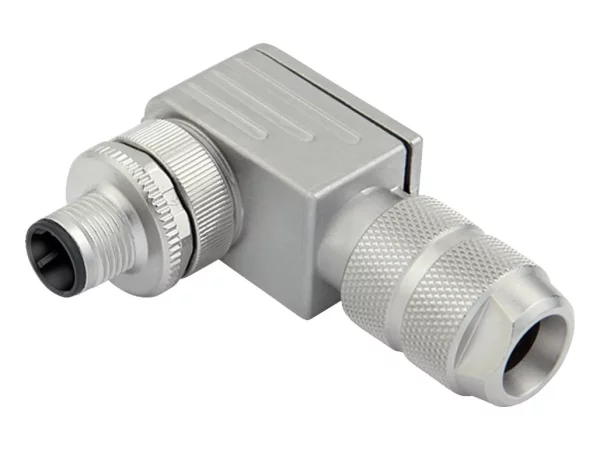

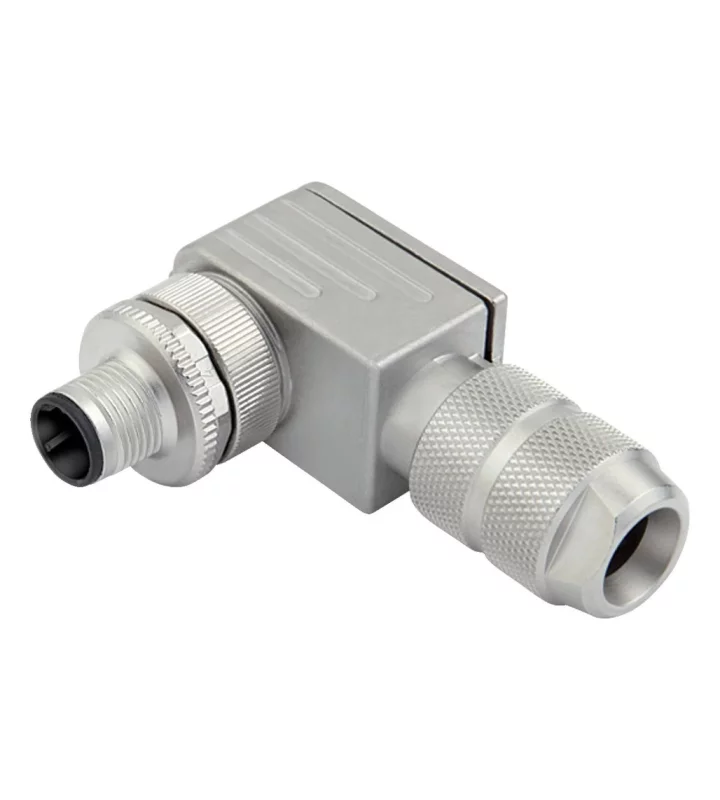

M12 Male angled connector
Shieldable, crimping
99 3721 820 04
Specifications
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 825 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Crimp |
| Upper temperature | 85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw |
| Mating cycles | >100 |
| Connector Diameter | 20.2 mm |
| Cable outlet | 2026-08-05 00:00:00 |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | Zinc die-cast nickel-plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
