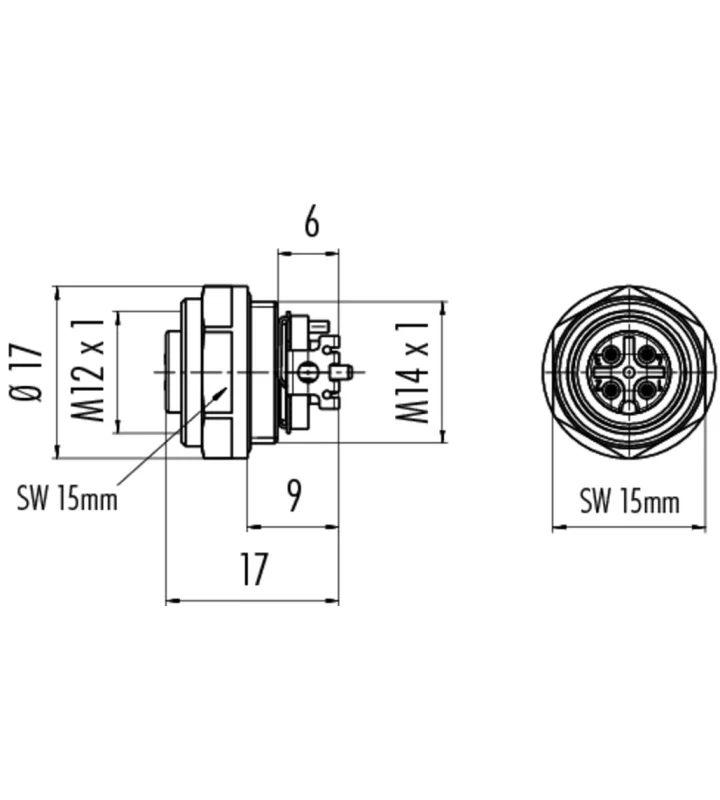

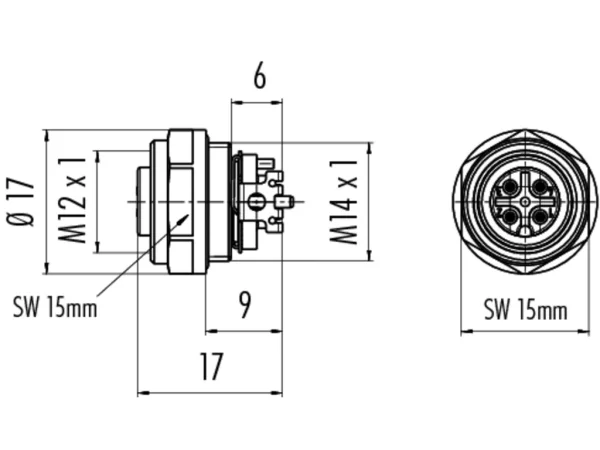

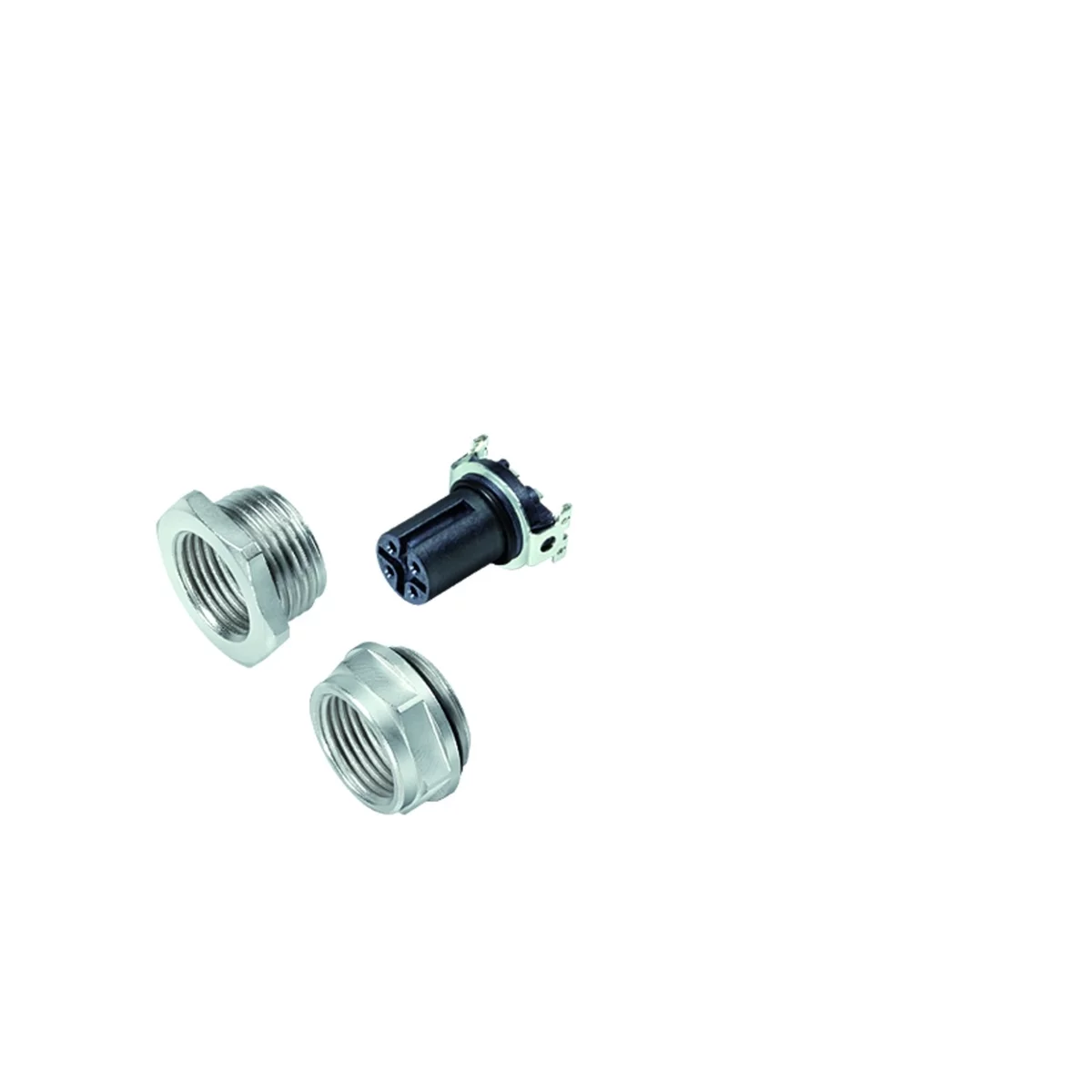

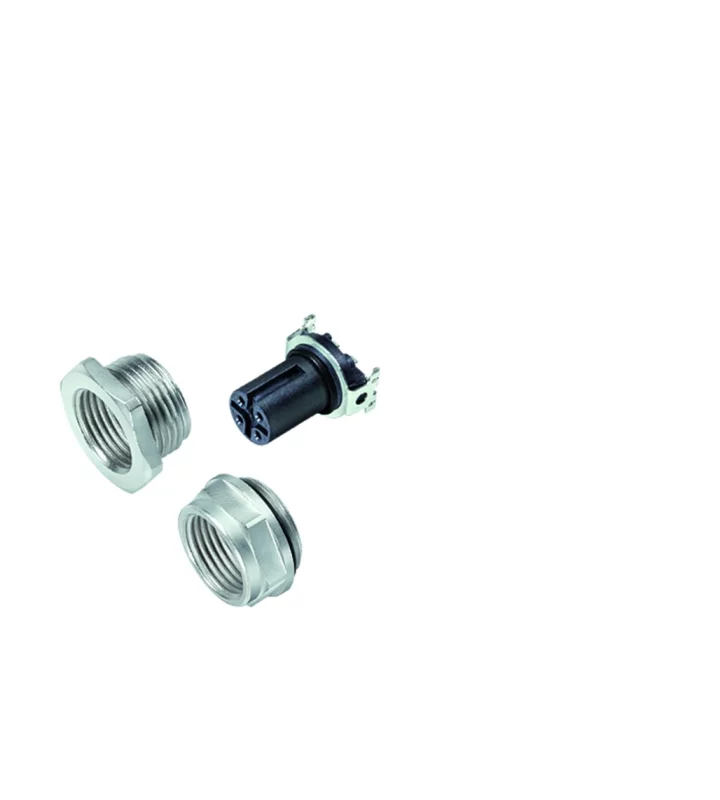

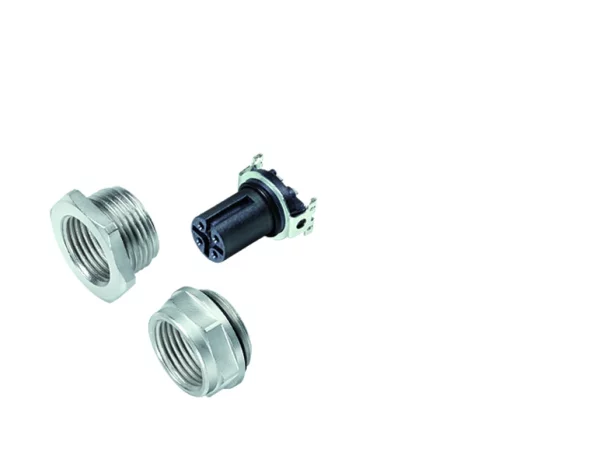

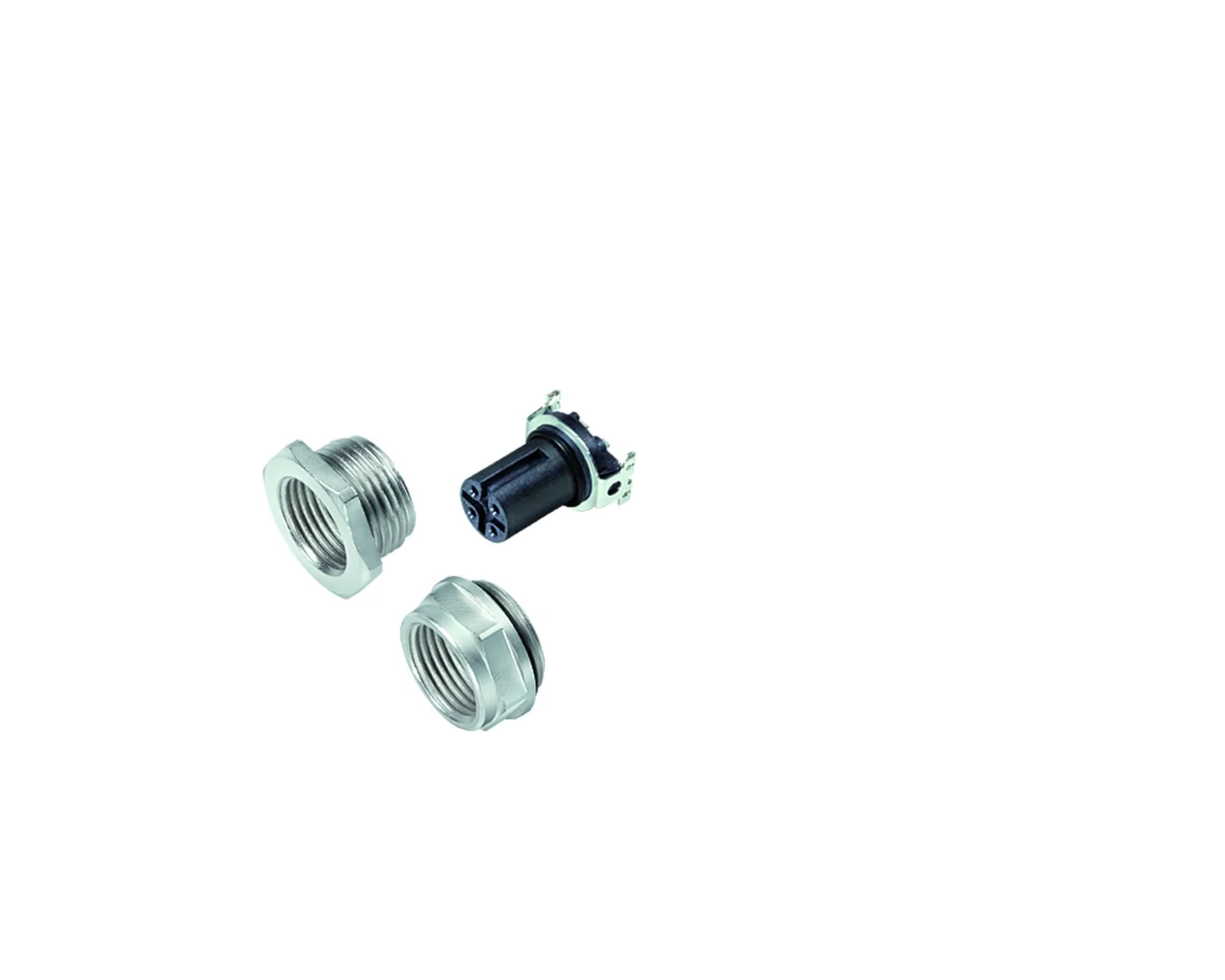

Female panel mount connector
SMT, with housing
Shieldable
99 4442 401 05
Specifications
General Characteristics
| Screw size | M12-B |
|---|---|
| Series | Sensor |
| Subseries | 715-766 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | SMT |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-B) |
| Mating cycles | >100 |
| Connector Diameter | 19 mm |
| Mounting height | 9 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 1500 V |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Mounting height |
|---|---|---|---|---|---|
| 99 4432 401 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 9 mm |
| 99 4432 402 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 13 mm |
| 99 4442 402 05 | 5 | 60 V | 1500 V | ≤200 V | 13 mm |
