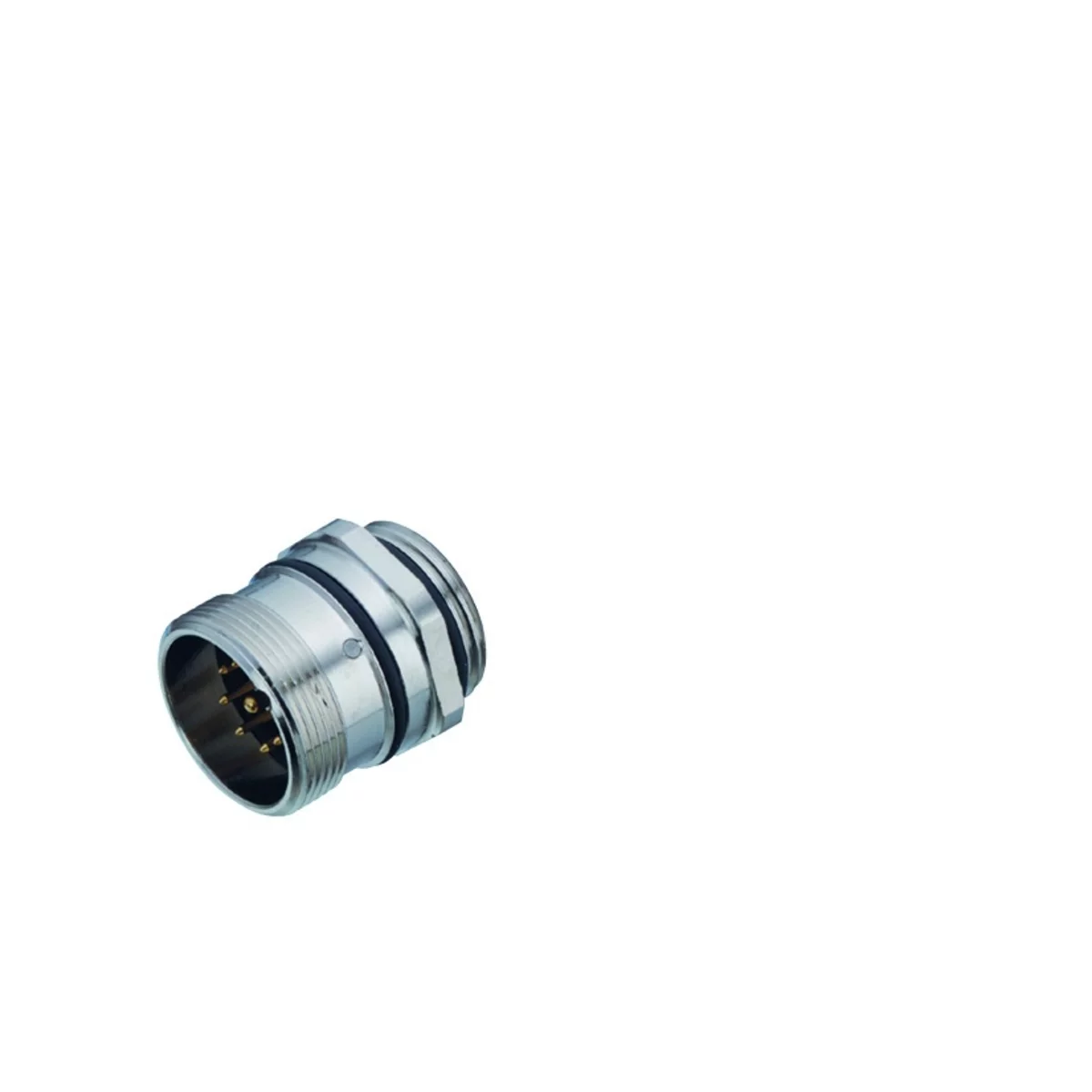

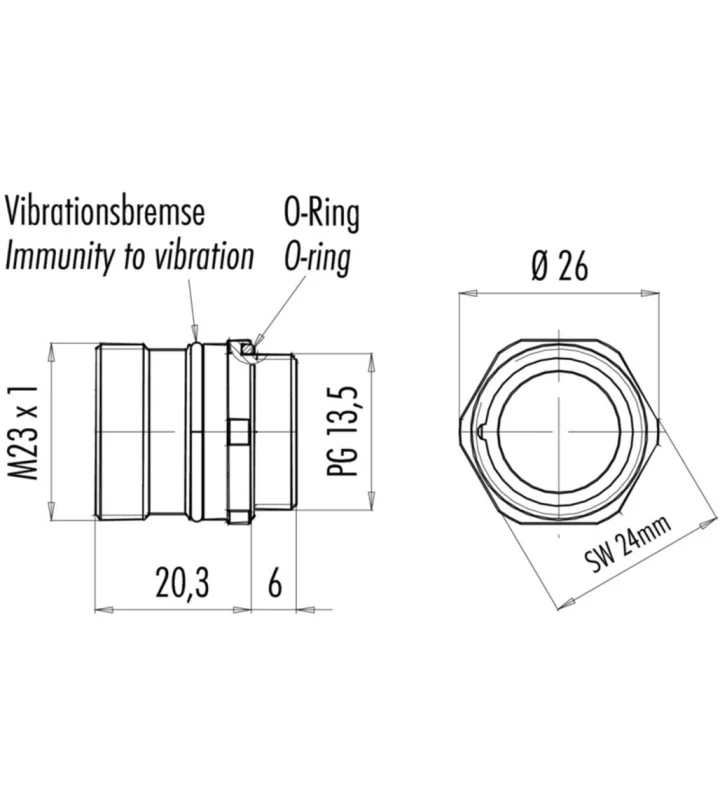

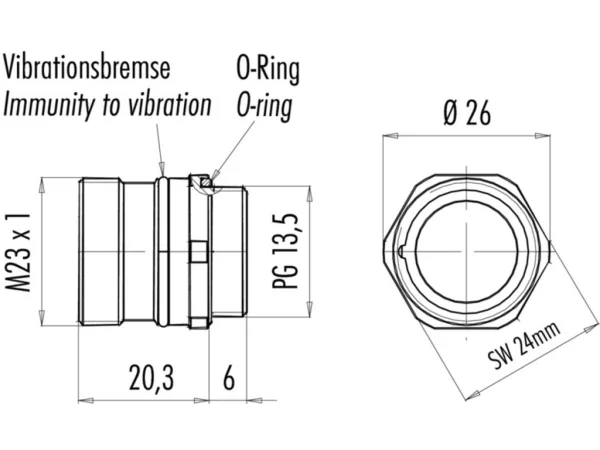

Male panel mount connector
Center fastened, PG 13,5
99 4603 20 09
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M23 |
|---|---|
| Series | Power |
| Subseries | 623 |
| Gender | Male |
| Number of contacts | 9 |
| Contact terminal | Solder |
| Upper temperature | +125 °C |
| Lower temperature | -20 °C |
| Protection degree | IP67 |
| Locking system | Screw (M23) |
| Mating cycles | >50 |
| Connector Diameter | 26 mm |
| Contact Type | Clockwise |
| Wire-section | 8 x 1,5 / 1 x 2,5 mm² |
Electrical parameters
| Nominal current | 8 x 8 / 1 x 20 A |
|---|---|
| Nominal voltage | 300 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PBT/PA66 |
| Material of housing | Zinc die cast nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|
| 99 4637 20 06 | >10 - ≤20 A | 6 | 300 V | 2500 V | >200 - ≤400 V | 2.5 mm² |
| 99 4607 20 12 | >5 - ≤10 A | 12 | 150 V | 1500 V | ≤200 V | 1 mm² |
| 99 4611 20 16 | >5 - ≤10 A | 16 | 150 V | 1500 V | ≤200 V | 1 mm² |
| 99 4633 20 19 | >5 - ≤10 A | 19 | 150 V | 1500 V | ≤200 V | 16 x 1 / 3 x 1,5 mm² |
