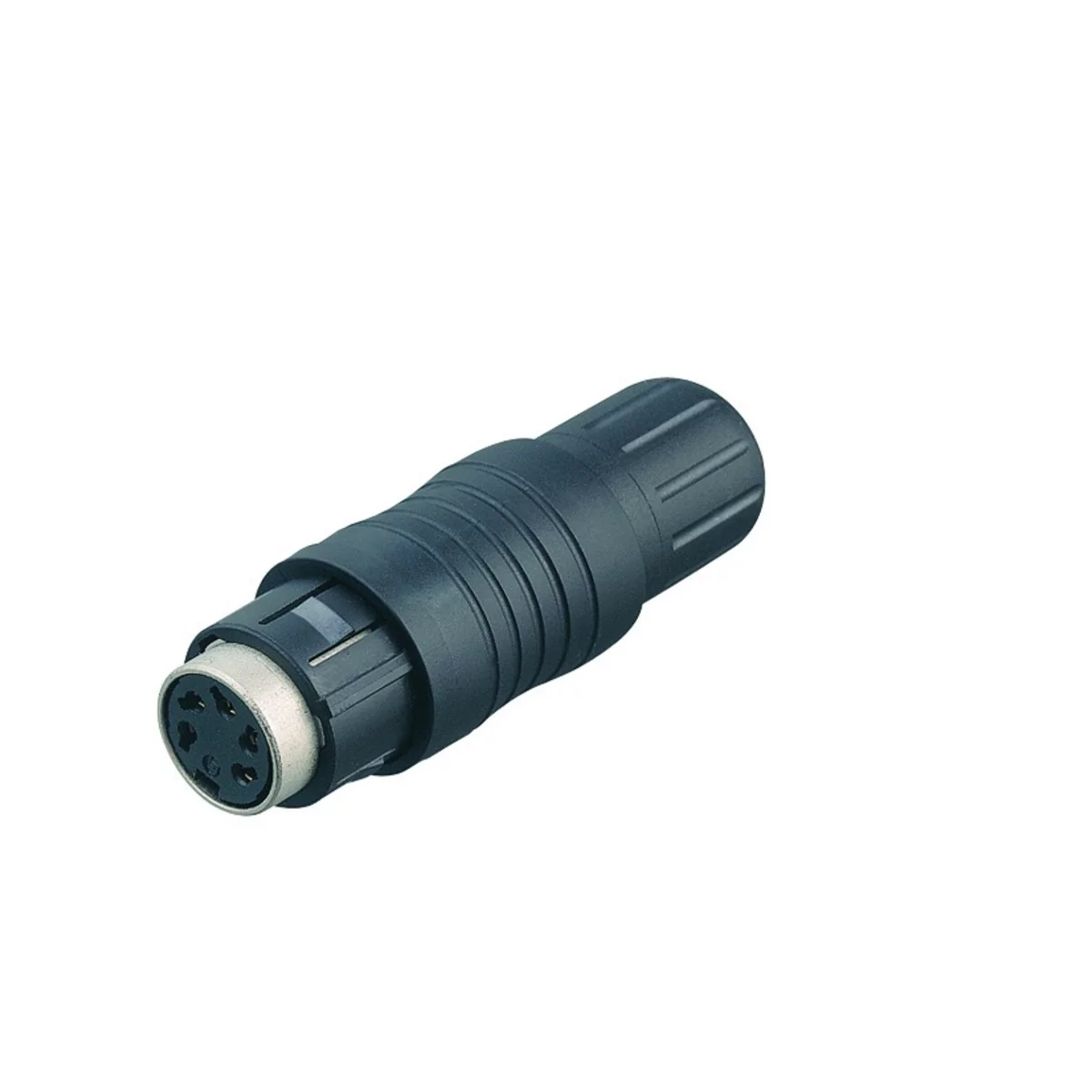

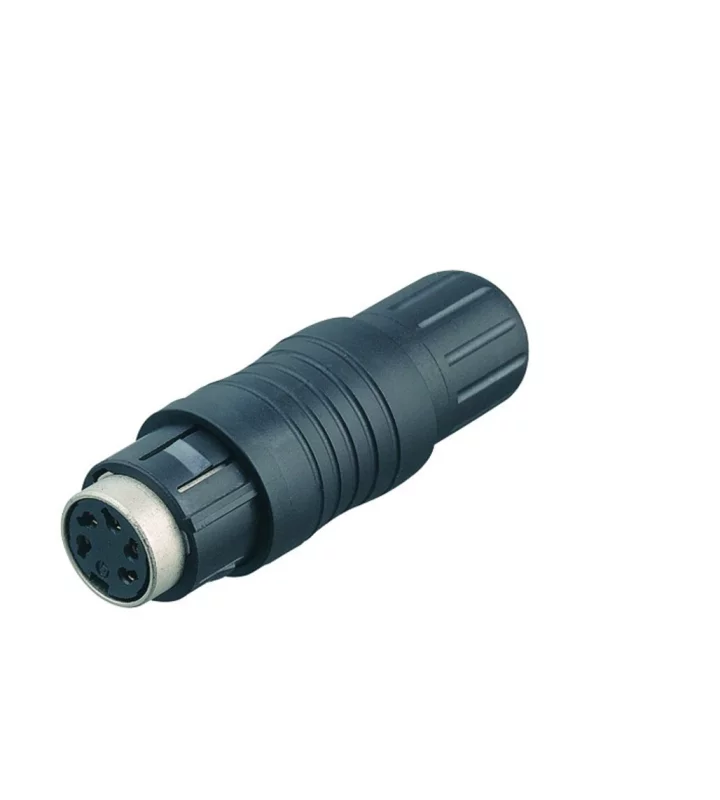

Female cable connector
Shieldable
99 4830 00 08
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Miniature |
|---|---|
| Subseries | 440 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Push-Pull |
| Mating cycles | >1000 |
| Connector Diameter | 20 mm |
| Cable outlet | 4-8 mm |
| Wire-section | 0.75 mm² |
| Remark* | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 60 (32) V |
| Impuls voltage | 500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 (2)* |
| Overvoltage categorie | I (II)* |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | PA GF 25 (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|
| 99 4806 00 03 | >5 - ≤10 A | 3 | 250 (32) V | 1500 V | >200 - ≤400 V | 0.75 mm² |
| 99 4810 00 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | >200 - ≤400 V | 0.75 mm² |
| 99 4814 00 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | >200 - ≤400 V | 0.75 mm² |
| 99 4818 00 06 | ≤5 A | 6 | 125 (32) V | 800 V | ≤200 V | 0.75 mm² |
| 99 4826 00 07 | ≤5 A | 7 | 125 (32) V | 800 V | ≤200 V | 0.75 mm² |
| 99 4834 00 12 | ≤5 A | 12 | 60 (32) V | 500 V | ≤200 V | 0.25 mm² |
| 99 4838 00 14 | ≤5 A | 14 | 60 (32) V | 500 V | ≤200 V | 0.25 mm² |
| 99 4842 00 19 | ≤5 A | 19 | 60 (32) V | 500 V | ≤200 V | 0.25 mm² |
